DS-2DF6231-CX(T5/316L)

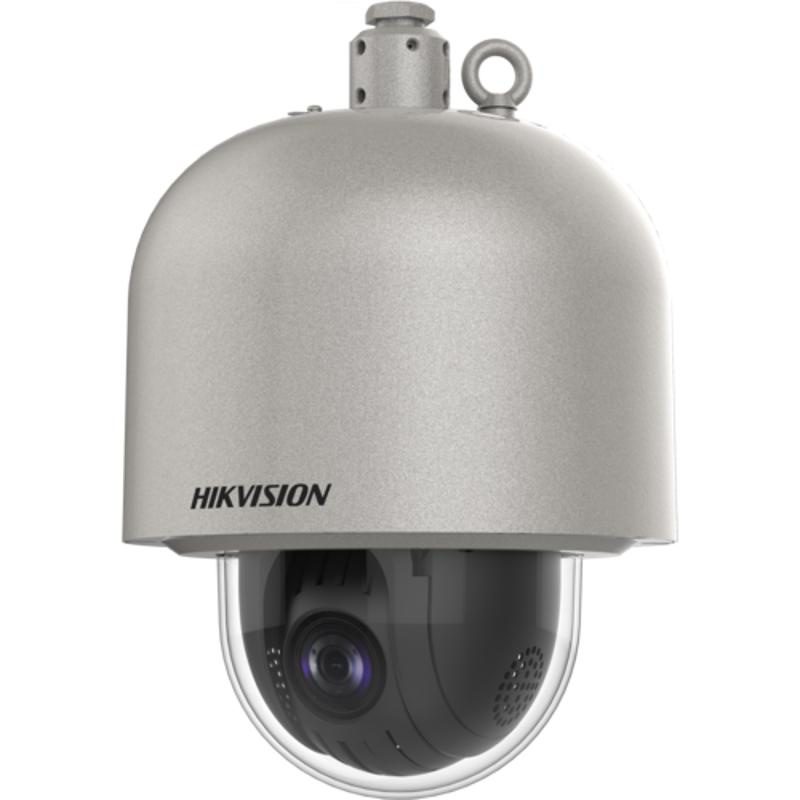

6-inch 32x Explosion-proof Network Speed Dome

High quality imaging with 2 MP resolution
1/1.8" progressive scan CMOS
Min. illumination：Color: 0.0005 Lux @(F1.5, AGC ON) B/W: 0.0001 Lux @(F1.5, AGC ON)
31× optical zoom, focal length 5.9 mm to 182.9 mm
Efficient H.265+/H.265 compression technology
Water and dust resistant (IP68)
3D DNR and low bitrate technology delivers clean and sharp images
Clear imaging against strong back light due to 120 dB true WDR technology

Available models:

DS-2DF6231-CX(T5/316L)

Camera
Image Sensor1/1.8" progressive scan CMOS
Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON) B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed1/1 s to 1/30,000 s
Slow Shutteryes
Day & NightIR Cut Filter
Day/Night Switchauto
BLCyes
WDR120 dB
Focussemi-auto,manual,auto
HLCyes
3D DNRyes
Defogyes
EISyes
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
Image Parameters Switchyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
Digital Zoom16x
Optical Zoom31 ×
Privacy Maskup to 24 masks
SNR＞52dB
General Functionmirror;password protection;watermark;IP address filter
Gain Controlauto;manual

Lens
Focal Length5.9 mm to 182.9 mm, 31 × optical zoom
Zoom SpeedApprox. 5.6 s (Optical Lens, Wide-Tele)
FOVHorizontal field of view: 58.5° to 2.4° (wide-tele) Vertical field of view: 34° to 1.3° (wide-tele) Diagonal field of view: 65.8° to 2.7° (wide-tele)
Aperture F1.5

PTZ
Movement Range (Pan) 360° endless
Movement Range (Tilt)From 0° to 90° (Auto Flip)
Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memoryyes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected

Video
Max. Resolution1920 × 1080
Stream Typemain stream;sub-stream;third stream
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720);
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio
Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit rateG.722.1: 16Kbps,G.711ulaw: 64Kbps, G.711alaw: 64Kbps,MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;
Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz
Environment Noise Filteringyes

Smart Features
Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart EncodingH.265+;H.264+;low bit rate;ROI;SVC
Smart Trackingmanual tracking,event tracking
Smart RecordANR, Dual-VCA

Network
Network StorageNAS (NFS, SMB/ CIFS);ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended API;Open Network Video Interface; ISAPI;Hikvision SDK;Third-party management platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Interface
On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
Alarm Input7 alarm inputs
Alarm Output2 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

Deep Learning Function
Face Capture1. Detects up to 10 faces simultaneously 2. Uploads face with background and closed-up face pictures 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General
DimensionsΦ 281 mm × 405 mm（Φ 11" × 15.9")
Power100 VAC to 240 VAC, Max.: 60 W
Operating ConditionsTemperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%
MaterialSUS316L with anti-corrosion surface spray treatment
22 kg (48.52 lb.)
Ex-markATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
ProtectionIP68, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Camera

Image Sensor1/1.8" progressive scan CMOS
Min. IlluminationColor: 0.0005 Lux @ (F1.5, AGC ON) B/W: 0.0001 Lux @ (F1.5, AGC ON)
Shutter Speed1/1 s to 1/30,000 s
Slow Shutteryes
Day & NightIR Cut Filter
Day/Night Switchauto
BLCyes
WDR120 dB
Focussemi-auto,manual,auto
HLCyes
3D DNRyes
Defogyes
EISyes
Regional Exposureyes
Regional Focusyes
Image Settingssaturation;brightness;contrast;sharpness
Image Parameters Switchyes
White Balanceauto;ATW;sodium lamp;fluorescent lamp;indoor;outdoor;MWB;Locked WB
Digital Zoom16x
Optical Zoom31 ×
Privacy Maskup to 24 masks
SNR＞52dB
General Functionmirror;password protection;watermark;IP address filter
Gain Controlauto;manual

Lens

Focal Length5.9 mm to 182.9 mm, 31 × optical zoom
Zoom SpeedApprox. 5.6 s (Optical Lens, Wide-Tele)
FOVHorizontal field of view: 58.5° to 2.4° (wide-tele) Vertical field of view: 34° to 1.3° (wide-tele) Diagonal field of view: 65.8° to 2.7° (wide-tele)
Aperture F1.5

PTZ

Movement Range (Pan) 360° endless
Movement Range (Tilt)From 0° to 90° (Auto Flip)
Pan SpeedConfigurable, from 0.1°/s to 300°/s, preset speed: 540°/s
Tilt SpeedConfigurable, from 0.1°/s to 240°/s, Preset Speed: 400°/s
Proportional Zoomyes
Presets300
Patrol Scan8 patrols, up to 32 presets for each patrol
Pattern Scan4 pattern scans, record time over 10 minutes for each scan
Power-off Memoryyes
Park ActionPreset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan
3D Positioningyes
PTZ Status Displayyes
Preset Freezingyes
Scheduled Taskpreset;pattern scan;patrol scan;auto scan;tilt scan;random scan;frame scan;panorama scan;dome reboot;dome adjust;aux output
Exception DetectionIP address conflict, HDD full, illegal login, HDD error, network disconnected

Video

Max. Resolution1920 × 1080
Stream Typemain stream;sub-stream;third stream
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720);
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video Bit Rate32 kbps to 16384 kbps
H.264 Typebaseline profile;main profile;high profile
H.265 Typemain profile
H.264+yes
H.265+yes
SVCyes
ROIyes

Audio

Audio CompressionG.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Bit rateG.722.1: 16Kbps,G.711ulaw: 64Kbps, G.711alaw: 64Kbps,MP2L2: 32 kbps, 40 kbps, 48 kbps, 56 kbps, 64 kbps, 80 kbps, 96 kbps, 112 kbps, 128 kbps, 144 kbps, 160 kbps, 192 kbps;
Audio Sampling RateMP2L2: 16kHz, 32kHz, 48kHz,PCM: 8kHz, 16kHz,32kHz, 48kHz
Environment Noise Filteringyes

Smart Features

Basic Eventmotion detection;video tampering alarm;alarm input;alarm output;exception
Smart Eventintrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm LinkageAlarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc.
Smart EncodingH.265+;H.264+;low bit rate;ROI;SVC
Smart Trackingmanual tracking,event tracking
Smart RecordANR, Dual-VCA

Network

Network StorageNAS (NFS, SMB/ CIFS);ANR
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIOpen-ended API;Open Network Video Interface; ISAPI;Hikvision SDK;Third-party management platform
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
Security MeasuresUser authentication (ID and PW), Host authentication (MAC address); HTTPS encryption; IEEE 802.1x port-based network access control; IP address filtering
ClientiVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect
Web BrowserIE11, Chrome 57.0+, Firefox 52.0+, Safari 11+

Interface

On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
RS-485HIKVISION, Pelco-P, Pelco-D, self-adaptive
Communication InterfaceRJ45, self-adaptive 10M/100M Ethernet port
Alarm Input7 alarm inputs
Alarm Output2 alarm output
Audio Input1 audio input, 2.0 to 2.4Vp-p, 1k Ohm±10%
Audio Output1 audio output, line level, impedance: 600 Ω

Deep Learning Function

Face Capture1. Detects up to 10 faces simultaneously 2. Uploads face with background and closed-up face pictures 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General

DimensionsΦ 281 mm × 405 mm（Φ 11" × 15.9")
Power100 VAC to 240 VAC, Max.: 60 W
Operating ConditionsTemperature: -40°C to 60°C (-40°F to 140°F)，Humidity: ≤ 95%
MaterialSUS316L with anti-corrosion surface spray treatment
22 kg (48.52 lb.)
Ex-markATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db

Approval

EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
ProtectionIP68, 4000V Lightning Protection, Surge Protection and Voltage Transient Protection

Data Sheet

Quick Start Guide

User Manual

Firmware

Firmware_V5.7.2_211009

PTZ Camera 5.7.2 Release Note --H8.pdf

Applied to:

DS-2DF6231-CX(T5/316L)
