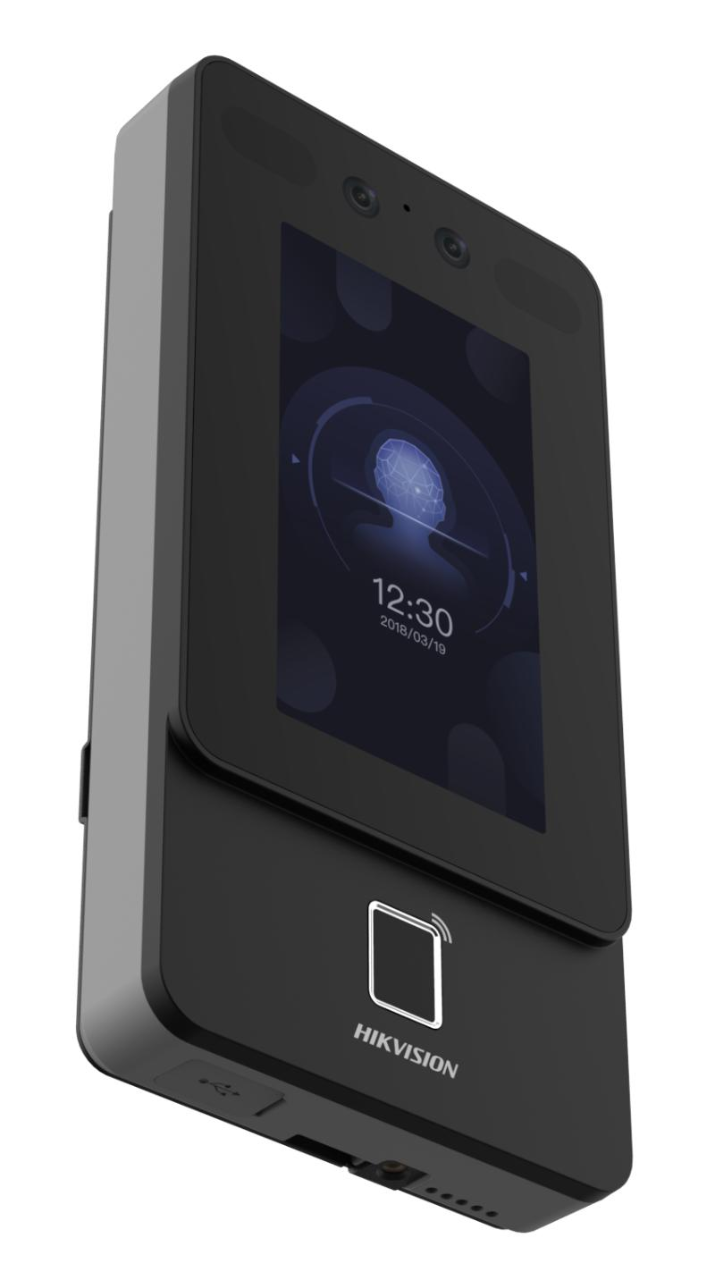

Value Series Face Access Terminal

  • Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
  • Face Recognition Terminal, 4.3-inch LCD touch screen,2 Mega pixel wide-angle lens,Built-in Mifare card reading module
  • Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
  • Supports ISAPI, ISUP5.0
  • Configuration via the web client
  • Face Recognition Distance: 0.3 m to 1.5 m
  • Duration < 0.2 s/User
  • Accuracy rate ≥ 99%
  • Supports mask recognition

Available models:

DS-K1T342MFWX

Specification

  • System
  • Operation systemLinux
  • Display
  • Dimensions4.3-inch
  • Resolution272 × 480
  • TypeLCD
  • Operation methodCapacitive touch screen
  • Video
  • Pixel2 MP
  • Lens× 2
  • Video standardPAL (Default) and NTSC
  • Network
  • Wired network10 M/100 M self-adaptive
  • Wi-FiSupport
  • Interface
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • IO input-
  • IO output-
  • TAMPER1
  • USB1
  • Capacity
  • Card capacity3,000
  • Face capacity1,500
  • Fingerprint capacity3,000
  • Event capacity150,000
  • Authentication
  • Card typeMifare 1 card
  • Card reading frequency13.56 MHz
  • Face recognition duration< 0.2 s
  • Face recognition accuracy rate>99%
  • Face recognition distance0.3 to 1.5 m
  • Fingerprint recognition duration<1 s
  • Function
  • Face anti-spoofingSupport
  • Audio promptSupport
  • Time synchronizationSupport
  • General
  • Power supply12 VDC/1 A (power adapter included)
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (No condensing)
  • Dimensions91.3 mm × 181.3 mm × 24.5 mm (3.59" × 7.14" × 0.96")
  • InstallationWall Mounting
  • Protective levelIP65
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Korean

Specification

Firmware
Applied to:
DS-K1T342MFWX
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
