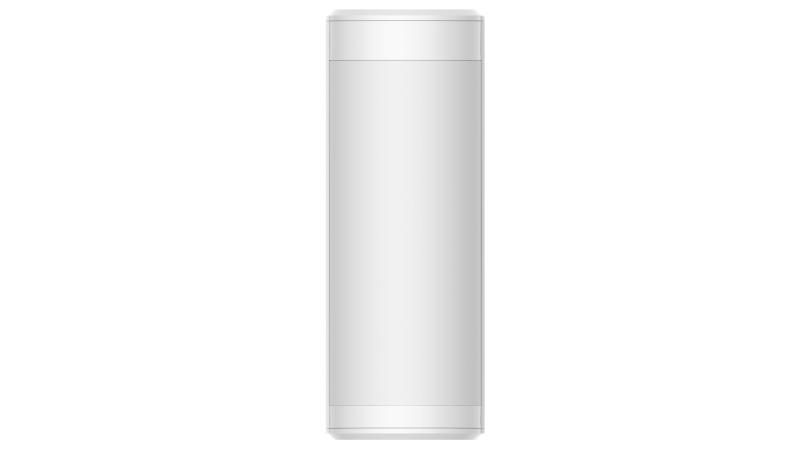

Wireless Tri-Tech AM Detector

  • · 90°@180° adjustable coverage
  • · IP65 weather resistance for outdoor application
  • · Active IR anti-masking
  • · Multiple enrollment methods and easy installation
  • · Frequency hopping against jamming for reliable transmission

Available models:

DS-PDTT15AM-LM-WE
DS-PDTT15AM-LM-WE

Specification

  • Detection Performance
  • Detection MethodPassive Infrared;Microwave
  • Detection Range15m
  • Detection Angle90° @ 180° adjustable
  • Detection Zones92
  • Detectable Speed0.3~2m/s
  • SensitivityAuto;Low
  • White Light Filter10000lux
  • Microwave Frequency24GHz(24.15~24.25GHz)
  • Pet Immunity40Kg
  • Digital Temperature CompensationSupport
  • Anti-maskingSupport
  • Adaptable CoverageSupport Pattern mask included
  • Feature
  • Digital ProcessingTri-Signal Logic
  • Sealed OpticsSupport
  • Tamper ProtectionFront;Rear
  • Environment Temperature IndicatorSupport
  • Signal Strength IndicatorSupport
  • Anti-Sway AnalyticsSupport
  • Interface
  • Power SwitchPower Up Enrolling
  • LED IndicatorGreen(Top PIR), Red(Microwave), Orange(Bottom PIR), Green+Orange(Mask), Blue(Alarm)
  • Transmission
  • Transmission TechnologyTri-X Wireless
  • Transmission MethodTwo-Way RF Wireless
  • Transmission Frequency868MHz
  • Transmission SecurityAES-128 Encryption
  • Transmission Range(Free Space)1.6Km
  • Frequency HoppingSupport
  • Enrolling MethodPower up;Remote ID;QR Code
  • Electrical Characteristics
  • Standard Battery Life5 years in work status (Standalone:being triggered 20 times per day) (With camera integrated:being triggered and completely uploading captures once per day)
  • Power SupplyBattery Powered
  • Battery TypeCR123A × 5
  • Typical Voltage3V
  • General
  • Operation Temperature-25 °C to 60 °C (-13 °F to 140 °F)
  • Storage Temperature-25 °C to 60 °C (-13 °F to 140 °F)
  • Operation Humidity10% to 90%
  • IP RateIP65
  • Dimension(WxHxD)75mm × 202mm × 73mm
  • 600g
  • Mounting Height0.8 to 1.2m
  • Mounting MethodWall
  • Application ScenarioOutdoor
