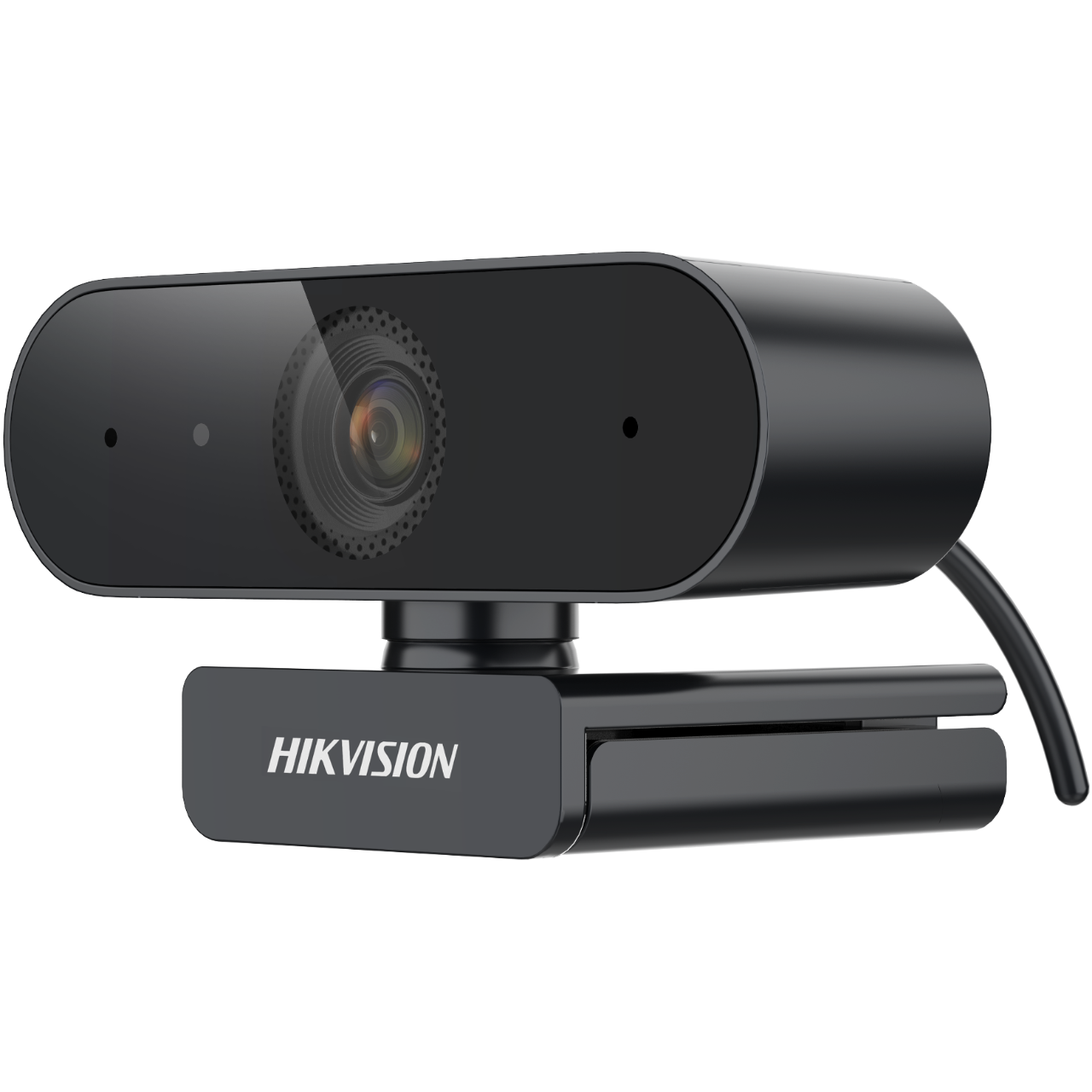

2MP Web Camera

  • 2 MP CMOS
  • High quality imaging with 1920 × 1080 resolution
  • Min. illumination: 0.1 Lux @ (F1.2, AGC ON)
  • AGC for self-adaptive brightness
  • Built-in microphone with clear sound
  • Type A interface, supporting USB 2.0 protocol. Plug-and-play, no need to install driver software
  • Support auto focus

Available models:

DS-U02P

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Signal SystemPAL/NTSC
  • Resolution1920 (H) × 1080 (V)
  • Frame RateMJPG: 1920 × 1080 @ 30/25 fps 1280 × 960 @ 30/25 fps 1280 × 720 @ 30/25 fps 640 × 480 @ 30/25 fps 640 × 360 @ 30/25 fps YUV: 1920 × 1080 @ 5 fps 1280 × 960 @ 5 fps 1280 × 720 @ 5 fps 640 × 480 @ 30 fps 640 × 360 @ 30 fps
  • Min. Illumination0.1 Lux @ (F1.2, AGC ON)
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Lens3.6 mm fixed focal lens
  • Field of Viewhorizontal FOV: 80°, vertical FOV: 50°, diagonal FOV: 88°
  • Lens MountM8
  • Day & Night24/7 Color Imaging
  • Angle Adjustmentpan: 360°; tilt: -15° to 15°; ratation: 0°
  • Cable Length1.5 m
  • Depth of Field0.5 m to ∞
  • Audio
  • Audio Sampling Rate16 kHz
  • Interface
  • Video OutputUSB 2.0
  • Audio InBuilt-in mic
  • Operating SystemWindows 7/10, Android, Linux, macOS
  • General
  • Operating Conditions-10 °C to 45 °C, Humidity: 90% or less (non-condensing)
  • Power SupplyDC5 V ± 5% (USB)
  • ConsumptionMax. 1.6 W
  • Dimension80.16 mm × 48.6 mm × 42.18 mm (3.16" × 1.91" × 1.66")
  • Approx. 93 g (0.2 lb.)
  • Accessory
  • Packing ListCamera × 1 Quick Start Guide × 1

Specification

Firmware
Applied to:
DS-U02P
