IP Video Intercom Kit

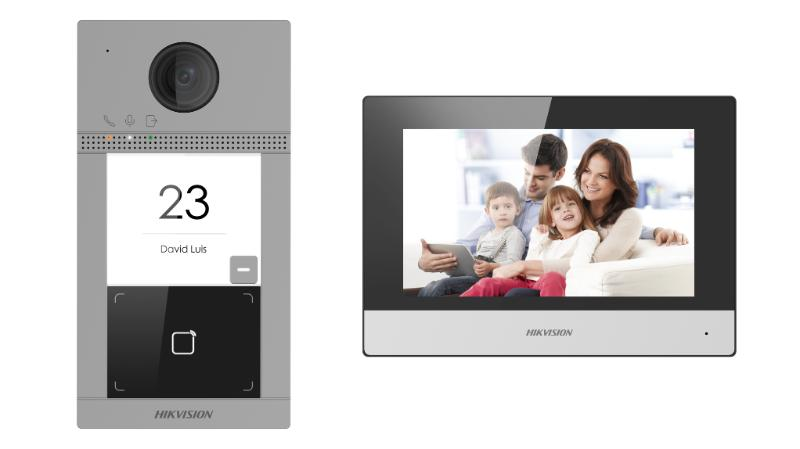

  • IP video intercom kit for villa or house, only one call button;
  • DS-KV8113-WME1 x1;
  • DS-KH6320-WTE1 x1;
  • PSU x2(-P modle) x1;
  • 16GB TF card x1;
  • POE switch(-S modle) x1;

Available models:

DS-KIS604-S(B)

Specification

  • Door station/System parameters
  • Operation systemEmbedded Linux operation system
  • Flash32 MB
  • RAM128 MB
  • Door station/Video parameters
  • Camera2MP HD camera
  • Night visionLow illumination IR supplement mode:3 m
  • Backlight compensationSupport
  • Digital noise reductionSupport
  • WDRTrue WDR
  • Field of viewHorizontal: 129° Vertical: 75°
  • Video Compression StandardH.264
  • StreamMain stream: 1080p@30fps, 720p@25fps Sub stream: D1@25fps
  • Motion detectionSupport
  • Flash-avoid frequency50 Hz, 60 Hz
  • Door station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Audio intercomTwo-way audio communication
  • Door station/Network parameters
  • Network protocolTCP/IP, RSTP
  • Wired network10/100 Mbps Ethernet
  • Door station/Device interfaces
  • RS-485 1
  • Alarm input4
  • Debugging port1
  • Grounding1
  • TAMPER switch1
  • Door station/General
  • Power consumption＜ 10 W
  • Working temperature-40° C to 53° C(-40° F to 127.4° F)
  • Working humidity10% to 95%
  • Dimension174 mm × 91 mm × 29 mm
  • InstallationSurface mounting
  • Protection level IP65, IK08
  • Indicator3
  • Power supplyIEEE802.3af, standard PoE 12 VDC
  • Indoor station/System parameters
  • Operation systemEmbedded Linux operation system
  • Memory128 MB
  • Flash 32 MB
  • Indoor station/Display parameters
  • Display screen7-inch colorful TFT screen
  • Display resolution1024 × 600
  • Operation methodCapacitive touch screen
  • Indoor station/Audio parameters
  • Audio inputBuilt-in omnidirectional microphone
  • Audio outputBuilt-in loudspeaker
  • Audio qualityNoise suppression and echo cancellation
  • Audio compression standardG.711 U
  • Audio compression Rate64 Kbps
  • Indoor station/Network parameters
  • Wired network 10/100 Mbps self-adaptive
  • Wireless networkWi-Fi 802.11 b/g/n
  • ProtocolTCP/IP, SIP, RTSP
  • RS-4851 RJ-45 10/100 Mbps self-adaptive
  • Indoor station/Device interfaces
  • RS-4851
  • Alarm input8-ch alarm inputs
  • Relay output2
  • TF cardMax to 32 G, SD 2.0 or lower version
  • Indoor station/General
  • Power consumption≤ 6 W
  • Working temperature-10 °C to 55 °C (14 °F to 131 °F)
  • Working humidity10% to 90%
  • Dimension (L x W x H)200 mm × 140 mm × 15.1 mm (7.9" × 5.5" × 0.6")
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.
Firmware
Firmware_V2.2.53_220108
Firmware_V2.1.34_211118
2nd Gen Indoor Station Firmware V2.1.34_211118 Release Note.pdf
Applied to:
DS-KIS604-S(B)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
