DS-K3B802X

NEW

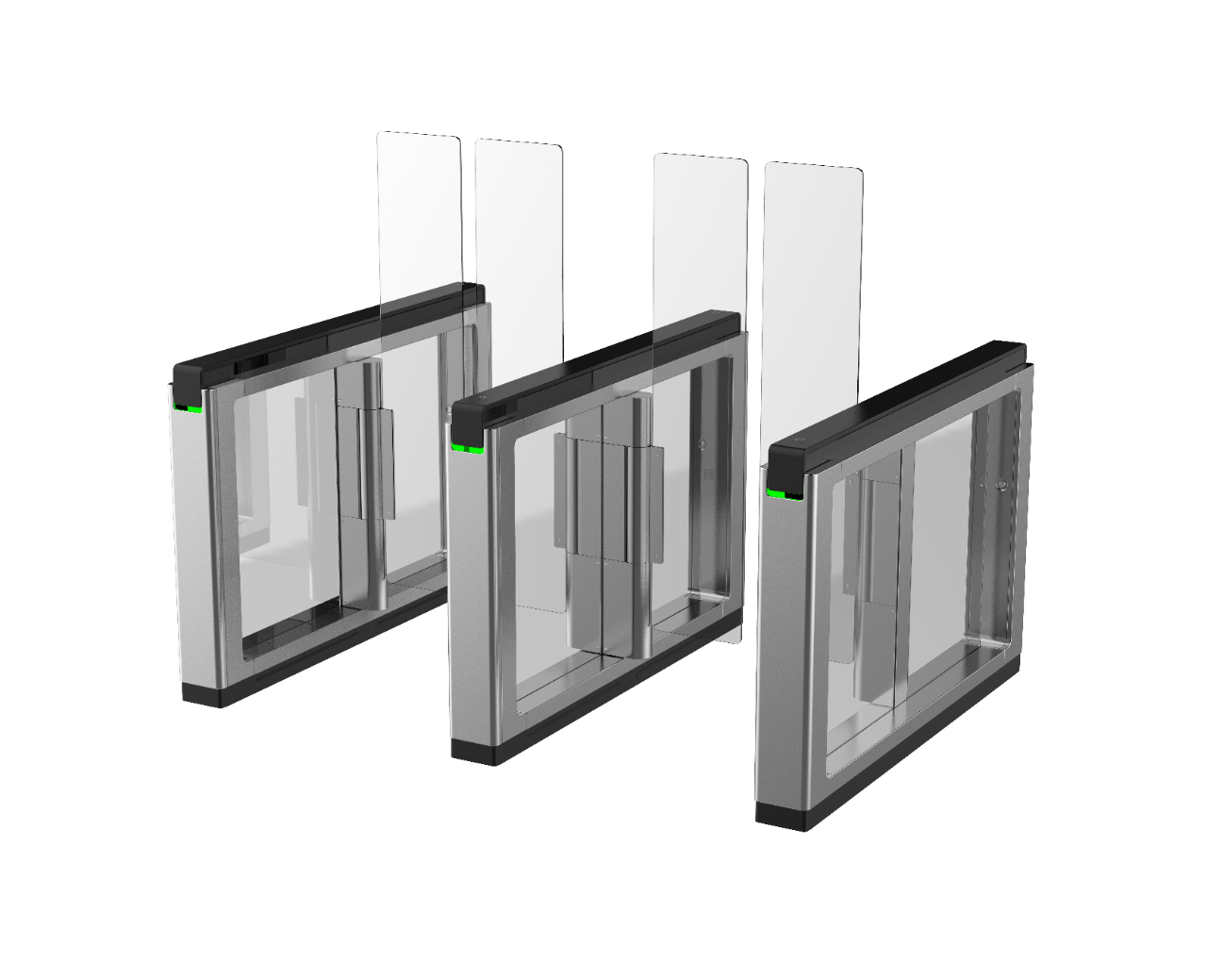

Ultra Series Swing Barriers

Built-in card reader and access controller.
The barrier will be locked or stop working when people are nipped.
Self-detection, Self-diagnostics, and automatic alarm.
Fire alarm passing: When the fire alarm is triggered, the barrier will be open automatically for emergency evacuation.
Audible and visual alarm will be triggered when detecting intrusion, tailgating, reverse passing, climbing over barrier, and overstay.
The barrier's material is high-strength tampered glass, sticked with film, which will not cause injury when the glass is broken.

Available models:

DS-K3B802X-L/M-Dg65H16

DS-K3B802X-M/M-Dg65H16

DS-K3B802X-R/M-Dg65H16

DS-K3B802X-L/MPg-Dg65H16

DS-K3B802X-M/MPg-Dg65H16

DS-K3B802X-R/MPg-Dg65H16

DS-K3B802X-L/M-Dg75H16

DS-K3B802X-M/M-Dg75H16

DS-K3B802X-R/M-Dg75H16

DS-K3B802X-L/MPg-Dg75H16

DS-K3B802X-M/MPg-Dg75H16

DS-K3B802X-R/MPg-Dg75H16

DS-K3B802X-L/M-Dg90H16

DS-K3B802X-M/M-Dg90H16

DS-K3B802X-R/M-Dg90H16

DS-K3B802X-L/MPg-Dg90H16

DS-K3B802X-M/MPg-Dg90H16

DS-K3B802X-R/MPg-Dg90H16

DS-K3B802X-M/MPgQ-Dg65H16

DS-K3B802AX-M/MPg-Dg65H16

DS-K3B802AX-L/MPg-Dg65H16

DS-K3B802AX-R/MPg-Dg65H16

DS-K3B802X-L/M-Dg65H12

DS-K3B802X-M/M-Dg65H12

DS-K3B802X-R/M-Dg65H12

General
Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method
IR light detectors24 pairs
Distance between Barrier and Ground1.2 m;1.4 m;1.6 m;1.8 m
Lane width650 mm to 900 mm(25.6'' to 35.43'')
Barrier materialTempered glass (8mm)
Pedestal materialSUS304 stainless steel with the thickness of 2 mm (0.08")
Power supply100 to 240 VAC; 50 to 60 Hz
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 95% (No Condensing)
DimensionsWith packaging: 1670 mm × 490 mm × 1180 mm (65.8" × 19.3" × 46.5") Without packaging: 1500 mm × (160+64.5)mm × 1010 mm (59.1" × 8.84" × 39.8")
With packaging: Left and right pedestal: 153.2 kg (337.7 lbs) Middle pedestal: 170.5 kg (375.9 lbs) Without packaging: Left and right pedestal: 99.4 kg (219.1 lbs) Middle pedestal: 116.8 kg (257.5 lbs)
Application environmentIndoor
ApprovalCE/FCC/CB/RoHS/REACH/WEEE

Throughput30 to 60 persons per minute The actual throughput is affected by the person passing rate and passing method
IR light detectors24 pairs
Distance between Barrier and Ground1.2 m;1.4 m;1.6 m;1.8 m
Lane width650 mm to 900 mm(25.6'' to 35.43'')
Barrier materialTempered glass (8mm)
Pedestal materialSUS304 stainless steel with the thickness of 2 mm (0.08")
Power supply100 to 240 VAC; 50 to 60 Hz
Working temperature-10 °C to 55 °C (14 °F to 131 °F)
Working humidity10% to 95% (No Condensing)
DimensionsWith packaging: 1670 mm × 490 mm × 1180 mm (65.8" × 19.3" × 46.5") Without packaging: 1500 mm × (160+64.5)mm × 1010 mm (59.1" × 8.84" × 39.8")
With packaging: Left and right pedestal: 153.2 kg (337.7 lbs) Middle pedestal: 170.5 kg (375.9 lbs) Without packaging: Left and right pedestal: 99.4 kg (219.1 lbs) Middle pedestal: 116.8 kg (257.5 lbs)
Application environmentIndoor
ApprovalCE/FCC/CB/RoHS/REACH/WEEE
