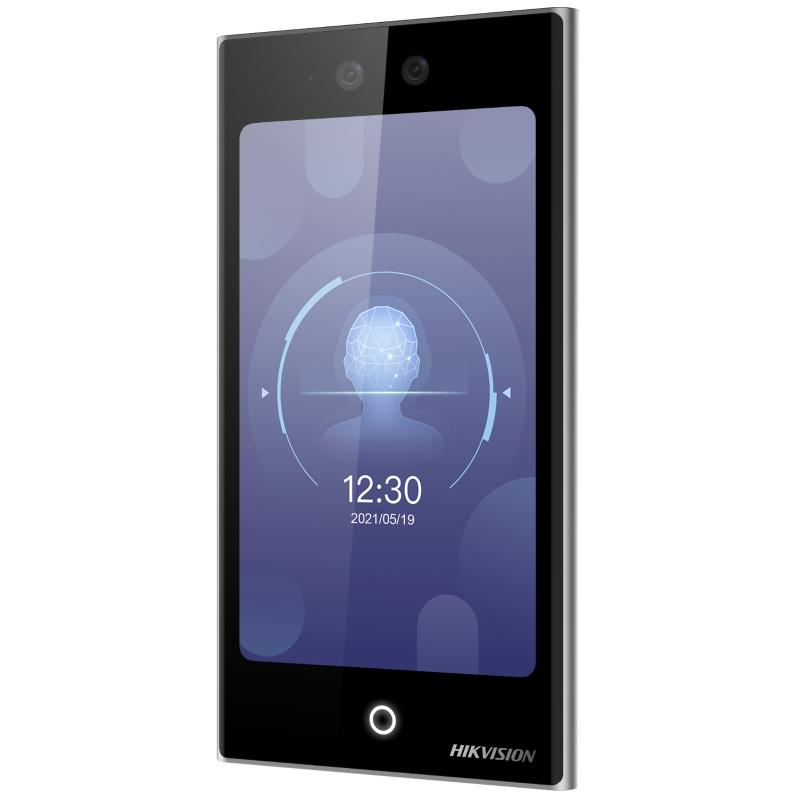

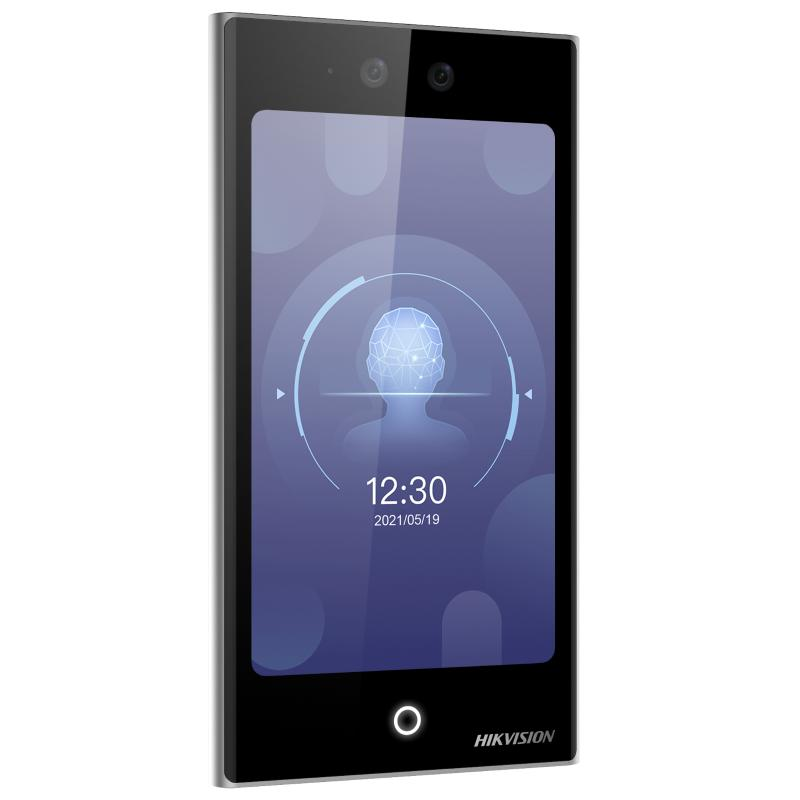

Ultra Series Face Access Terminal

  • 7-inch LCD touch screen,2 Mega pixel wide-angle lens
  • Recognition distance: 0.3 to 3 m
  • Face recognition duration ＜ 0.2 s/User
  • Face recognition accuracy rate ≥ 99%
  • Built-in Mifare card, Felica card, and DESfire card reading module (Presents card on the screen to authenticate)
  • Face mask detection
  • 100,000 face capacity, 10,000 fingerprint capacity (With fingerprint module), 500,000 card capacity, and 150,000 event capacity
  • Supports ISAPI, ISUP 5.0, TCP/IP (IPv4 and IPv6)
  • Supports single person and multiple people (Up to 5 people) recognition

Available models:

DS-K1T673TDWX

Specification

  • System
  • Operation systemLinux
  • Display
  • Size7-inch
  • TypeTouch screen
  • Video
  • Pixel2 MP
  • LensDual-lens
  • Video standardPAL (Default)/NTSC
  • Network
  • Wired networkSupport 10/100/1000 Mbps self-adaptive
  • Wi-FiSupport
  • Interface
  • USB1 (For Module)
  • Audio Output Interface1 (3.5 mm)
  • Network interface1
  • RS-4851
  • Wiegand1
  • Lock output1
  • Exit button1
  • Door contact input1
  • TAMPER1
  • Capacity
  • Card capacity500,000
  • Face capacity100,000
  • Event capacity150,000
  • Authentication
  • Face recognition accuracy rate≥ 99%
  • Card typeMifare 1 card, DESfire card, Felica card
  • Card reading distance0 to 3 cm
  • Card reading duration＜ 1 s
  • Face recognition duration＜ 0.2 s per person
  • Face recognition distance0.3 to 3 m
  • Function
  • Two-way audioSupport
  • Time synchronizationSupport
  • Face anti-spoofingSupport
  • Live viewSupport
  • Audio promptSupport
  • General
  • Power supply12 VDC to 24 VDC/2 A
  • Working temperature-30 °C to 60 °C (-22 °F to 140 °F)
  • Working humidity0 to 90% (no condensing)
  • Protective levelIP65
  • Dimensions110.5 mm × 209.2 mm × 24 mm (4.35" × 8.24" × 0.94")
  • LanguageEnglish, Spanish (South America), Arabic, Thai, Indonesian, Russian, Vietnamese, Portuguese (Brazil), Japanese, Korean
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Download Center

Data Sheet

Quick Start Guide

User Manual
Firmware
Firmware_V3.3.1_220120
Applied to:
DS-K1T673TDWX
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
