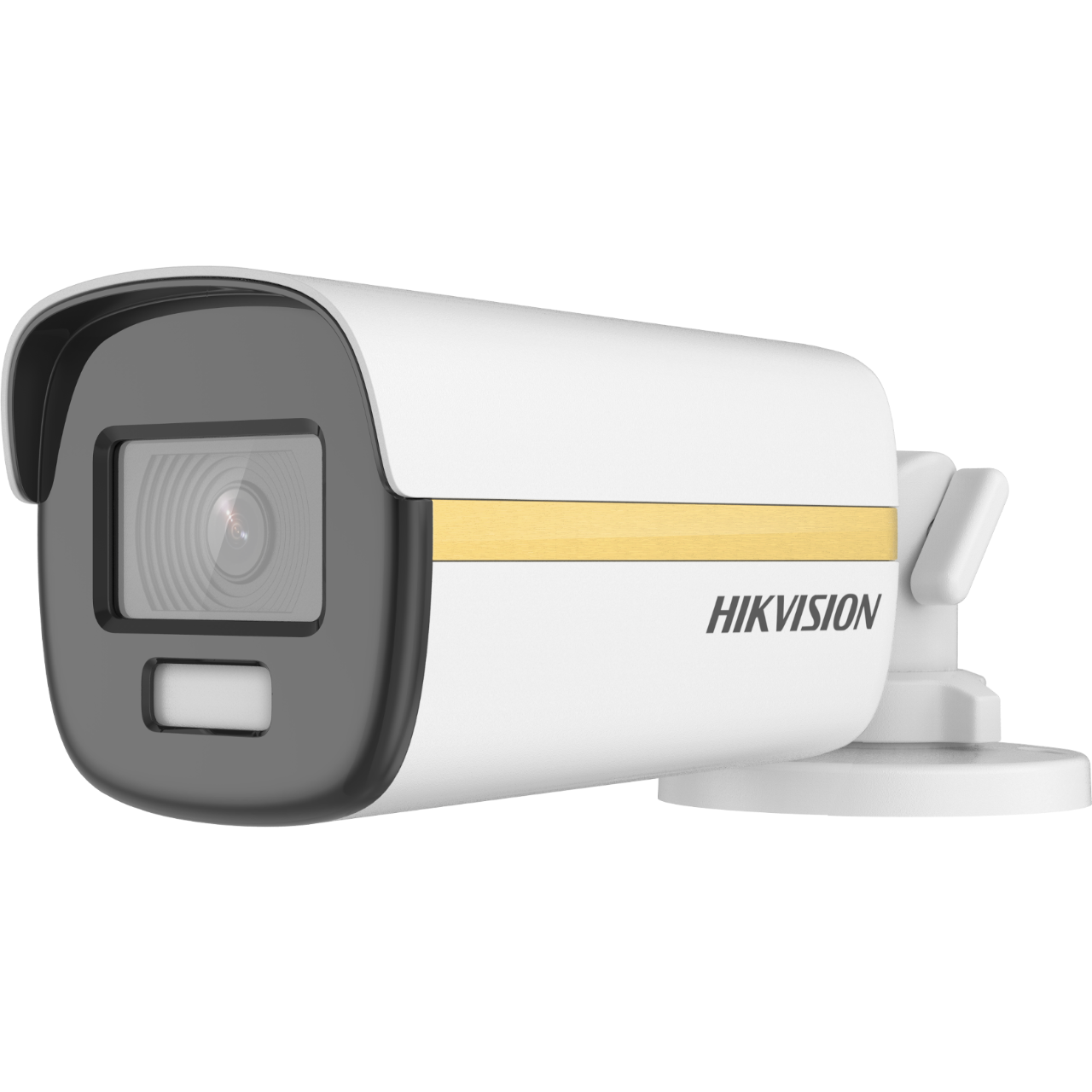

3K ColorVu Fixed Bullet Camera

  • High quality imaging with 3K, 2960 × 1665 resolution
  • Excellent low-light performance
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm and 3.6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)
  • 24/7 color imaging with F1.0 aperture

Available models:

DS-2CE12KF3T(3.6mm)
DS-2CE12KF3T(2.8mm)

Specification

  • Camera
  • Image Sensor1/1.8" 3K CMOS
  • Signal SystemPAL/NTSC
  • Max. Resolution2960 (H) × 1665 (V)
  • Min. Illumination0.0003 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Light AlarmSolid Light Alarm (White Light)
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
  • Lens
  • Lens Type2.8 mm and 3.6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 112°, vertical FOV: 60°, diagonal FOV: 133° 3.6 mm, horizontal FOV: 95°, vertical FOV: 50°, diagonal FOV: 115°
  • Lens MountM16
  • Image
  • Frame Rate3K@20fps, 4MP@25fps/30fps, 1080p@25fps/30fps
  • Wide Dynamic Range (WDR)≥130 dB
  • White LightAuto/Off
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • AGCYes
  • Day/Night ModeColor
  • White BalanceAuto/Outdoor/Global/Manual
  • Image EnhancementWDR;BLC;HLC;HLS;Global
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • Image SettingsAnti-Banding;Smart Light;Brightness;Contrast;Mirror
  • Interface
  • Video Output1 HD analog output
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • LanguageEnglish
  • Operating Condition-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • Power Supply12 VDC ± 25% *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • ConsumptionMax. 5.3 W
  • MaterialMetal
  • White Light RangeUp to 40 m
  • CommunicationHIKVISION-C
  • Dimension194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
  • Approx. 515 g (1.14 lb.)
  • Approval
  • ProtectionIP67
