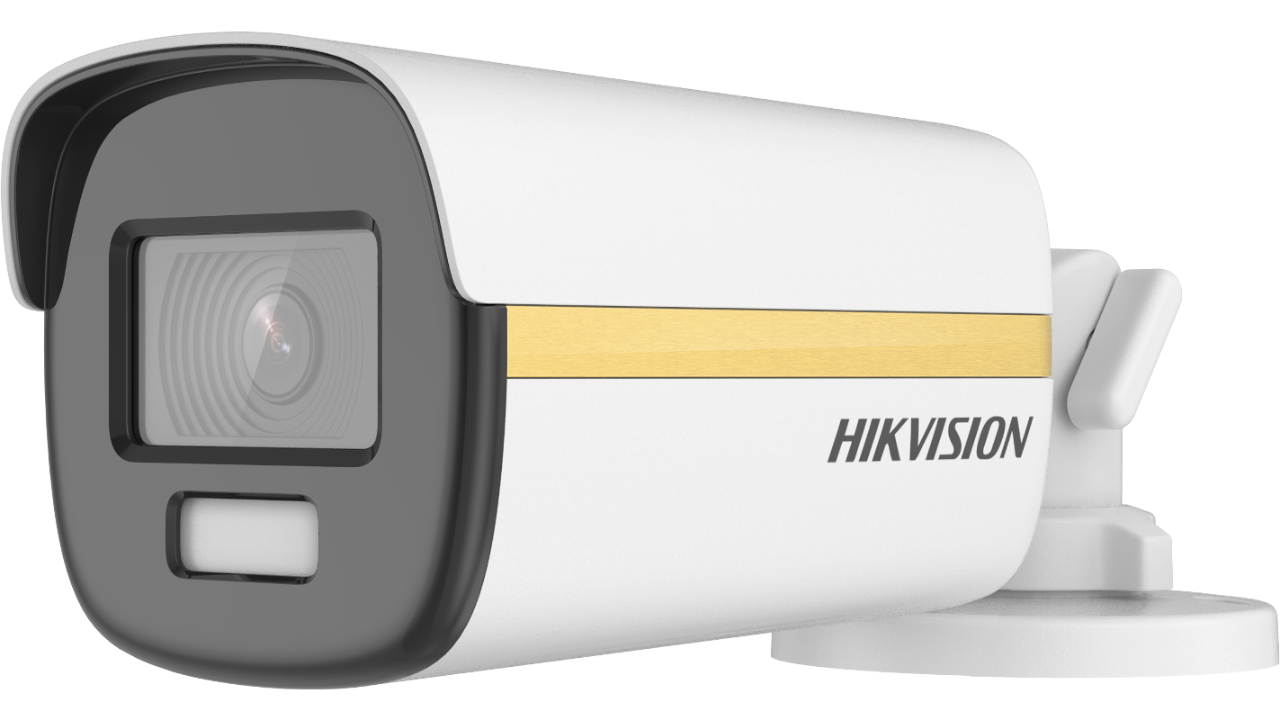

4K ColorVu PoC Fixed Bullet Camera

  • High quality imaging with 8 MP, 3840 × 2160 resolution
  • 24/7 color imaging
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm, 6mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • Water and dust resistant (IP67)

Available models:

DS-2CE12UF3T-E(2.8mm)
DS-2CE12UF3T-E(3.6mm)

Specification

  • Camera
  • Image Sensor8 MP CMOS
  • Signal SystemPAL/NTSC
  • Resolution3840 (H) × 2160 (V)
  • Frame RateTVI: 8 MP @ 12.5 fps/15 fps, 3K @ 20 fps, 1080P @ 25 fps/30 fps
  • Min. Illumination0.0005 Lux@(F1.0, AGC ON), 0 Lux with white light
  • Shutter TimePAL: 1/12.5 s to 1/50,000 s;NTSC: 1/15 s to 1/50,000 s
  • Lens2.8 mm, 3.6 mm, 6mm fixed focal lens
  • Field of View2.8 mm, horizontal FOV: 110°, vertical FOV: 59°, diagonal FOV: 131° 3.6 mm, horizontal FOV: 93°, vertical FOV: 48°, diagonal FOV: 113° 6 mm, horizontal FOV: 57°, vertical FOV: 30°, diagonal FOV: 67°
  • Lens MountM16
  • Light AlarmSolid Light Alarm (White Light)
  • Day & Night24/7 Color Imaging
  • WDR (Wide Dynamic Range)≥130 dB
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotation: 0° to 360°
  • Image
  • White LightAuto/Off
  • Image ModeSTD/HIGH-SAT/HIGHLIGHT
  • AGCYes
  • Day/Night ModeColor
  • White BalanceAuto/Manual
  • AE (Auto Exposure) ModeWDR;BLC;HLC;Global;HLS
  • Privacy Mask4 programmable privacy masks
  • Motion Detection4 programmable motion areas
  • Noise Reduction3D DNR/2D DNR
  • LanguageEnglish
  • FunctionSharpness;Mirror;Brightness;Anti-Banding;Smart Light;Contrast
  • Interface
  • Video Output1 HD analog output
  • General
  • Operating Conditions-40°C to 60°C (-40°F to 140°F), Humidity: 90% or less (non-condensing)
  • Power Supply12 VDC ± 25%/PoC.at *You are recommended to use one power adapter for one camera, and use 2-pin power supply for long-distance power supply.
  • ConsumptionMax. 5.1 W
  • Protection LevelIP67
  • MaterialMetal
  • White Light RangeUp to 40 m
  • CommunicationHIKVISION-C
  • Dimension194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
  • Approx. 566 g (1.25 lb.)
