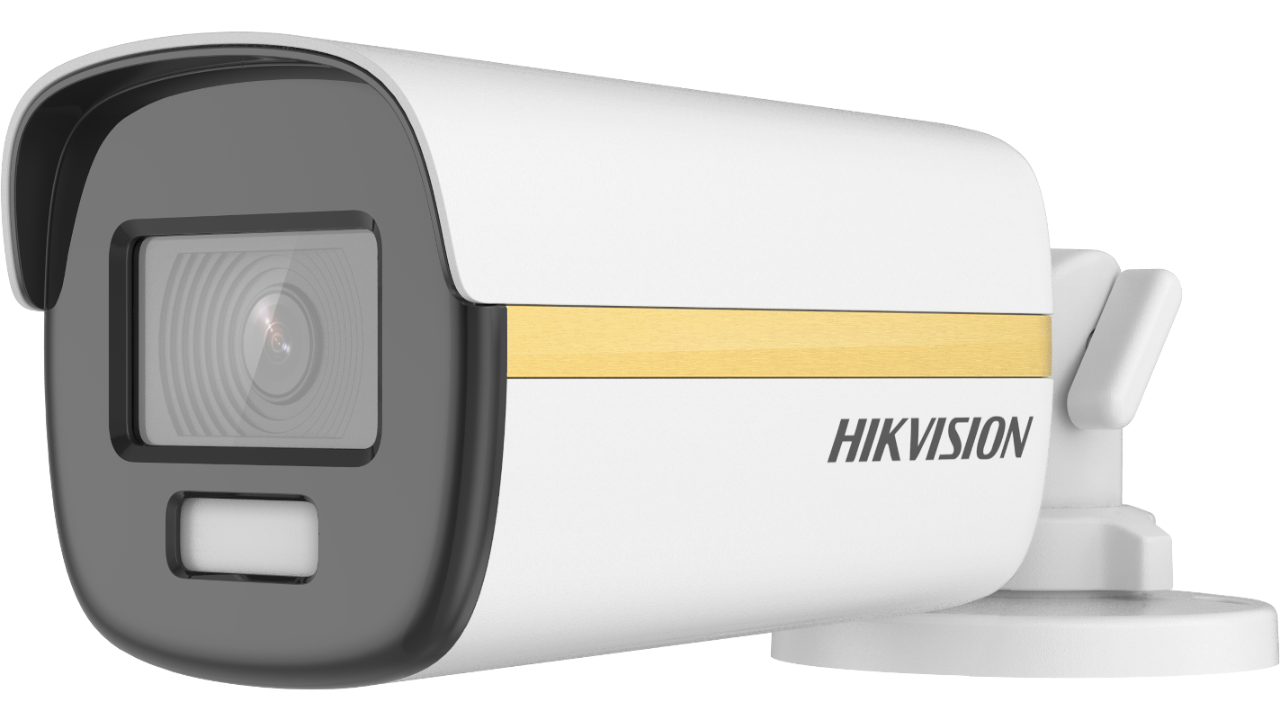

2 MP ColorVu Fixed Bullet Camera

  • High quality imaging with 2 MP, 1920 × 1080 resolution
  • 24/7 color imaging with F1.0 aperture
  • Clear imaging against strong back light due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • 2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Up to 40 m white light distance for bright night imaging
  • One port for four switchable signals (TVI/AHD/CVI/CVBS)
  • Water and dust resistant (IP67)

Available models:

DS-2CE12DF3T-F(2.8mm)
DS-2CE12DF3T-F(3.6mm)

Specification

  • Camera
  • Signal SystemPAL/NTSC
  • Slow ShutterMax. 16 times
  • Light AlarmSolid Light Alarm (White Light)
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOV2.8 mm, horizontal FOV: 98°, vertical FOV: 52°, diagonal FOV: 116° 3.6 mm, horizontal FOV: 77°, vertical FOV: 42°, diagonal FOV: 91° 6 mm, horizontal FOV: 51°, vertical FOV: 28°, diagonal FOV: 59°
  • Lens MountM12
  • Illuminator
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • Supplement Light TypeWhite Light
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT/HIGHLIGHT
  • Image SettingsBrightness, Contrast, Mirror, Defective Pixel Correction, Sharpness, Smart Light, Anti-Banding
  • Frame RateTVI: 1080p@25fps/30fps CVI: 1080p@25fps/30fps AHD: 1080p@25fps/30fps CVBS: PAL/NTSC
  • Day/Night ModeColor
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementBLC, HLC, Global, HLS
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR/2D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video OutputSwitchable TVI/AHD/CVI/CVBS
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • Power12 VDC ± 25%, max. 4.2 W *You are recommended to use one power adapter to supply the power for one camera.
  • MaterialMetal
  • Dimension194.2 mm × 78 mm × 74.5 mm (7.65" × 3.07" × 2.93")
  • Approx. 514.5 g (1.13 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • Approval
  • ProtectionIP67
