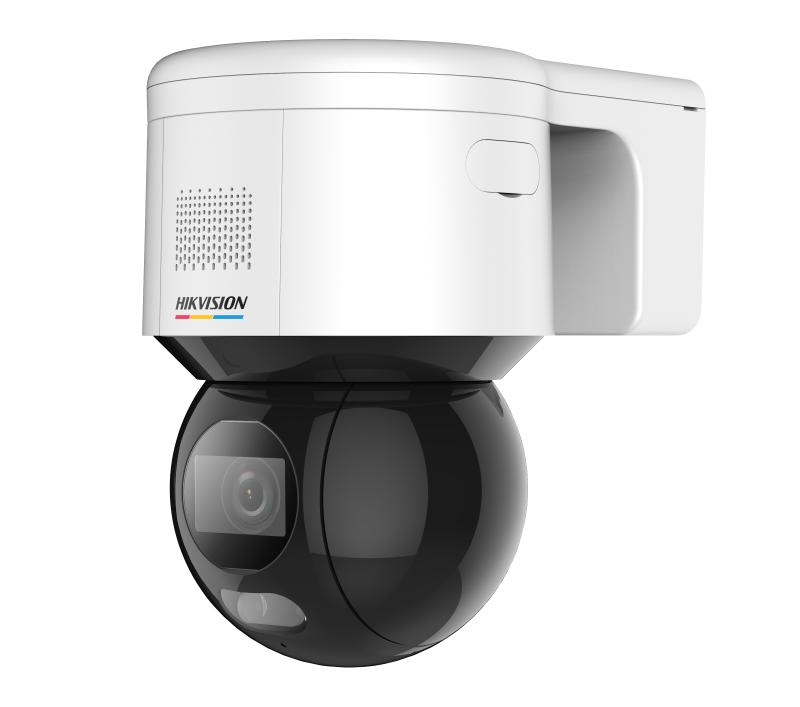

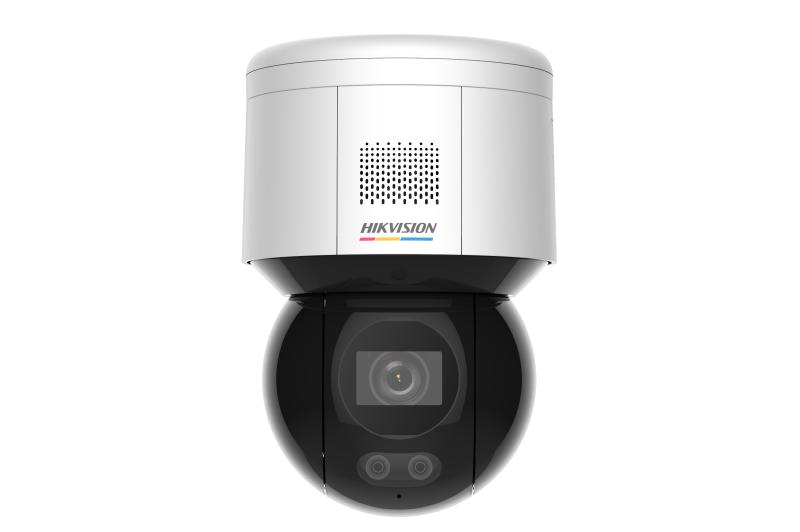

DS-2DE3A400BW-DE(F1)(S5)

3-inch 4 MP ColorVu Network Speed Dome

Focuses on human and vehicle targets classification based on deep learning
Face capture: automatic selection of best shot; up to 5 faces detected and captured at the same time
Linked audible and visual alarm. Built-in microphone and speaker
Up to 2560 × 1440 @ 30 fps
Min. illumination: Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
24/7 colorful imaging with low power consumption. Up to 30 m white light distance
120 dB WDR, 3D DNR, HLC, EIS
IP66; PoE

Available models:

DS-2DE3A400BW-DE(F1)(S5)(B)

Camera
Image Sensor1/1.8" progressive scan CMOS
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light
Shutter Speed1/1 to 1/30,000 s
Day & Night24/7 colorful imaging
Zoom16x digital
Max. Resolution2560 × 1440

Lens
Focal Length4 mm
FOVHorizontal field of view: 88.7° Vertical field of view: 46.5° Diagonal field of view: 105.0°
ApertureF1.0

Illuminator
Supplement Light TypeWhite Light
Supplement Light RangeWhite Light Distance: up to 30 m

PTZ
Movement Range (Pan)350°
Movement Range (Tilt)0° to 90°
Pan SpeedPan speed: configurable from 0.1° to 60°/s; preset speed: 60°/s
Tilt SpeedTilt speed: configurable from 0.1° to 50°/s, preset speed 50°/s
Proportional PanYes
Presets300
Power-off MemoryYes
Park ActionPreset, patrol scan
3D PositioningYes
PTZ Status DisplayYes
Preset FreezingYes
Scheduled TaskPreset, patrol scan, dome reboot, dome adjust, aux output

Video
Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720); 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288); 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288); 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264/MJPEG
Scalable Video Coding (SVC)H.264 and H.265 encoding
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2, AAC, PCM
Environment Noise FilteringYes

Network
Network StorageNAS (NFS, SMB/ CIFS)
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
APIISAPI, Hikvision SDK, Hik-Connect, Open Network Video Interface (Profile S, Profile G, Profile T), ISUP
Simultaneous Live ViewUp to 20 channels
User/HostUp to 32 users. 3 levels: Administrator, Operator and User
SecurityAuthenticated username and password, MAC address binding, HTTPS encryption, 802.1X authenticated access, IP address filter
Web BrowserIE 10+, Chrome 57+, Firefox 52+, Safari 12+

Day/Night SwitchDay, night, auto, scheduled-switch
Image EnhancementBLC, HLC, 3D DNR
Wide Dynamic Range (WDR)120 dB WDR
DefogDigital defog
Image StabilizationEIS
Regional ExposureYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Image Parameters SwitchYes
Privacy MaskUp to 24 masks (8 masks for each scene)
SNR＞52 dB

Interface
Built-in Speaker1 built-in speaker
Power Output12 VDC; < 60 mA
Ethernet Interface1 RJ45 10 M/100 M Ethernet interface; PoE (802.3at)
On-board StorageBuilt-in memory card slot, support MicroSD/SDHC/SDXC, up to 512 GB
Alarm1 input, 1 output
Audio1 input (line in), max. input amplitude: 2-2.4 vpp, input impedance: 1 KΩ ± 10%; 1 output (line out), line level, output impedance: 600 Ω
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)
ResetYes

Event
Basic EventVideo tampering alarm, motion detection, alarm input, alarm output, exception
Smart EventLine crossing detection, region entrance detection, unattended baggage detection, object removal detection, intrusion detection, region exiting detection, audio exception detection
Alarm LinkagePreset, memory card video recording, alarm output, sending email, notify surveillance center, upload to FTP, audible warning, white light flashing

Deep Learning Function
Face CaptureDetects up to 5 faces simultaneously. Supports detecting, capturing, grading, selecting of face in motion, and outputs the best face picture
Perimeter ProtectionLine crossing, intrusion, region entrance, region exiting Support alarm triggering by specified target types (human and vehicle)

General
General FunctionMirror, password protection, watermark, IP address filter
Power12 VDC, 3.33 A & PoE (802.3at), 42.5 to 57 VDC, 0.6 A Max. 14 W (including max. 4 W for white light)
Operating ConditionHumidity: ≤ 90%, temperature: -30℃ to 65℃ (-22°F to 149°F)
DemistYes
Dimension179.3 mm × 120 mm × 182 mm (7.06" × 4.72" × 7.71")
Approx. 1.125 kg (2.48 lb.)

Approval
ProtectionIP66; 6000 V Lightning Protection, Surge Protection and Voltage Transient Protection
