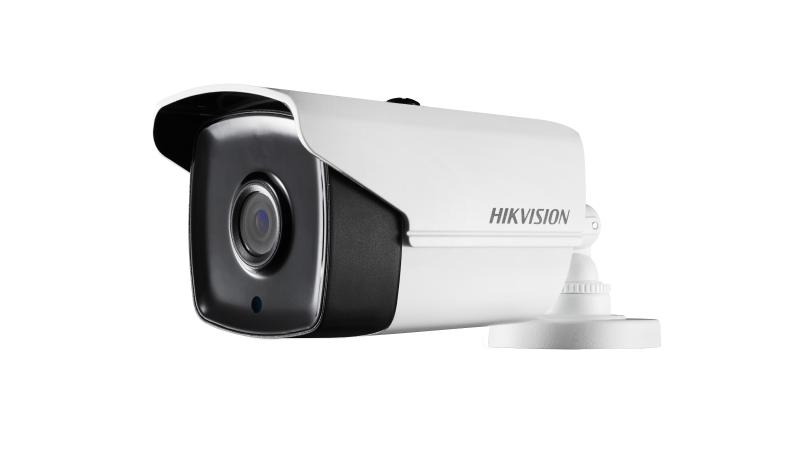

2 MP PoC Fixed Bullet Camera

  • 2 MP PoC bullet camera
  • EXIR 2.0: advanced infrared technology with 20 m IR distance
  • Water and dust resistant (IP66)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CE16D0T-IT1E(2.8mm)
DS-2CE16D0T-IT1E(3.6mm)
DS-2CE16D0T-IT1E(6mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0 to 360°, Tilt: 0 to 180°, Rotation: 0 to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm and 6 mm fixed focal lens
  • Focal Length & FOVHorizontal FOV: 103.55° (2.8 mm), 82.63° (3.6 mm), 54.38° (6 mm)
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC;HLC;Global
  • Noise Reduction2D DNR
  • Interface
  • Video Output1 HD analog output
  • General
  • Power12 VDC ± 30%/PoC.af, max. 3 W
  • MaterialFront cover: Metal, Main body: Plastic
  • Dimension86.7 mm × 81.6 mm × 226 mm (3.4" × 3.2" × 8.9")
  • Approx. 430 g (0.95 lb)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP66
