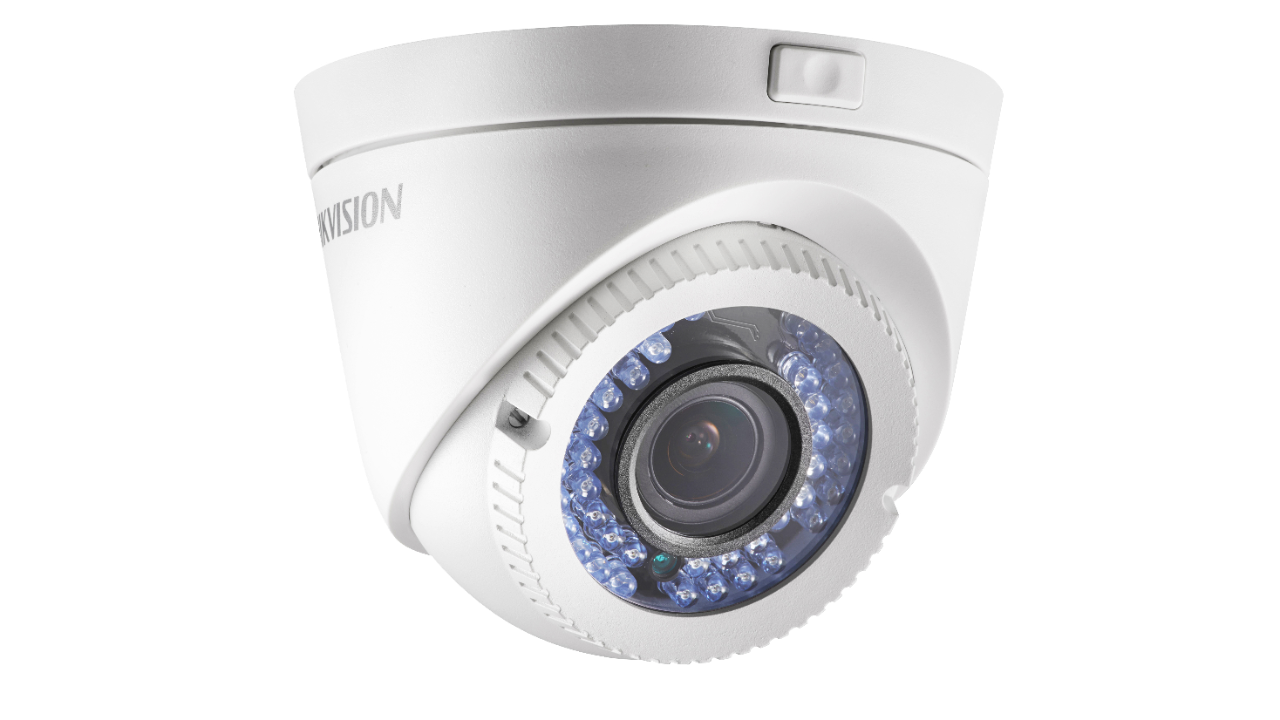

2MP PoC Manual Varifocal Turret Camera

  • 2 MP varifocal PoC turret camera
  • 2.8 mm to 12 mm varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP66)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CE56D0T-VFIR3E(2.8-12mm)

Specification

  • Camera
  • Image Sensor2 MP progressive scan CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotation: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens TypeVarifocal lens, motor-driven lens, 2.8 mm to 12 mm
  • Focal Length & FOVHorizontal FOV 105.2° to 32.8°
  • Lens MountΦ14
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 40 m
  • Image
  • Image SettingsAGC;Brightness;Sharpness;Mirror
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Image EnhancementBLC;DWDR
  • Noise Reduction2D DNR
  • Interface
  • Video Output1 HD analog output
  • General
  • Power12 VDC ±15%/PoC.at, max. 6.5 W
  • MaterialMain body: Metal, Enclosure: Plastic
  • DimensionØ 130.5 mm × 102.4 mm (Ø 5.14" × 4.03")
  • Approx. 710 g (1.57 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), Humidity 90% or less (non-condensation)
  • LanguageEnglish
  • Approval
  • ProtectionIP66
