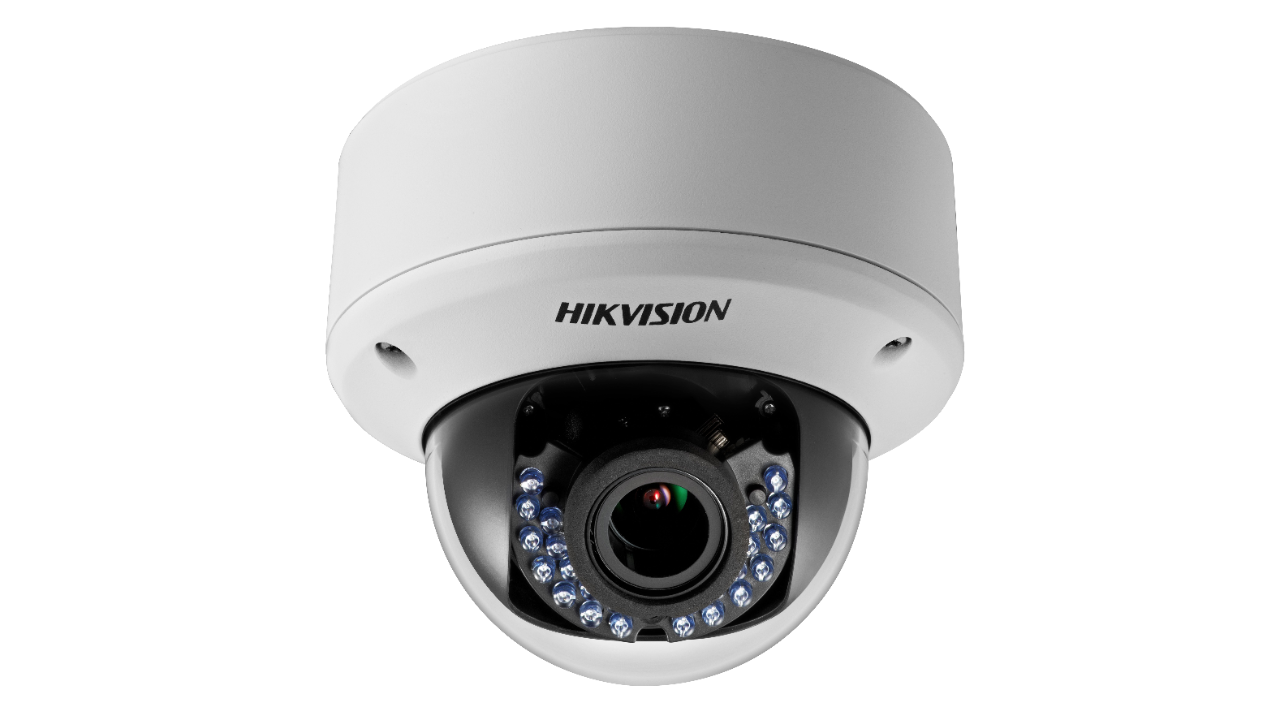

2 MP Vandal PoC Manual Varifocal Dome Camera

  • 2 MP vari-focal PoC dome camera
  • 2.8 mm to 12 mm varifocal lens
  • Up to 40 m IR distance for bright night imaging
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CE56D0T-VPIR3E(2.8-12mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.01 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, Tilt: 0° to 75°, Rotation: 0° to 355°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens TypeVarifocal lens, 2.8 mm to 12 mm
  • Focal Length & FOVHorizontal FOV: 105.2° to 32.8°
  • Lens MountΦ14
  • Illuminator
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsBrightness;Sharpness;Mirror;AGC
  • Frame RatePAL: 1080p @ 25 fps NTSC: 1080p @ 30 fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC
  • Noise Reduction2D DNR
  • Interface
  • Video Output1 HD analog output
  • General
  • Power12 VDC ±15%/PoC.af, max. 4 W
  • MaterialMetal
  • DimensionØ 145.3 × 124.2 mm (Φ 5.72" × 4.89")
  • Approx. 1300 g (2.87 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity 90% or less (non-condensing)
  • LanguageEnglish
  • Approval
  • ProtectionIP66, IK10
