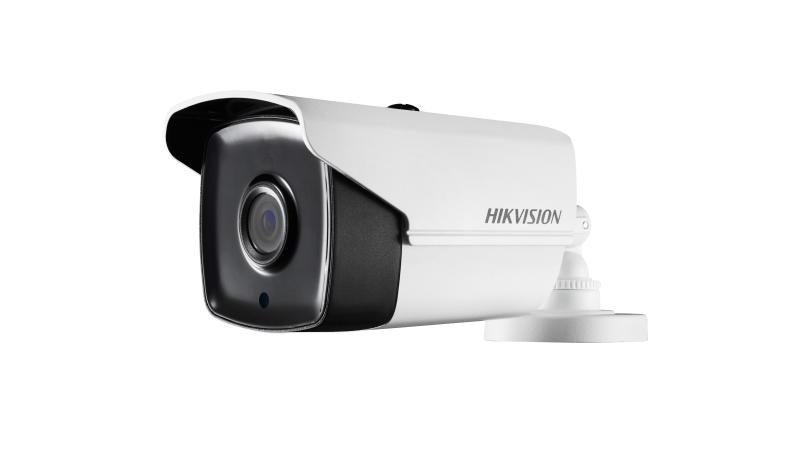

2 MP Ultra Low Light PoC Fixed Bullet Camera

  • 2 MP high performance bullet camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 60 m IR distance
  • Water and dust resistant (IP67)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CE16D8T-IT3E(2.8mm)
DS-2CE16D8T-IT3E(3.6mm)
DS-2CE16D8T-IT3E(6mm)

Specification

  • Camera
  • Image Sensor2 MP CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. IlluminationColor: 0.003 Lux @ (F1.2, AGC ON), B/W: 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 180°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm, 8 mm, 12 mm fixed lens
  • Focal Length & FOVHorizontal FOV 103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm), 38° (8 mm), 24.4° (12 mm)
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 60 m
  • Smart Supplement LightYes
  • Image
  • Image Parameters SwitchSTD/HIGH-SAT
  • Image SettingsBrightness;Mirror;Sharpness;AGC
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥130 dB
  • Image EnhancementBLC;HLC;Global
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video Output1 HD analog output
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • Power12 VDC ± 25%/PoC.af, Max. 3.6 W
  • MaterialMetal
  • Dimension86.7 mm × 81.6 mm × 226 mm (3.41" × 3.23" × 8.90")
  • Approx. 680 g (1.5 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensing)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP67
