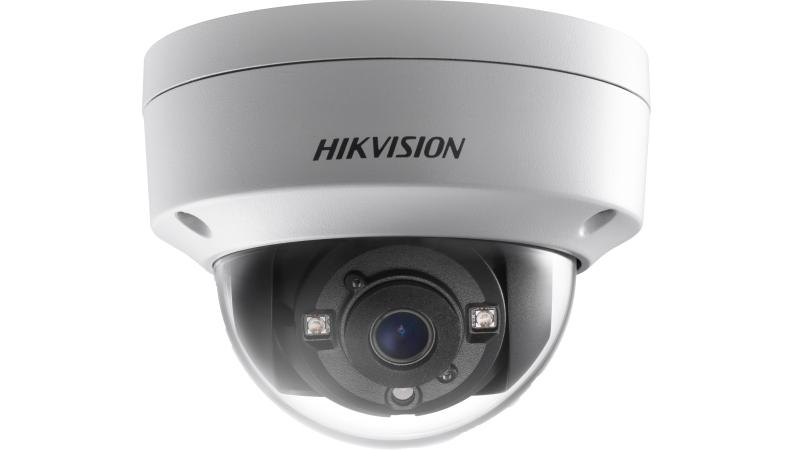

2 MP Ultra Low Light Vandal PoC Fixed Dome Camera

  • 2 MP high performance dome camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 130 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 30 m IR distance
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CE56D8T-VPITE(2.8mm)
DS-2CE56D8T-VPITE(3.6mm)

Specification

  • Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s;NTSC: 1/30 s to 1/50,000 s
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, Tilt:0° to 75°, Rotate: 0° to 355°
  • Signal SystemPAL/NTSC
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOV103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
  • Lens MountM12
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 20 m
  • Smart Supplement LightYes
  • Image
  • Image SettingsBrightness;Sharpness;AGC;Mirror
  • Frame RatePAL: 1080p@25fps NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (Black and White)
  • Wide Dynamic Range (WDR)≥120 dB
  • Image EnhancementBLC
  • Privacy Mask4 programmable privacy masks
  • Noise Reduction3D DNR
  • White BalanceAuto/Manual
  • Interface
  • Video Output1 HD analog output
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • Power12 VDC ;25%/PoC.af, max. 3.2 W
  • MaterialMetal
  • DimensionΦ 111 mm × 82.4 mm (Φ 4.4" × 3.2")
  • Approx. 350 g (0.77 lb.)
  • Operating Condition-40 °C to 60 °C (-40 °F to 140 °F), humidity: 90% or less (non-condensation)
  • CommunicationHIKVISION-C
  • LanguageEnglish
  • Approval
  • ProtectionIP67, IK10
