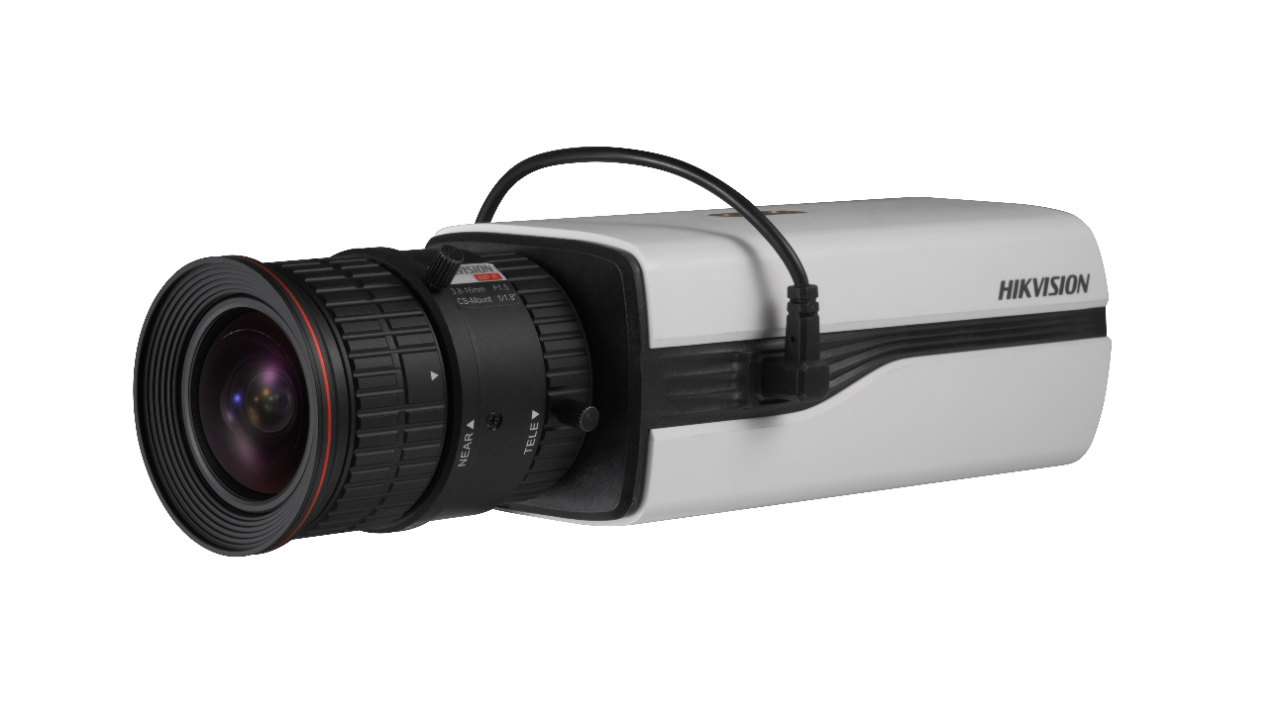

2 MP PoC Box Camera

  • 2 MP high performance box camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • Dual outputs (HDTVI and CVBS signals output simultaneously)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CC12D9T-E

Specification

  • Camera
  • Image Sensor2MP CMOS Image Sensor
  • Max. Resolution2MP
  • Min. Illumination0.003 Lux @ (F1.2, AGC ON), 0 Lux with IR
  • Shutter Time1/25(1/30)s to 1/50,000s
  • Day & NightElectronic
  • Signal SystemPAL/NTSC
  • Lens
  • Lens TypeFixed Lens
  • Lens MountC/CS mount
  • Image
  • Image SettingsHSBLC, Digital noise reduction, Digital zoom(62x), Mirror, Defog, Defect pixel correction, SMART D-ZOOM, LSC (Lens Shading Correction)
  • Wide Dynamic Range (WDR)120dB
  • Privacy MaskOn/Off, maximum 8 zones
  • White BalanceATW, AWC-SET, Indoor, Outdoor, Manual
  • AGCSupport
  • Interface
  • Video OutputTVI&CVBS
  • Event
  • Motion DetectionOn/Off, maximum 4 zones
  • General
  • Dimension69.2×57.3×148.7mm(2.7” × 2.3” × 5.85”)
  • 520 g
  • Operating Condition-30 °C – 60 °C (-22 °F – 140 °F), Humidity 90% or less (non-condensing)
  • CommunicationUp the coax, Protocol: HIKVISION-C(TVI output)
  • LanguageEnglish, Japanese, CHN1, CHN2, Korean, German, French, Italian, Spanish, Polish, Russian, Portuguese, Dutch, Turkish, Hebrew and Arabic
  • Power Supply12 VDC±15%, POC
  • ConsumptionMax. 7W
  • IR Range30~60m
  • Approval
  • ProtectionIP67
