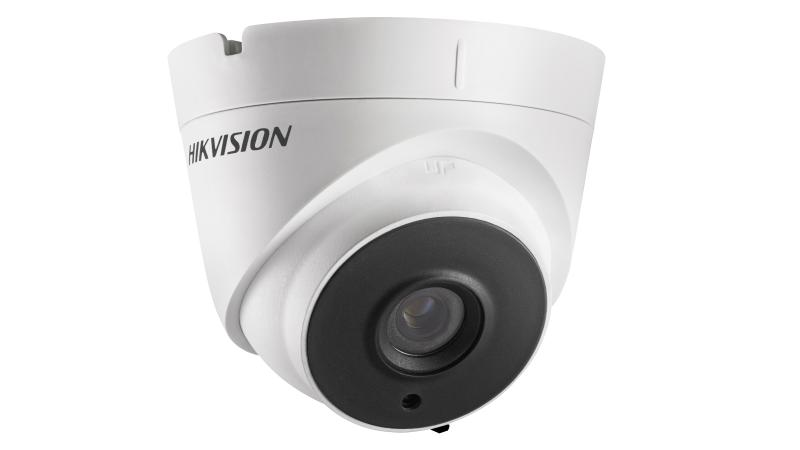

2 MP PoC Fixed Turret Camera

  • 2 MP high performance turret camera
  • Strong night performance, capturing images in ultra-low light down to 0.003 lux
  • Clear imaging even against strong back lighting due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images
  • EXIR 2.0: advanced infrared technology with 40 m IR distance
  • Water and dust resistant (IP67)
  • Dual outputs (HDTVI and CVBS signals output simultaneously)
  • Transmits both HD video and power over the same coaxial cable

Available models:

DS-2CC52D9T-IT3E(2.8mm)
DS-2CC52D9T-IT3E(3.6mm)

Specification

  • Camera
  • Image Sensor2.0 megapixel progressive scan CMOS
  • Max. Resolution1920 (H) × 1080 (V)
  • Min. Illumination0.003 Lux@(F1.2, AGC ON), 0 Lux with IR
  • Shutter TimePAL: 1/25 s to 1/50,000 s,NTSC: 1/30 s to 1/50,000 s
  • Day & NightAuto/Color/B/W (White & Black)
  • Angle AdjustmentPan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
  • Signal SystemPAL/NTSC
  • Slow ShutterMax.: 30 times
  • ApplicationIndoor/outdoor/indoor1/low light
  • Lens
  • Lens Type2.8 mm, 3.6 mm, 6 mm fixed focal lens
  • Focal Length & FOV103.5° (2.8 mm), 82.6° (3.6 mm), 54.4° (6 mm)
  • Lens MountM12
  • Image
  • Image SettingsDefog, Mirror, Defective Pixel Correction, Sharpness, Camera Title, LSC (Lens Shading Correction)
  • Frame RatePAL: 1080p@25fps,NTSC: 1080p@30fps
  • Day/Night ModeAuto/Color/BW (White & Black)
  • Wide Dynamic Range (WDR)> 120 dB
  • Image EnhancementWDR/BLC/HLC/OFF
  • Privacy MaskON/OFF, 8 programmable privacy masks
  • Noise ReductionON/OFF
  • White BalanceATW/AWC-SET/MANUAL
  • AGCSupport
  • Interface
  • Video OutputTVI&CVBS
  • Event
  • Motion Detection4 programmable motion areas
  • General
  • MaterialMetal & Plastic
  • DimensionΦ 110 mm × 93.2 mm (4.33" × 3.67")
  • Approx. 200 g (0.44 lb.)
  • Operating Condition-40° C to 60° C (-40° F to 140° F), humidity: 90% or less (no condensation)
  • CommunicationUp the coax, Protocol: HIKVISION-C
  • Power Supply12 VDC ±30%/PoC.af
  • ConsumptionMax. 4 W
  • IR RangeUp to 40 m
  • Approval
  • ProtectionIP67
