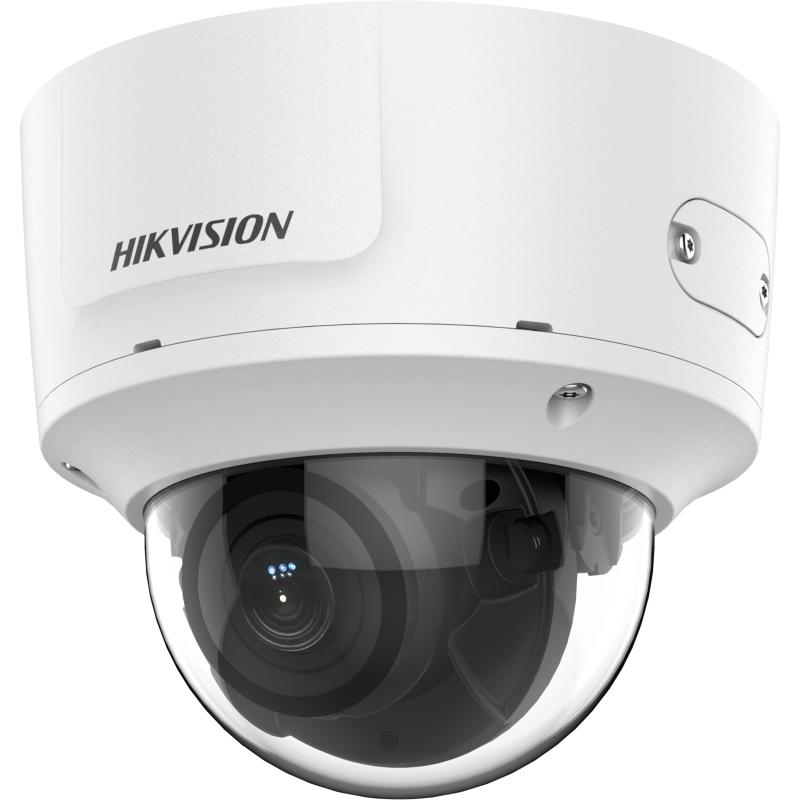

DS-2CD2785G0-IZS

4K Powered-by-DarkFighter Varifocal Dome Network Camera

High quality imaging with 8 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP66) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Robust structure design with full metal materials

Available models:

DS-2CD2785G0-IZS(2.8-12mm)

DS-2CD2785G0-IZS(2.8-12mm)

Camera
Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
FocusAuto
Lens TypeMotorized, 2.8 to 12 mm
FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
ApertureF1.4
Lens MountΦ14

Illuminator
IR RangeUp to 30 m
Wavelength850 nm

Video
Max. Resolution3840 × 2160
Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region of Interest (ROI)Support 1 fixed region for main stream and sub stream separately

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
DNR3D DNR
Image EnhancementBLC/3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface
Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output1Vp-p composite output (75 Ω) (For adjustment only)
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Face DetectionYes
Exception DetectionScene change detection

General
Firmware VersionV5.5.80
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%,PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.9A, max. 10.5W,PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Camera DimensionCamera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
Camera WeightCamera: 1300 g (2.9 lb.),With package: 1500 g (3.3 lb.)

Approval
ProtectionIP66，IK10

Camera

Image Sensor1/2" Progressive Scan CMOS
Min. IlluminationColor: 0.008 Lux @ (F1.2, AGC ON), 0.011 Lux @ (F1.4, AGC ON)
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

FocusAuto
Lens TypeMotorized, 2.8 to 12 mm
FOVHorizontal field of view: 112° to 46°,Vertical field of view: 60° to 26°,Diagonal field of view: 133° to 53°
ApertureF1.4
Lens MountΦ14

Illuminator

IR RangeUp to 30 m
Wavelength850 nm

Video

Max. Resolution3840 × 2160
Main Stream50Hz: 20 fps (3840 × 2160), 25 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 20 fps (3840 × 2160), 30 fps (3072 × 1728, 2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region of Interest (ROI)Support 1 fixed region for main stream and sub stream separately

Audio

Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)

Network

Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
User/HostUp to 32 users,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
DNR3D DNR
Image EnhancementBLC/3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), mono sound
Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
Video Output1Vp-p composite output (75 Ω) (For adjustment only)
On-board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Face DetectionYes
Exception DetectionScene change detection

General

Firmware VersionV5.5.80
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%,PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.9A, max. 10.5W,PoE: (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12.5W
Camera DimensionCamera: Φ 153.4 × 133.1 mm (Φ 6" × 5.2")
Camera WeightCamera: 1300 g (2.9 lb.),With package: 1500 g (3.3 lb.)

Approval

ProtectionIP66，IK10

Data Sheet

Quick Start Guide

User Manual

FAQ

Firmware

Firmware_V5.6.6_210625

Network Camera V5.6.6 Release Note --G1.pdf

Applied to:

DS-2CD2785G0-IZS(2.8-12mm)

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
