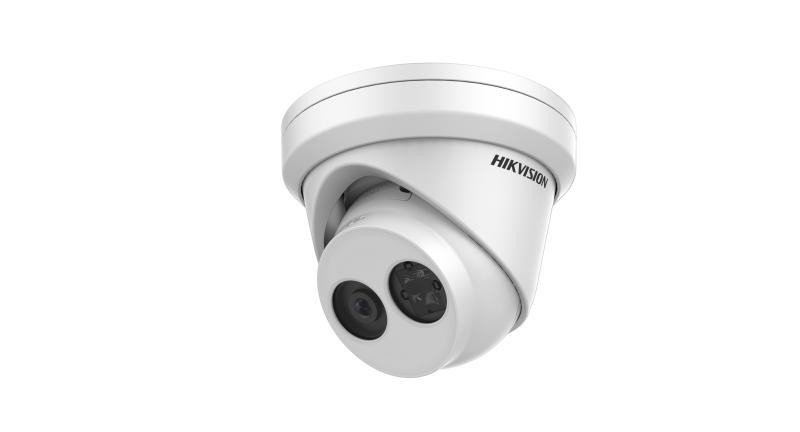

DS-2CD2345FWD-I

4MP Powered by DarkFighter Fixed Turret Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Robust structure design with full metal materials.

Available models:

DS-2CD2345FWD-I(2.8mm)

DS-2CD2345FWD-I(4mm)

DS-2CD2345FWD-I(6mm)

DS-2CD2345FWD-I(8mm)

DS-2CD2345FWD-I(4mm)(BLACK)

DS-2CD2345FWD-I(2.8mm)(BLACK)

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter

Lens
FocusFixed
FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°;4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°;6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°;8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°;12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Lens MountM12

Illuminator
IR RangeUp to 30 m

Video
Max. Resolution2688 × 1520
Main Stream50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)；60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Support
H.265+Support

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users,3 levels: Administrator, Operator and User,
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Day/Night SwitchDay/Night/Auto/Schedule
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection，unattended baggage detection

General
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware VersionV5.5.52
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening, password protection, IP Address filtering, watermark
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power；PoE(802.3af, class 3)
Camera DimensionCamera: Φ 127.3 × 95.9 mm (Φ5" × 3. 8");Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Camera WeightCamera: 620 g (1.4 lb.)

Camera

Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.008 lux @(F1.2, AGC ON), 0.014 lux @(F1.6, AGC ON), 0 lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter

Lens

FocusFixed
FOV2.8 mm, horizontal FOV: 109°, vertical FOV: 60°, diagonal FOV: 131°;4 mm, horizontal FOV: 88°, vertical FOV: 46°, diagonal FOV: 105°;6 mm, horizontal FOV: 53°, vertical FOV: 30°, diagonal FOV: 61°;8 mm, horizontal FOV: 41°, vertical FOV: 23°, diagonal FOV: 48°;12 mm, horizontal FOV: 25°, vertical FOV: 14°, diagonal FOV: 29°
Lens MountM12

Illuminator

IR RangeUp to 30 m

Video

Max. Resolution2688 × 1520
Main Stream50Hz: 25 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30 fps (2688 × 1520, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240)；60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Support
H.265+Support

Network

Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users,3 levels: Administrator, Operator and User,
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport microSD/SDHC/SDXC card (128G), local storage and NAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error


Day/Night SwitchDay/Night/Auto/Schedule
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 G
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection，unattended baggage detection

General

Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware VersionV5.5.52
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening, password protection, IP Address filtering, watermark
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial plug power；PoE(802.3af, class 3)
Camera DimensionCamera: Φ 127.3 × 95.9 mm (Φ5" × 3. 8");Package: 150 × 150 × 141 mm (5.9" × 5.9" × 5.6")
Camera WeightCamera: 620 g (1.4 lb.)
