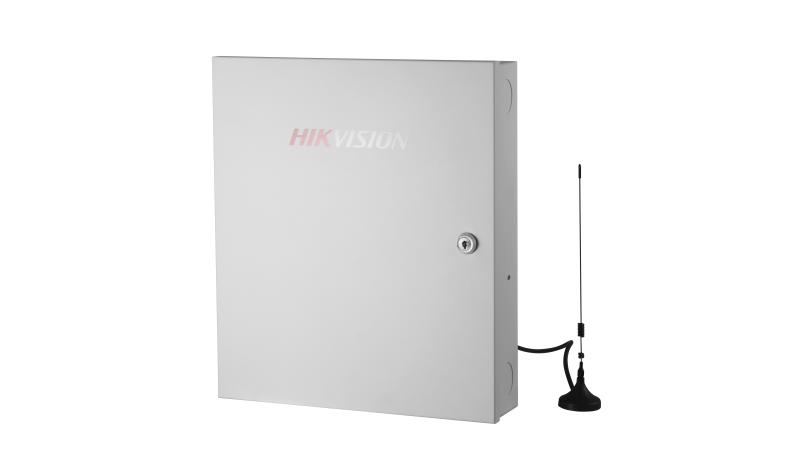

485 Hybrid Panel(8 zones on board)

  • Supports 8 wired onboard inputs, expandable to 48, 4 onboard outputs expandable to 48
  • Supports up to 32 keypads, 32 keyfobs
  • Supports multiple communication methods: PSTN + Wired IP + GPRS
  • Supports up to 40 wireless zones using transceiver DS-PM-RSWR

Available models:

DS-19A08-BNG

Specification

  • Software features
  • Partition8
  • Zones48
  • Tamper-ProofTampering alarm
  • ScheduleAuto Arm/Disarm Schedule
  • SMS notificationsupport
  • Phone numbers6
  • Firmware undate toolsRemote upgrade via network
  • Configuration toolsIVMS4200/Hik-Central/Keypad
  • ProtocolSDK、CID（DC05）
  • Useran Installer, a Master User, 15 keypad operators, 16 network operators, and 6 remote data channels
  • Hardware features
  • Alarm input48
  • Alarm output48
  • Relay output4
  • Siren1
  • Netowrk interface1, RJ45 10M/100M Ethernet Interface
  • Power interfaceAC220V
  • Communication interface1 RS485 Half-duplex
  • Printer interface1 RS-232
  • PSTN1, PSTN expander interface
  • BusRS485
  • Electrical characteristics
  • Power supplyAC220V
  • Power Consumption≤40W(Load Power≤40W)
  • General
  • Operation temperature-10℃ to 55℃
  • Operation humidity10% to 90%
  • Shell materialmetal
  • Dimension(WxHxD)370 mm × 320 mm × 86 mm
  • <3.5kg
  • Application scenariofinance, judicature, education, transport, electricity as well as shopping malls, stores, residences, apartments, communities and so on
  • Colorlightgray
  • Device management
  • Keyfob32
  • Keypad32
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Download Center

Data Sheet

Quick Start Guide

User Manual
Firmware
Firmware_V2.3.8_220126
Applied to:
DS-19A08-BNG
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
