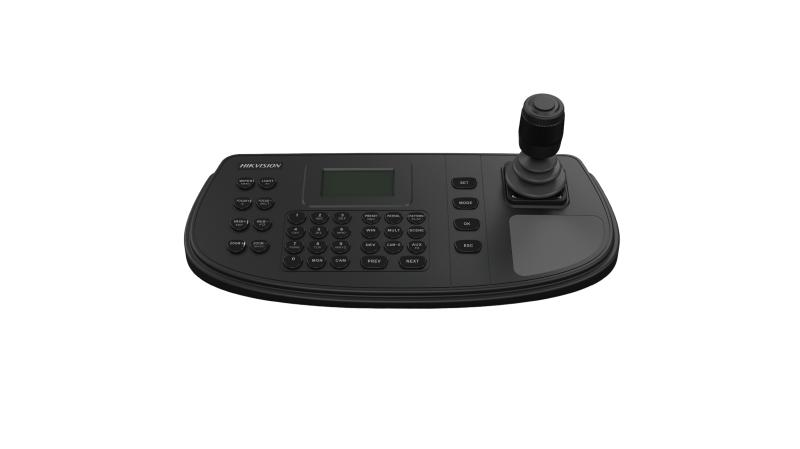

Serial Keyboard

  • Full-featured RS485 keyboard
  • Supports various cameras, NVRs and DVRs
  • Flexible 4-axis joystick
  • Buttons can be used to perform powerful functions
  • 128 x 64 screen displays all important information

Available models:

DS-1006KI

Specification

  • Interface
  • USB Interface1 × USB 2.0
  • Serial InterfaceRS-232, RS-422, RS-485
  • General
  • Dimension (W × H × D)435 × 193 × 110 mm (17.1 × 7.6 × 4.3 inch)
  • ≤ 1 kg (2.2 lb)
  • Power Supply12 VDC
  • Screen128 x 64 pixel screen
  • Joystick4-axis joystick
  • Power
  • Power Consumption≤ 4.5 W
  • Environment
  • Working Temperature’-10 to +55° C (14 to 131° F)
  • Working Humidity10% to 90%

Specification

Firmware
Applied to:
DS-1006KI
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
