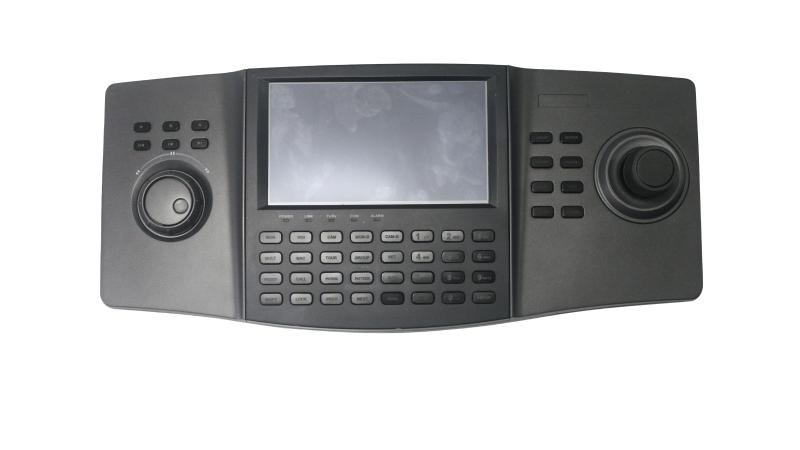

Network Keyboard

  • Divide video wall into regions to manage video wall by region
  • open/close window, move window, resize window, divide window, and enlarge/narrow sub-window.
  • Group and macro
  • Preview camera live image on network keyboard touchscreen
  • Quickly switch to the previous/next camera
  • Control speed dome movement via joystick
  • Play the decoder videos on video wall
  • Play the video recorder videos on network keyboard touchscreen. Supports clipping and capturing during playback
  • Add devices via SDK or ONVIF protocol
  • HikCentral and KPS platforms access
  • Support up to 32 users (1 administrator and 31 operators) and 4,000 devices
  • Add/modify/delete cameras in batch
  • Import/export configuration file

Available models:

DS-1100KI(B)

Specification

  • System
  • Operating SystemLinux
  • Interface
  • Network Interface1 × 100M/1000M self-adaptive network interface
  • USB Interface1 × USB 2.0 interface
  • Audio Interface1 video input and 1 video output of 3.5 mm audio jack. Supports two-way audio
  • Video InterfaceNot supported
  • Serial Interface1 × RS-232, 1 × RS-485
  • Performance Parameter
  • Decoding FormatH.264, H.265, MPEG4
  • Decoding Capability4@1080p
  • Screen SplitSingle screen
  • General
  • Dimension (W × H × D)193 × 110 × 435 mm ( 7.6" × 4.3" × 17.1")
  • 2 KG (4.4 lb)
  • Power Supply12 VDC
  • Screen7" TFT LCD at 1024 × 600 resolution
  • Joystick4D joystick
  • Power
  • Power Consumption≤ 15 W
  • Environment
  • Working Temperature-10 °C to +55 °C (14 °F to 131 °F)
  • Working Humidity10％ to 90％
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Download Center

Data Sheet

Quick Start Guide

User Manual
Firmware
Firmware_V4.5.1_220311
Applied to:
DS-1100KI(B)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
