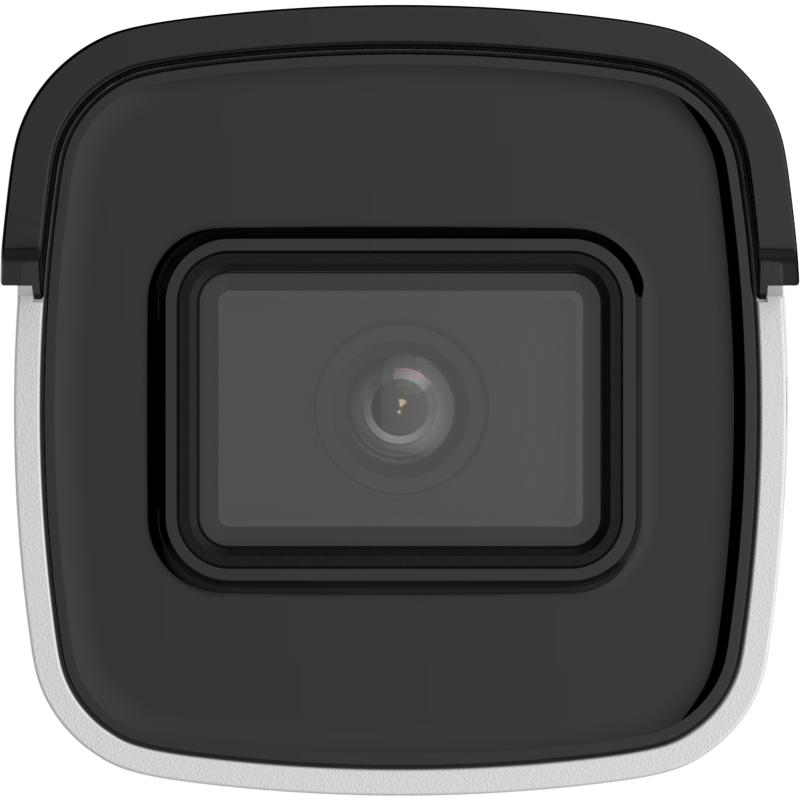

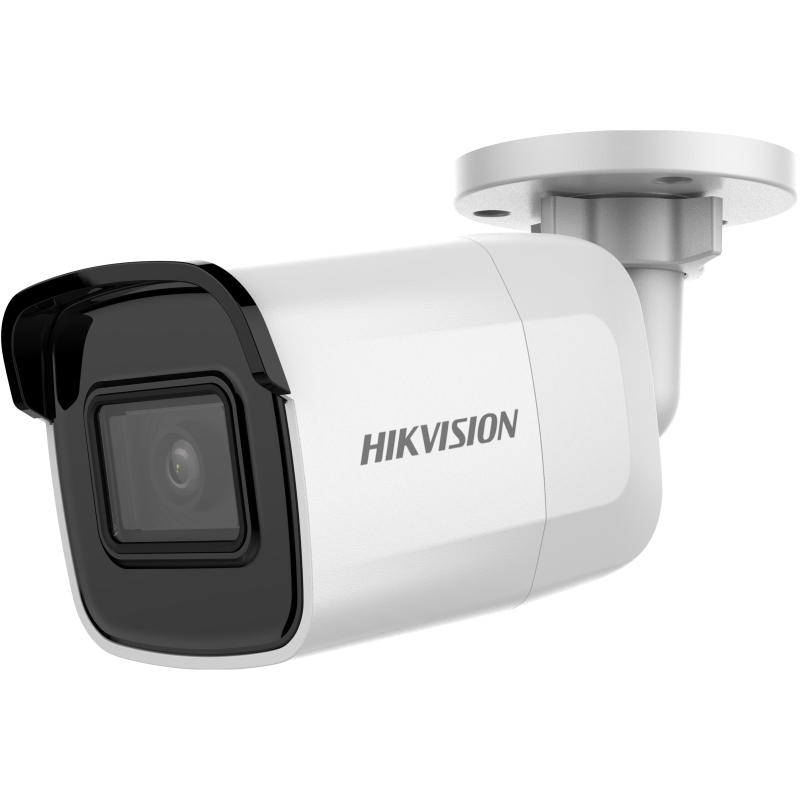

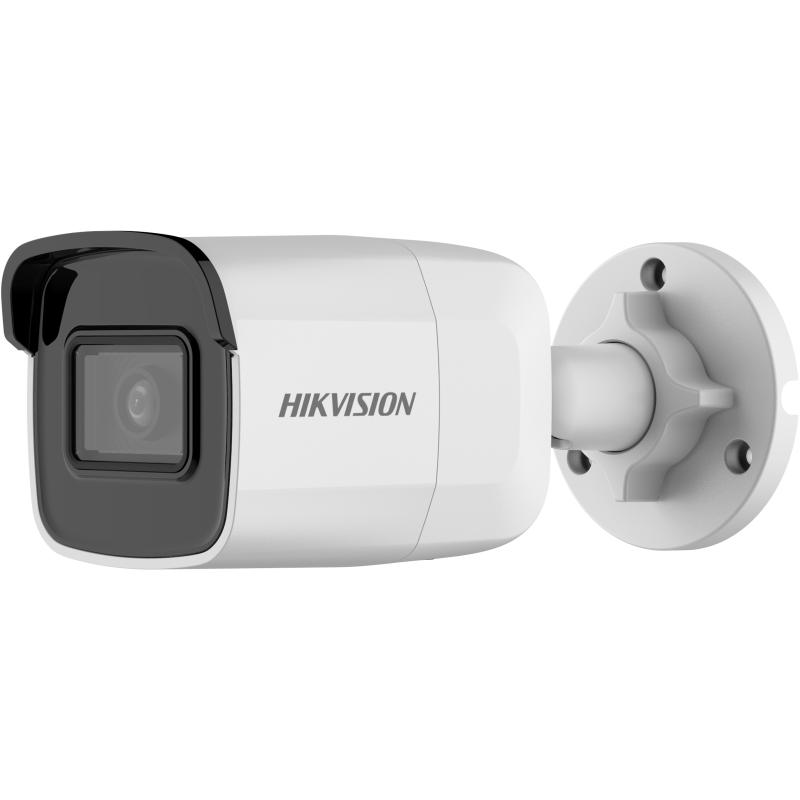

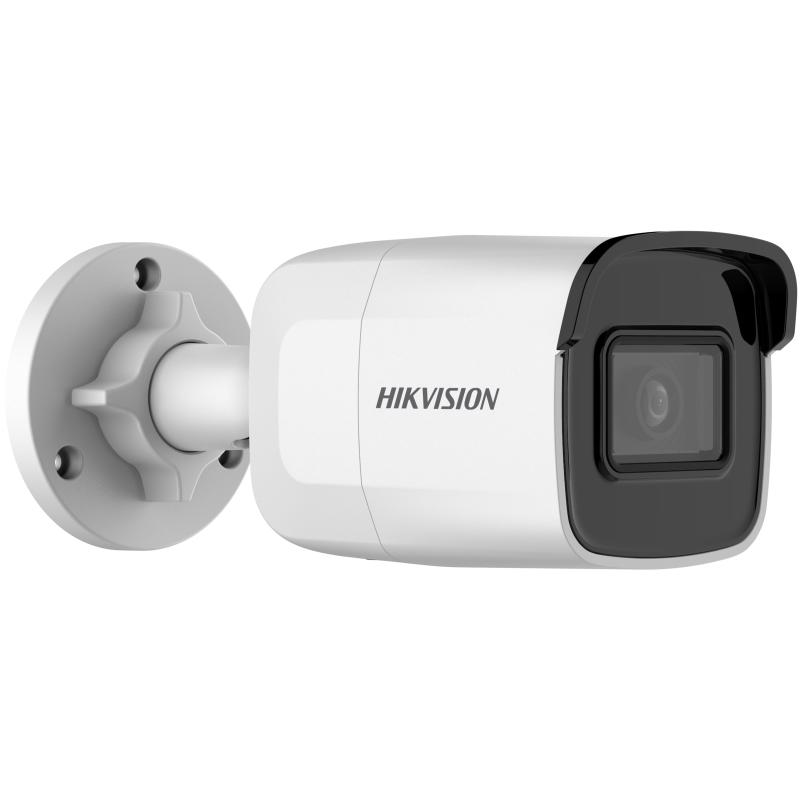

DS-2CD2021G1-I(W)

2 MP WDR Fixed Mini Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
Water and dust resistant (IP67)
Support up to 256 GB SD card storage

Available models:

DS-2CD2021G1-I(2.8mm)(C)

DS-2CD2021G1-I(4mm)(C)

DS-2CD2021G1-I(6mm)(C)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
FocusFixed
Focal Length & FOV2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9° 4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° 6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
Lens MountM12
ApertureF1.6

Illuminator
IR Wavelength850 nm
IR RangeUp to 30 m

Video
Max. Resolution1920 × 1080
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region of Interest (ROI)Support 1 fixed region for main stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board StorageBuilt-in Micro SD slot, up to 256 GB
Hardware ResetYes

Event
Smart EventLine crossing detection, intrusion detection

General
Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Camera MaterialMetal & Plastic
Camera Dimension69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)
Camera WeightApprox. 350 g (0.8 lb.)
With Package WeightApprox. 450 g (1.0 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware VersionV5.5.120
Power Supply12 VDC ± 25% PoE: 802.3af, Class 3
Power InterfaceØ5.5 mm coaxial power plug
Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Consumption and Current12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Camera

Image Sensor1/2.7" Progressive Scan CMOS
Min. IlluminationColor: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

FocusFixed
Focal Length & FOV2.8 mm: horizontal FOV 111.6°, vertical FOV 59.1°, diagonal FOV 133.9° 4 mm: horizontal FOV 91.5°, vertical FOV 46.1°, diagonal FOV 109.8° 6 mm: horizontal FOV 56°, vertical FOV 29.8°, diagonal FOV 65.3°
Lens MountM12
ApertureF1.6

Illuminator

IR Wavelength850 nm
IR RangeUp to 30 m

Video

Max. Resolution1920 × 1080
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360) 60Hz: 30 fps (640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Region of Interest (ROI)Support 1 fixed region for main stream

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour, IPv4, UDP, SSL/TLS
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
Network StorageSupport Micro SD/SDHC/SDXC card (256 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, 3D DNR

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-board StorageBuilt-in Micro SD slot, up to 256 GB
Hardware ResetYes

Event

Smart EventLine crossing detection, intrusion detection

General

Linkage MethodUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture
Camera MaterialMetal & Plastic
Camera Dimension69.7 mm × 67.9 mm × 171.4 mm (2.7" × 2.7" × 6.7")
Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.7)
Camera WeightApprox. 350 g (0.8 lb.)
With Package WeightApprox. 450 g (1.0 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity: 95% or less (non-condensing)
Web Client Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware VersionV5.5.120
Power Supply12 VDC ± 25% PoE: 802.3af, Class 3
Power InterfaceØ5.5 mm coaxial power plug
Power Consumption and Current12 VDC, 0.4 A, max. 5 W PoE (802.3af, 36 to 57 V), 0.2 A to 0.15 A, max. 6.5 W
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Consumption and Current12 VDC, 0.3 A, max. 4 W; PoE (802.3af, 36 to 57 V), 0.2 A to 0.1 A, max. 5.5 W

Approval

EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Data Sheet

Quick Start Guide

User Manual

FAQ

Firmware

Firmware_V5.7.2_220113

Network Camera V5.7.2_220113 Release Note --E8.pdf

Applied to:

DS-2CD2021G1-I(2.8mm)(C)

DS-2CD2021G1-I(4mm)(C)

DS-2CD2021G1-I(6mm)(C)

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
