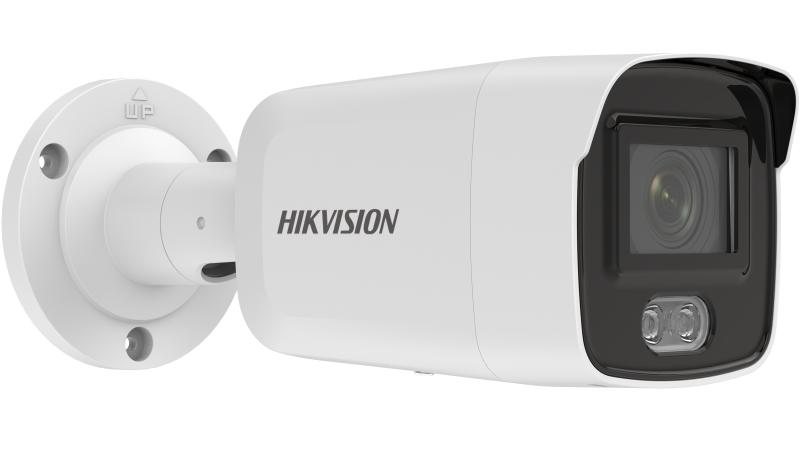

4 MP ColorVu Fixed Mini Bullet Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong backlight due to 130 dB WDR technology
  • Built-in microphone for real-time audio security(-U)
  • Focus on human and vehicle targets classification based on deep learning
  • 24/7 colorful imaging
  • Water and dust resistant (IP67)

Available models:

DS-2CD2047G2-LU(6mm)(C)
DS-2CD2047G2-LU(4mm)(C)
DS-2CD2047G2-LU(2.8mm)(C)
DS-2CD2047G2-L(6mm)(C)
DS-2CD2047G2-L(4mm)(C)
DS-2CD2047G2-L(2.8mm)(C)

Specification

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution2688 × 1520
  • Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with white light
  • Shutter Time1/3 s to 1/100,000 s
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 112°, vertical FOV 61°, diagonal FOV 134° 4 mm, horizontal FOV 95°, vertical FOV 51°, diagonal FOV 115° 6 mm, horizontal FOV 58°, vertical FOV 31°, diagonal FOV 69°
  • Lens MountM16
  • Iris TypeFixed
  • ApertureF1.0
  • Depth of Field2.8 mm, 2.5 m to ∞ 4 mm, 3.5 m to ∞ 6 mm, 7.5 m to ∞
  • DORI
  • DORI2.8 mm, D: 58 m, O: 23 m, R: 11 m, I: 2 m 4 mm, D: 77 m, O: 30 m, R: 15 m, I: 7 m 6 mm, D: 115 m, O: 45 m, R: 23 m, I: 11 m
  • Illuminator
  • Supplement Light TypeWhite Light
  • Supplement Light Range40 m
  • Smart Supplement LightYes
  • Video
  • Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) *Third stream is supported under certain settings.
  • Video Compression Main stream: H.265/H.264/H.265+/H.264+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264 *Third stream is supported under certain settings.
  • Video Bit Rate32 Kbps to 8 Mbps
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR/VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)1 fixed region for main stream and sub-stream
  • Audio
  • Audio Compression -U: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-U: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK
  • User/HostUp to 32 users. 3 user levels: administrator, operator and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageMicroSD/SDHC/SDXC card (256 GB) local storage, and NAS (NFS, SMB/CIFS), auto network replenishment (ANR) Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
  • Day/Night SwitchAuto, Schedule
  • Wide Dynamic Range (WDR)130 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC, HLC, 3D DNR
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-in Microphone-U: Yes
  • Reset KeyYes
  • Event
  • Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection Scene change detection
  • LinkageUpload to NAS/memory card/FTP, notify surveillance center, trigger recording, trigger capture, send email
  • Deep Learning Function
  • Face CaptureYes
  • General
  • Power12 VDC ± 25%, 0.5 A, max. 6 W, Ø5.5 mm coaxial power plug PoE: 802.3af, Class 3, 36 V to 57 V, 0.25 A to 0.15 A, max. 7.5 W
  • Dimension215.2 mm × 78.8 mm × 78.6 mm (8.5" × 3.1" × 3.1")
  • Package Dimension315 mm × 137 mm × 141 mm (12.4" × 5.4" × 5.6")
  • Approx. 695 g (1.5 lb.)
  • With Package WeightApprox. 1090 g (2.4 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionAnti-flicker, heartbeat, mirror, privacy mask, flash log, password reset via email, pixel counter
  • Approval
  • EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC VoC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 60950-1); CB (IEC 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); CE-LVD (EN 60950-1: 2005 + Am 1: 2009 + Am 2: 2013, IEC 62368-1: 2014); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
  • ProtectionIP67 (IEC 60529-2013)

Specification

Firmware
Applied to:
DS-2CD2047G2-LU(6mm)(C)
DS-2CD2047G2-LU(4mm)(C)
DS-2CD2047G2-LU(2.8mm)(C)
DS-2CD2047G2-L(6mm)(C)
DS-2CD2047G2-L(4mm)(C)
DS-2CD2047G2-L(2.8mm)(C)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
