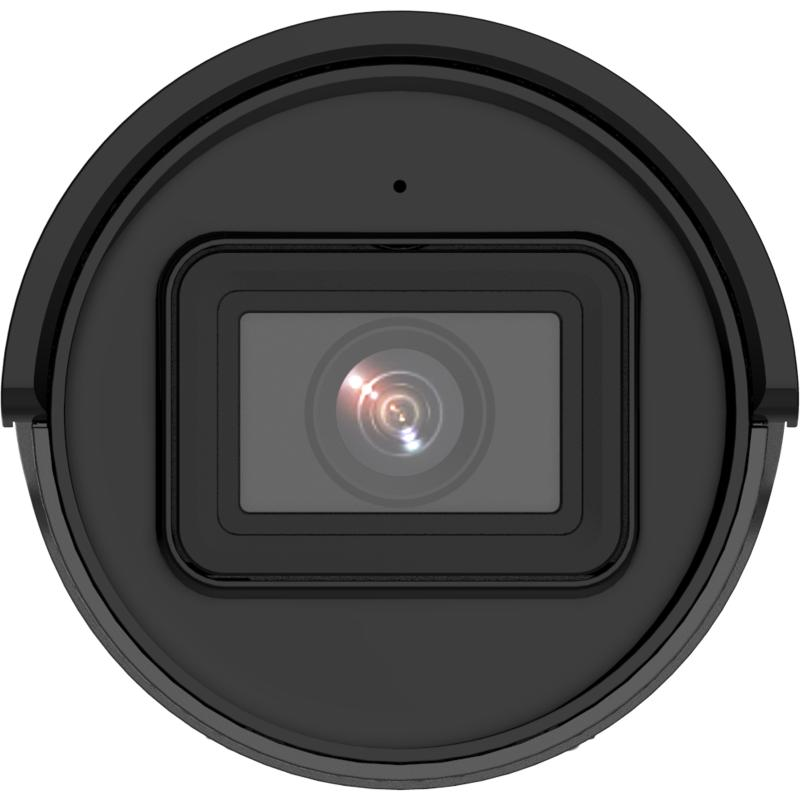

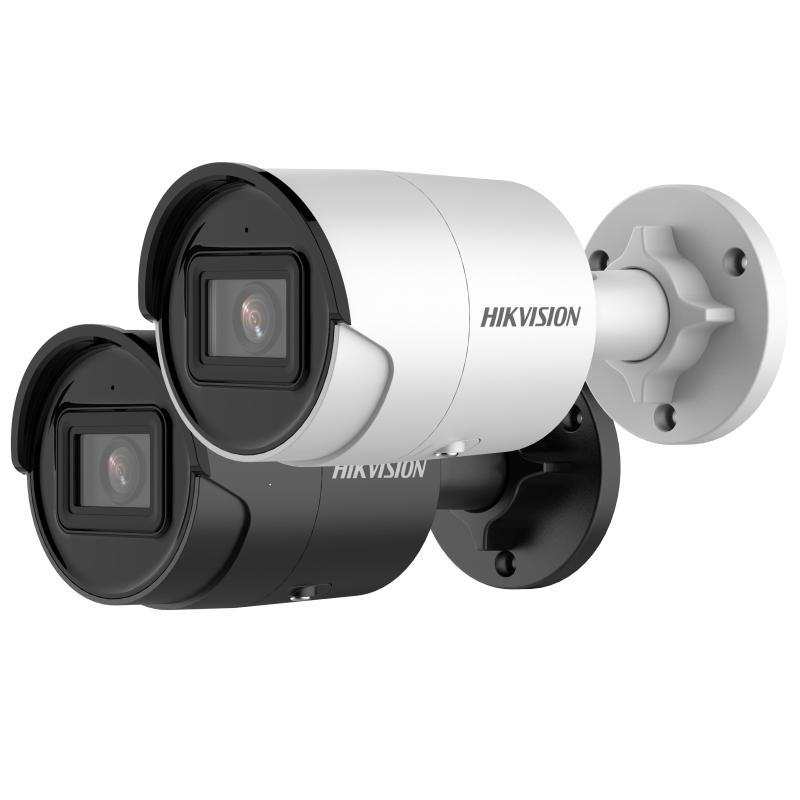

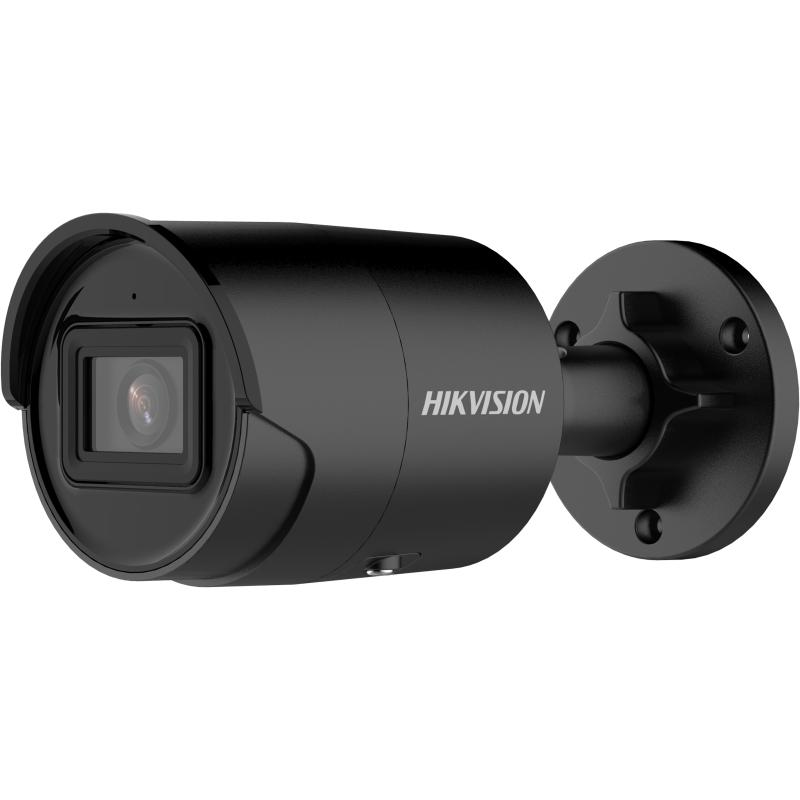

6 MP AcuSense Fixed Bullet Network Camera

  • High quality imaging with 6 MP resolution
  • Excellent low-light performance with powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Focus on human and vehicle targets classification based on deep learning
  • Built-in microphone for real-time audio security(-U)
  • Water and dust resistant (IP67)

Available models:

DS-2CD2066G2-IU(6mm)(C)
DS-2CD2066G2-IU(4mm)(C)
DS-2CD2066G2-IU(2.8mm)(C)
DS-2CD2066G2-I(6mm)(C)
DS-2CD2066G2-I(4mm)(C)
DS-2CD2066G2-I(2.8mm)(C)
DS-2CD2066G2-IU(2.8mm)(C)(BLACK)
DS-2CD2066G2-IU(6mm)(D)
DS-2CD2066G2-IU(4mm)(D)
DS-2CD2066G2-IU(2.8mm)(D)
DS-2CD2066G2-I(6mm)(D)
DS-2CD2066G2-I(4mm)(D)
DS-2CD2066G2-I(2.8mm)(D)
DS-2CD2066G2-IU(2.8mm)(D)(BLACK)

Specification

  • Camera
  • Image Sensor1/2.4" Progressive Scan CMOS
  • Max. Resolution3200 × 1800
  • Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON),B/W: 0 Lux with IR
  • Shutter Time1/3 s to 1/100,000 s
  • Day & NightIR cut filter
  • Angle AdjustmentPan: 0° to 360°,tilt: 0° to 90°,rotate: 0° to 360°
  • Lens
  • Lens TypeFixed focal lens, 2.8, 4, and 6 mm optional
  • Focal Length & FOV2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8° 6 mm, horizontal FOV 47.5°, vertical FOV 26°, diagonal FOV 54.5°
  • Lens MountM12
  • Iris TypeFixed
  • ApertureF1.6
  • DORI
  • DORI2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m 6 mm: D: 160.0 m, O: 63.5 m, R: 32.0 m, I: 16.0 m
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 40 m
  • Smart Supplement LightYes
  • IR Wavelength850 nm
  • Video
  • Main Stream 50 Hz: 25 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (3200 × 1800, 2688 × 1520, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
  • Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360), *Third stream is supported under certain settings.
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile,Main Profile,High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCBR,VBR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264, Sub-stream: H.265/H.264/MJPEG, Third stream: H.265/H.264 (*Third stream is supported under certain settings.)
  • Region of Interest (ROI)1 fixed region(s) for main stream and sub-stream
  • Target CroppingYes
  • Audio
  • Audio Type-U: Mono sound
  • Audio Compression -U: G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC
  • Audio Bit Rate-U: 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate-U: 8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Environment Noise Filtering-U: Yes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, ARP
  • Simultaneous Live ViewUp to 6 channels
  • APIOpen Network Video Interface (Profile S, Profile G, Profile T),ISAPI,SDK
  • User/HostUp to 32 users 3 user levels: administrator, operator, and user
  • SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
  • Network StorageNAS (NFS, SMB/CIFS),Auto Network Replenishment (ANR),Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200,Hik-Connect,Hik-Central
  • Web BrowserPlug-in required live view: IE10+, Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsRotate mode,saturation,brightness,contrast,sharpness,gain,white balance,adjustable by client software or web browser
  • Day/Night SwitchDay,Night,Auto,Schedule
  • Wide Dynamic Range (WDR)120 dB
  • SNR≥ 52 dB
  • Image EnhancementBLC,HLC,3D DNR
  • Privacy Mask4 programmable polygon privacy masks
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
  • Built-in Microphone-U: Yes
  • Reset KeyYes
  • Event
  • Basic Event Motion detection (support alarm triggering by specified target types (human and vehicle)),video tampering alarm,exception
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection (support alarm triggered by specified target types (human and vehicle)),Scene change detection
  • LinkageUpload to FTP/NAS/memory card,notify surveillance center,send email,trigger recording,trigger capture
  • Deep Learning Function
  • Face Capture Yes
  • General
  • Power12 VDC ± 25%, 0.5 A, max. 6 W,Ø5.5 mm coaxial power plug,reverse polarity protection, PoE: 802.3af, Class 3, 36 V to 57 V, 0.2 A to 0.13 A, max. 7.2 W
  • Dimension Ø70 mm × 161.7 mm (Ø2.8" × 6.4")
  • MaterialMetal
  • Package Dimension216 mm × 121 mm × 118 mm (8.5" × 4.8" × 4.6")
  • Approx. 490 g (1.1 lb.)
  • With Package WeightApprox. 759 g (1.7 lb.)
  • Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language 33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
  • General FunctionHeartbeat,anti-flicker,mirror,flash log,password reset via email,pixel counter,password protection,one-key reset,three streams
  • Approval
  • EMC CE-EMC: EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3: 2013+A1:2019, EN 50130-4: 2011 +A1: 2014, RCM: AS/NZS CISPR 32: 2015, KC: KN32: 2015, KN35: 2015
  • SafetyUL: UL 62368-1, CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017
  • EnvironmentCE-RoHS: 2011/65/EU, WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
  • ProtectionIP67: IEC 60529-2013

Specification

Firmware
Applied to:
DS-2CD2066G2-IU(6mm)(C)
DS-2CD2066G2-IU(4mm)(C)
DS-2CD2066G2-IU(2.8mm)(C)
DS-2CD2066G2-I(6mm)(C)
DS-2CD2066G2-I(4mm)(C)
DS-2CD2066G2-I(2.8mm)(C)
DS-2CD2066G2-IU(2.8mm)(C)(BLACK)
Applied to:
DS-2CD2066G2-IU(6mm)(D)
DS-2CD2066G2-IU(4mm)(D)
DS-2CD2066G2-IU(2.8mm)(D)
DS-2CD2066G2-I(6mm)(D)
DS-2CD2066G2-I(4mm)(D)
DS-2CD2066G2-I(2.8mm)(D)
DS-2CD2066G2-IU(2.8mm)(D)(BLACK)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
