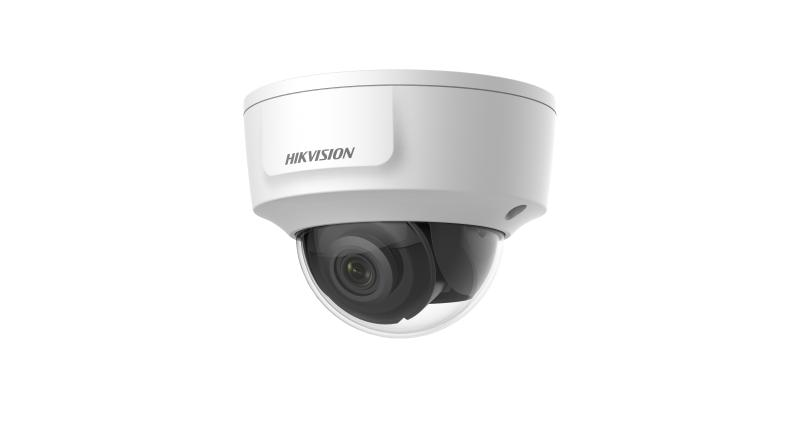

4K HDMI Fixed Dome Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Direct HD live view with HDMI output
  • Vandal proof (IK10)
  • Robust structure design with full metal materials.

Available models:

DS-2CD2185G0-IMS(2.8mm)

Specification

  • Camera
  • Image Sensor1/2.5" Progressive Scan CMOS
  • Min. IlluminationColor: 0.028 Lux @(F2.0, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • Lens Type2.8/4/6 mm
  • FOV2.8 mm, horizontal FOV: 102°, vertical FOV: 53°, diagonal FOV: 124° ;4 mm, horizontal FOV: 79°, vertical FOV: 42°, diagonal FOV: 95° ;6 mm, horizontal FOV: 50° , vertical FOV: 28° , diagonal FOV: 59°
  • ApertureF2.0
  • Lens MountΦ12
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution3840 × 2160
  • Main Stream50Hz: 20fps (3840 × 2160), 25fps (3072 × 1728, 1920 × 1080, 1280 × 720) ;60Hz: 20fps (3840 × 2160, 3072 × 1728, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) ;60Hz: 20fps (640 × 480, 640 × 360, 320 × 240)
  • Video Compression Main stream: H.265/H.264 ;Sub-stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+No
  • H.265+No
  • Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users ,3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StoragemicroSD/SDHC/SDXC card (128 GB), local storage and NAS (NFS,SMB/CIFS), ANR; Together with high-end Hikvision memory card, memory card encryption and health detection are supported.
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Audio1 input (line in/mic in, terminal block), 1 output ( two-core terminal block), mono sound
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output1 HDMI™, type D, female plug (-M)
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Smart EventLine crossing detection, intrusion detection
  • Face DetectionYes
  • General
  • General FunctionAnti-flicke, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating ConditionsIR on: -10 °C to 40 °C (14 °F to 104 °F), humidity 95% or less (non-condensing) ; IR off: -10 °C to 50 °C (14 °F to 122 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.6 A, max. 7 W; PoE (802.3af, 36 V to 57 V), 0.3 A to 0.2 A, max. 8. 5W
  • Camera DimensionCamera: Φ 119 × 90 mm (Φ 4.7" × 3.5")
  • Camera WeightCamera: Approx. 520 g (1.1 lb.) With package: Approx. 750 g (1.7 lb.)
  • Approval
  • ProtectionIK10

Specification

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
