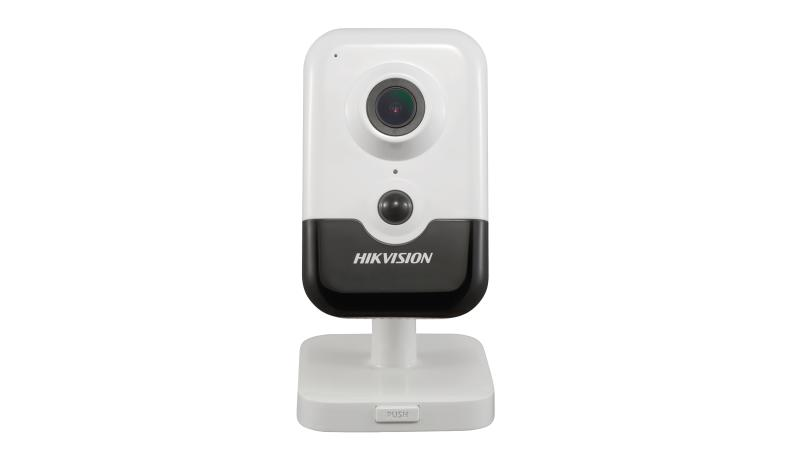

2 MP Powered by DarkFighter Cube Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • Provides real-time security through built-in two-way audio
  • Detects human body through passive infrared sensitive to body temperature (PIR)
  • -W: Wi-Fi connection

Available models:

DS-2CD2425FWD-I(2.8mm)

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON), 0 Lux with IR,Color: 0.009 lux @(F1.6, AGC ON), 0 lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Lens
  • FocusFixed
  • Lens Type2.8 mm
  • FOVHorizontal field of view: 108°, Vertical field of view: 59°, Diagonal field of view: 129°
  • ApertureF1.6
  • Lens MountM12
  • Illuminator
  • IR Range10 m
  • Wavelength850nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub-Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)Support H.264 and H.265 encoding
  • Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz
  • Audio Compression G722.1/G711/G726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view:,IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view:,Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, PIR, illegal login
  • Wi-Fi
  • Encryption ModeWPA, WPA2
  • Wi-Fi ProtocolIEEE 802.11b/g/n
  • Frequency Range2.412 GHz to 2.4835 GHz
  • Channel Bandwidth 20M/40M
  • Transfer Rate11b: 11Mbps, 11g: 54Mbps, 11n: up to 150Mbps
  • Wireless Range50 m
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • PIR
  • PIR AngleHorizontal: 90°, Vertical: 80°
  • PIR Range10 m
  • Interface
  • Audio1 built-in mic, 1 built-in speaker, mono sound
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128G
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Face DetectionYes
  • Exception DetectionScene change detection
  • General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Firmware VersionV5.5.80
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Startup and Operating Conditions-10 °C to +40 °C (14 °F to +104 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 20%, PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.38 A, max. 7 W,PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7 W
  • Camera Dimension102.8 mm × 65.2 mm × 32.6 mm (4.05" × 2.57" × 1.28")
  • Camera WeightCamera: Approx. 128 g (0.28 lb.)

Specification

Firmware
Applied to:
DS-2CD2425FWD-I(2.8mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
