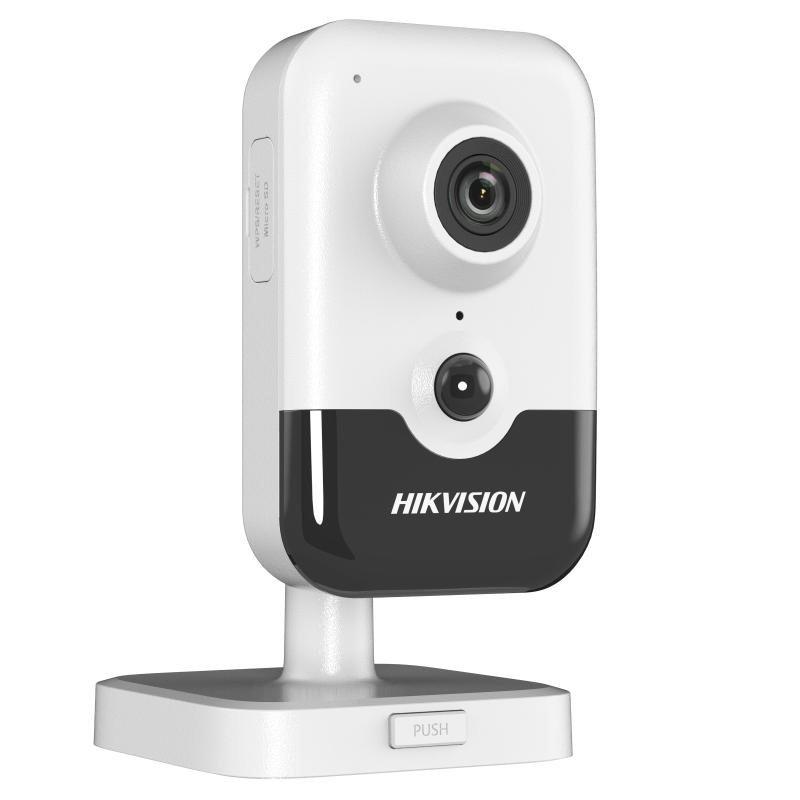

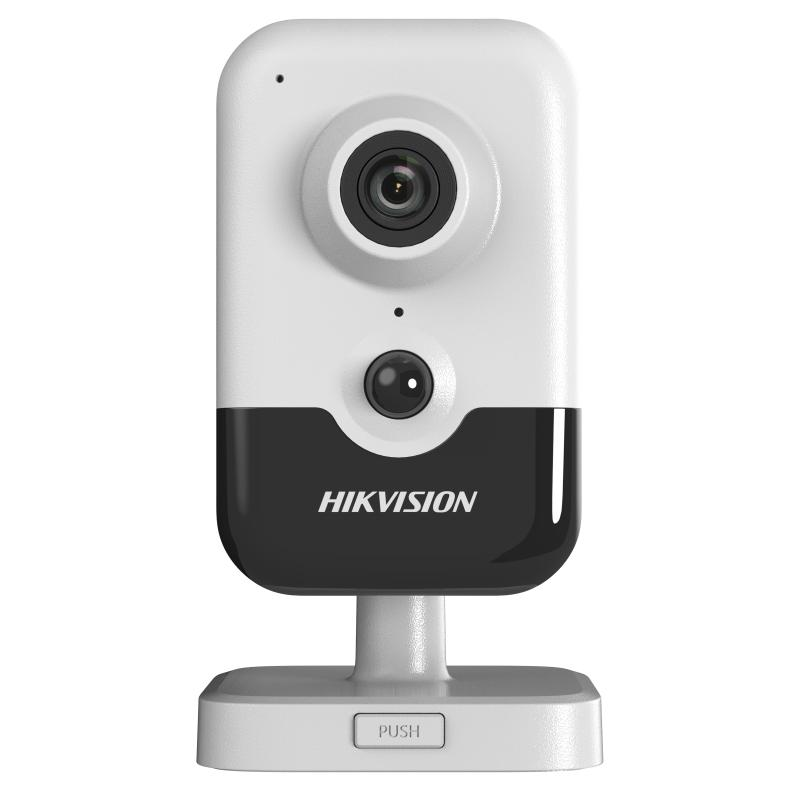

DS-2CD2443G2-I

4 MP AcuSense Built-in Mic Fixed Cube Network Camera

High quality imaging with 4 MP resolution
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Detect human body through passive infrared which is sensitive to body temperature (PIR)

Available models:

DS-2CD2443G2-I(2mm)

DS-2CD2443G2-I(4mm)

DS-2CD2443G2-I(2.8mm)

Camera
Image Sensor1/3" Progressive Scan CMOS
Max. Resolution2688 × 1520
Min. Illumination2 mm: color: 0.008 Lux @ (F2.0, AGC ON), B/W: 0 Lux with IR 2.8 mm and 4 mm: color: 0.005 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Focal Length & FOV2 mm, horizontal FOV 128.4°, vertical FOV 75.4°, diagonal FOV 147.1° 2.8 mm, horizontal FOV 104.3°, vertical FOV 55.9°, diagonal FOV 123.8° 4 mm, horizontal FOV 83.7°, vertical FOV 43°, diagonal FOV 100.3°
Aperture2 mm: F2.0 2.8 mm: F1.6 4 mm: F1.6
Lens MountM12

DORI
DORI2 mm: D: 45.5 m, O: 18.0 m, R: 9.1 m, I: 4.5 m 2.8 mm: D: 56.0 m, O: 22.2 m, R: 11.2 m, I: 5.6 m 4 mm: D: 79.4 m, O: 31.5 m, R: 15.9 m, I: 7.9 m

Illuminator
IR RangeUp to 10 m
Wavelength850 nm
Smart Supplement LightYes

Video
Main Stream50 Hz: 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 Kbps to 192 Kbps (MP2L2)/8 Kbps to 320 Kbps (MP3)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Wide Dynamic Range (WDR)120 dB
Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR
PIR AngleHorizontal: 90°, vertical: 80°
PIR RangeUp to 8 m

Interface
Built-in MicrophoneYes
Built-in SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception
LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Face DetectionYes

Deep Learning Function
Perimeter ProtectionLine crossing, intrusion Support alarm triggering by specified target types (human and vehicle)

General
Power12 VDC ± 25%, 0.49 A, max. 5.8 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.19 A to 0.12 A, max. 6.8 W
Web Client Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, password reset via email, pixelounter
Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Camera MaterialPlastic
Camera Dimension2 mm: 102.9 mm × 65.2 mm × 28.8 mm (4.1" × 2.6" × 1.1") 2.8 mm and 4 mm: 102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Camera WeightApprox. 120 g (0.3 lb.)
With Package WeightApprox. 430 g (0.9 lb.)

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
