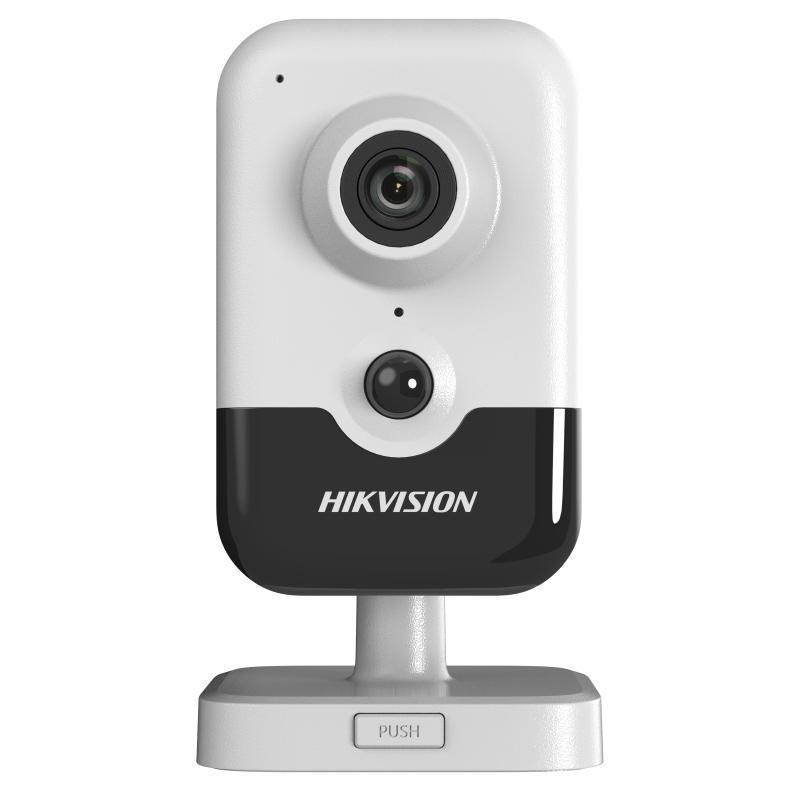

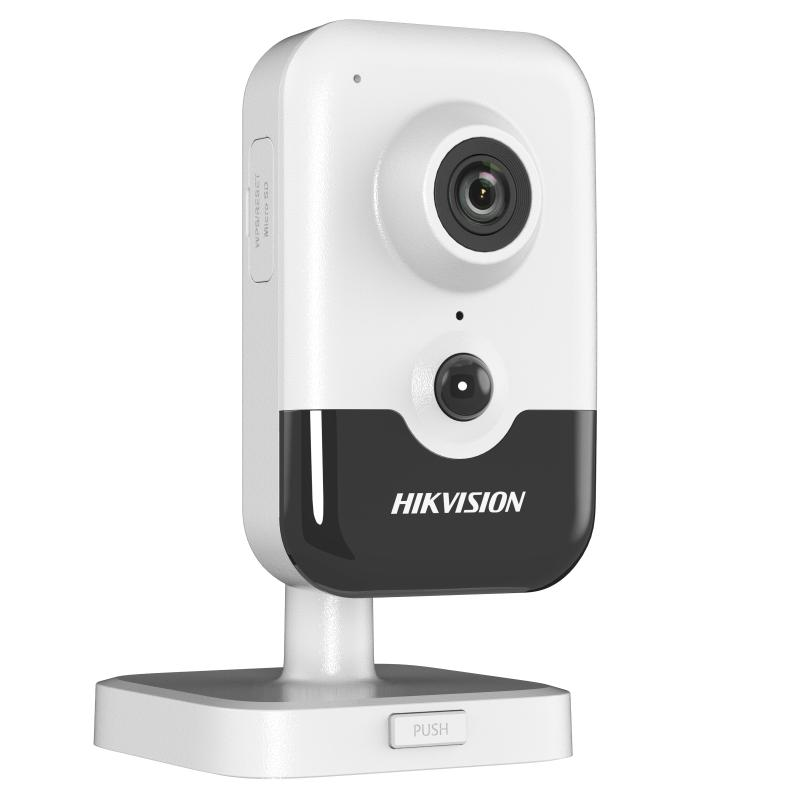

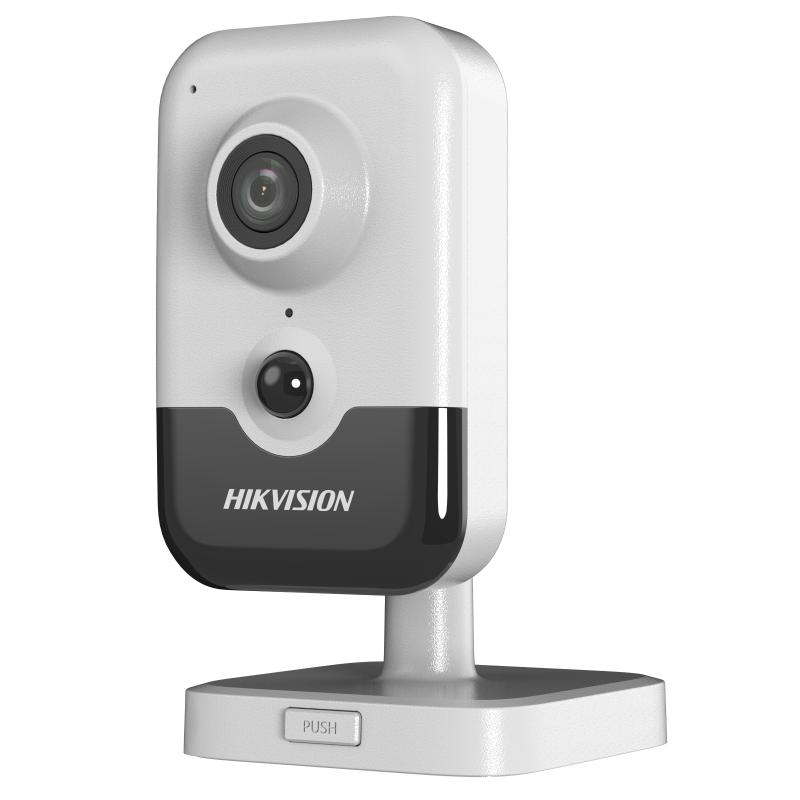

DS-2CD2466G2-I

6 MP AcuSense Fixed Cube Network Camera

High quality imaging with 6 MP resolution
Excellent low-light performance with powered by DarkFighter technology
Clear imaging against strong backlight due to 120 dB WDR technology
Efficient H.265+ compression technology
Focus on human and vehicle classification based on deep learning
Provide real-time security via built-in two-way audio
Detect human body through passive infrared which is sensitive to body temperature (PIR)

Available models:

DS-2CD2466G2-I(2.8mm)(C)

DS-2CD2466G2-I(4mm)(C)

Camera
Image Sensor1/1.8" Progressive Scan CMOS
Min. IlluminationColor: 0.003 Lux @ (F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR cut filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Focal Length & FOV2.8 mm, horizontal FOV 105.1°, vertical FOV 53.4°, diagonal FOV 128.6° 4 mm, horizontal FOV 83.9°, vertical FOV 44.5°, diagonal FOV 100.8°
ApertureF1.6
Lens MountM12

DORI
DORI2.8 mm: D: 78.6 m, O: 31.2 m, R: 15.7 m, I: 7.9 m 4 mm: D: 95.6 m, O: 37.9 m, R: 19.1 m, I: 9.6 m

Illuminator
IR RangeUp to 10 m
Wavelength850 nm
Smart Supplement LightYes

Video
Max. Resolution3200 × 1800
Main Stream50 Hz: 12.5 fps（3200 × 1800） 25 fps (2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 15 fps（3200 × 1800） 30 fps (2688 × 1520, 1920 × 1080, 1280 × 720)
Sub Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 × 1080, 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.265+ Sub-stream: H.265/MJPEG Third stream: H.265
Video Bit Rate32 Kbps to 16 Mbps
H.265 TypeMain Profile
H.265+Main stream supports
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Audio
Environment Noise FilteringYes
Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
Audio Compression G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/MP3/AAC
Audio Bit Rate64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/16 Kbps to 64 Kbps (AAC)/32 Kbps to 192 Kbps (MP2L2)/8 Kbps to 320 Kbps (MP3)

Network
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Day/Night SwitchDay, Night, Auto, Schedule
Image EnhancementBLC, HLC, 3D DNR
Image Parameters SwitchYes
Image SettingsMirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser

PIR
PIR AngleHorizontal: 90°, vertical: 80°
PIR RangeUp to 8 m

Interface
Built-in MicrophoneYes
Built-in SpeakerPower: 1 W. Max. sound pressure level: 10 cm: 91 dB.
On-board StorageBuilt-in memory card slot, support microSD/SDHC/SDXC card, up to 256 GB
Hardware ResetYes
Communication Interface1 RJ45 10 M/100 M self-adaptive Ethernet port

Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception
Smart EventScene change detection

Deep Learning Function
Face CaptureYes
Perimeter ProtectionLine crossing detection, intrusion detection, region entrance detection, region exiting detection Supports human and vehicle targets classification

General
Linkage MethodUpload to FTP/memory card/NAS, notify surveillance center, trigger recording, trigger capture, send email, audible warning
Web Client Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, password reset via email, pixel counter
Storage Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-10 °C to 40 °C (14 °F to 104 °F). Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25% PoE: 802.3af, Class 3
Power Consumption and Current12 VDC, 0.51 A, max. 6.1 W PoE (802.3af, 36 V to 57 V), 0.13 A to 0.20 A, max. 7.1 W
Power InterfaceØ5.5 mm coaxial power plug
Camera MaterialPlastic
Camera Dimension102.9 mm × 65.2 mm × 32.6 mm (4.1" × 2.6" × 1.3")
Package Dimension150 mm × 125 mm × 99 mm (5.9" × 4.9" × 3.9")
Camera WeightApprox. 120 g (0.3 lb.)
With Package WeightApprox. 370 g (0.8 lb.)

Approval
EMCFCC SDoC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014)
EnvironmentCE-RoHS (2011/65/EU) WEEE (2012/19/EU) Reach (Regulation (EC) No 1907/2006)
