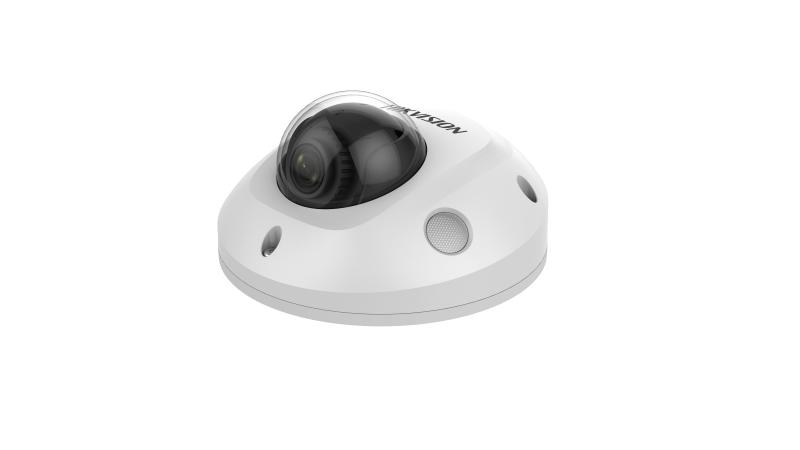

DS-2CD2525FWD-I(W)(S)

2 MP Powered-by-DarkFighter Fixed Mini Dome Network Camera

High quality imaging with 2 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-W: Wi-Fi connection
-S: built-in microphone, audio and alarm interface available
Water and dust resistant (IP66) and vandal proof (IK08)
Mini size suitable for limited space

Available models:

DS-2CD2525FWD-I(2.8mm)

DS-2CD2525FWD-I(4mm)

DS-2CD2525FWD-IS(2.8mm)

DS-2CD2525FWD-IS(4mm)

DS-2CD2525FWD-IS(2.8mm)(BLACK)

DS-2CD2525FWD-IWS(2.8mm)(D)

Camera
Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.009 lux @(F1.6, AGC ON), 0 lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens
FocusFixed
Lens Type2.8, 4, 6 mm
FOV2.8 mm: horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 129° 4 mm: horizontal FOV: 87°, vertical FOV: 45°, diagonal FOV: 102° 6 mm: horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 60°
ApertureF1.6
Lens MountM12

Illuminator
IR RangeUp to 10 m
Wavelength850 nm

Video
Max. Resolution1920 × 1080
Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264 /MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)Support H.264 and H.265 encoding
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately

Audio
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users. 3 levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ClientWired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central *Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login

Wi-Fi
Encryption Mode-W: WPA, WPA2
Wi-Fi Protocol-W: IEEE 802.11b/g/n
Frequency Range-W: 2.412 GHz to 2.4835 GHz
Channel Bandwidth -W: 20 MHz
Transfer Rate-W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Wireless Range-W: Up to 50 m (The performance varies based on actual environment)

Day/Night SwitchDay/Night/Auto/Schedule/ Triggered by Alarm In (-S)
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface
Audio-S: 2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block
Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face DetectionYes
Exception DetectionScene change detection

General
Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware VersionV5.6.5
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25% PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.7 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9.5 W
Camera DimensionØ120 mm × 67.4 mm (Ø4.7" × 2.7")
Camera WeightCamera: approx. 400 g (0.88 lb.)

Approval
ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)

Camera

Image Sensor1/2.8" Progressive Scan CMOS
Min. IlluminationColor: 0.009 lux @(F1.6, AGC ON), 0 lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120 dB
Day & NightIR Cut Filter
Angle AdjustmentPan: -30° to 30°, tilt: 0° to 75°, rotate: 0° to 360°

Lens

FocusFixed
Lens Type2.8, 4, 6 mm
FOV2.8 mm: horizontal FOV: 108°, vertical FOV: 59°, diagonal FOV: 129° 4 mm: horizontal FOV: 87°, vertical FOV: 45°, diagonal FOV: 102° 6 mm: horizontal FOV: 53°, vertical FOV: 29°, diagonal FOV: 60°
ApertureF1.6
Lens MountM12

Illuminator

IR RangeUp to 10 m
Wavelength850 nm

Video

Max. Resolution1920 × 1080
Main Stream50Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288) 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264 /MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)Support H.264 and H.265 encoding
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream separately

Audio

Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G722.1/G711/G726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

Simultaneous Live ViewUp to 6 channels
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
User/HostUp to 32 users. 3 levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
Network StorageSupport Micro SD/SDHC/SDXC card (128 GB), local storage and NAS (NFS, SMB/CIFS), ANR
ClientWired network: Hik-Connect, iVMS-4200, Hik-Central Wi-Fi: iVMS-4200, Hik-Central *Wi-Fi connection with Hik-Connect directly is not possible.
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, HDD full, HDD error, illegal login

Wi-Fi

Encryption Mode-W: WPA, WPA2
Wi-Fi Protocol-W: IEEE 802.11b/g/n
Frequency Range-W: 2.412 GHz to 2.4835 GHz
Channel Bandwidth -W: 20 MHz
Transfer Rate-W: 11b: 11 Mbps 11g: 54 Mbps 11n: up to 150 Mbps
Wireless Range-W: Up to 50 m (The performance varies based on actual environment)


Day/Night SwitchDay/Night/Auto/Schedule/ Triggered by Alarm In (-S)
DNR3D DNR
Image EnhancementBLC/3D DNR/HLC
Image SettingsRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser

Interface

Audio-S: 2 inputs: line in or mic in (built-in microphone) 1 output: line out, mono sound, terminal block
Alarm -S: 1 input, 1 output (max. 12 VDC, 30 mA), terminal block
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
Face DetectionYes
Exception DetectionScene change detection

General

Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
Firmware VersionV5.6.5
Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25% PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.7 A, max. 7.5 W PoE (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 9.5 W
Camera DimensionØ120 mm × 67.4 mm (Ø4.7" × 2.7")
Camera WeightCamera: approx. 400 g (0.88 lb.)

Approval

ProtectionIngress protection: IP66 (IEC 60529-2013), IK08 (IEC 60529-2013)

Firmware

Firmware_V5.6.6_210625

Network Camera V5.6.6 Release Note --G1.pdf

Applied to:

DS-2CD2525FWD-I(2.8mm)

DS-2CD2525FWD-I(4mm)

DS-2CD2525FWD-IS(2.8mm)

DS-2CD2525FWD-IS(4mm)

DS-2CD2525FWD-IS(2.8mm)(BLACK)

DS-2CD2525FWD-IWS(2.8mm)(D)

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
