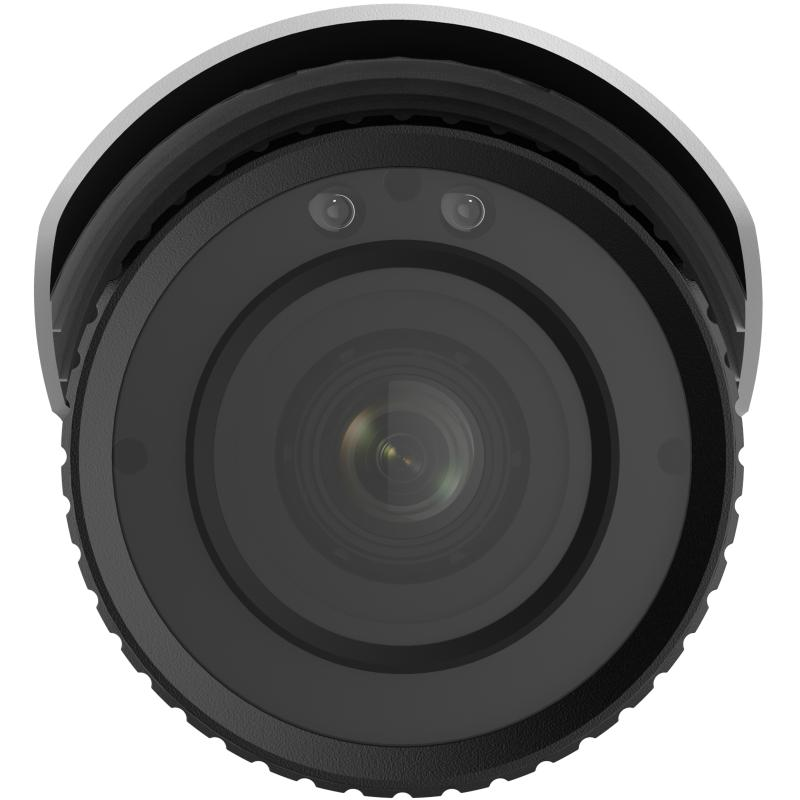

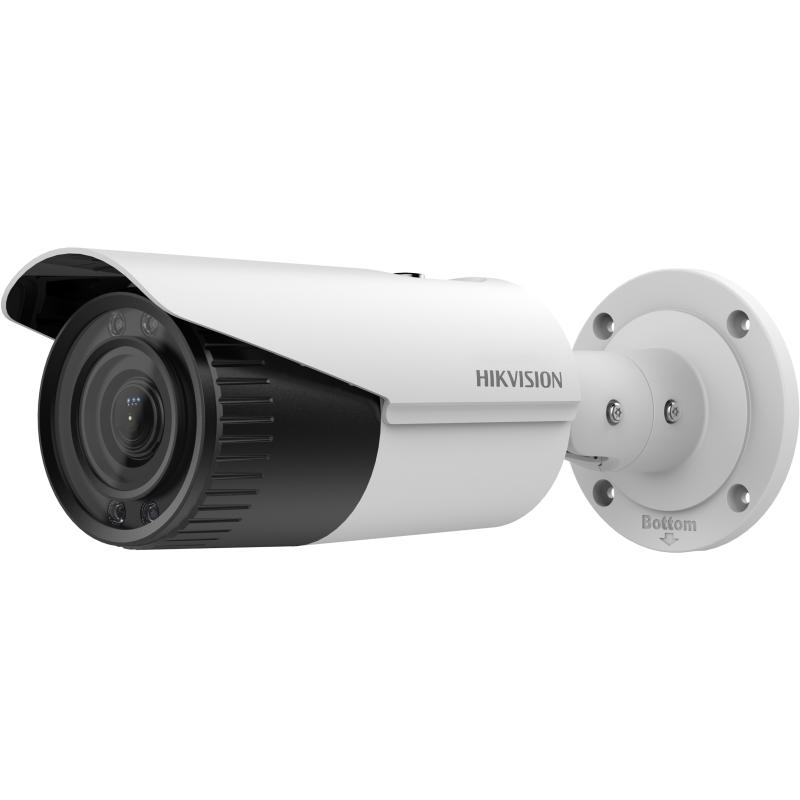

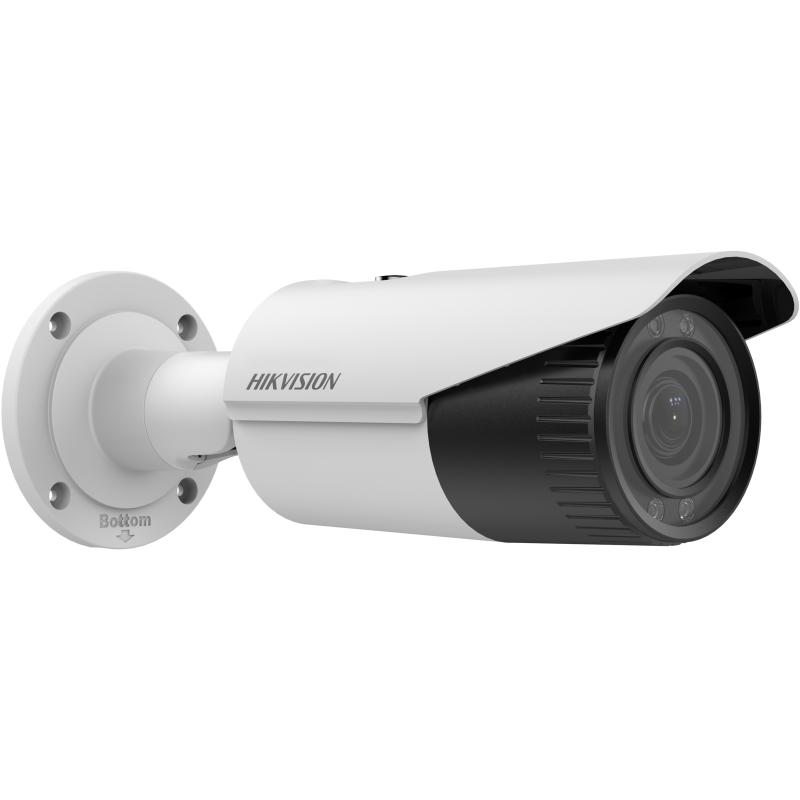

DS-2CD2621G0-I(Z)(S)

2 MP WDR Varifocal Bullet Network Camera

High quality imaging with 2 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-Z: motorized varifocal lens for easy installation and monitoring
-S: audio and alarm interface available
Water and dust resistant (IP67)
Robust structure design with full metal materials

Available models:

DS-2CD2621G0-IZ(2.8-12mm)(C)

DS-2CD2621G0-IZS(2.8-12mm)(C)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution1920 × 1080
Min. IlluminationColor: 0.005 Lux @(F1.6, AGC ON), B/W: 0 Lux with IR
Shutter Time1/3 s to 1/100,000 s
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 360°, tilt: 0° to 100°, rotation: 0° to 360°

Lens
Lens TypeVarifocal Lens, motorized lens, 2.8 to 12 mm
Focal Length & FOV2.8 to 12 mm: horizontal FOV 94° to 36°, vertical FOV 50° to 20°, diagonal FOV 109° to 42°
Lens MountØ14
Iris TypeFixed
ApertureF1.6

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 60 m
IR Wavelength850 nm

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360 ) 60 Hz: 30 fps (640 × 480, 640 × 360 )
Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 8 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Region of Interest (ROI)1 fixed region for main stream

Audio
Audio Compression -S: G.711ulaw/G.711alaw/G.722.1/G.726/MP2L2/PCM/AAC
Audio Bit Rate-S: 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 160 Kbps (MP2L2)/16 to 64 Kbps (AAC)
Audio Sampling Rate-S: 8 kHz/16 kHz
Environment Noise Filtering-S: Yes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP™, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface, ISAPI
User/HostUp to 32 users. 3 levels: administrator, operator and user
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE 10+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image SettingsRotate mode, saturation, brightness, contrast, sharpness adjustable by client software or web browser
Day/Night SwitchAuto, Schedule, Day, Night
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD card, up to 256 GB
Audio-S: 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input impedance: 4.7 KΩ, interface type: non-equilibrium 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
Alarm -S: 1 input,1 output, (max. 12 VDC, 30 mA)
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, exception
Smart EventLine crossing detection, intrusion detection
Linkage-S: Upload to FTP, notify surveillance center, send email, upload to memory card, trigger recording, trigger capture, audible warning, trigger alarm output

General
Power12 VDC ± 25%, 0.9 A, max. 11 W, Ø5.5 mm coaxial power plug PoE: (802.3af, Class 3, 36 V to 57 V), 0.23 A to 0.36 A, max. 12.9 W
MaterialMetal
DimensionØ105 mm × 294.5 mm (4.1" × 11.6")
Package Dimension386 mm × 156 mm × 155 mm (15.2" × 6.1" × 6.1")
Approx. 1050 g (2.3 lb.)
With Package WeightApprox. 1500 g (3.3 lb.)
Storage Conditions-30 °C to +60 °C (-22 °F to +140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
Language33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter

Approval
EMCFCC SDoC: 47 CFR Part 15, Subpart B; CE-EMC: EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; RCM: AS/NZS CISPR 32: 2015; IC VoC: ICES-003: Issue 6, 2016; KC: KN 32: 2015, KN 35: 2015
SafetyUL: UL 60950-1; CB: IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; CE-LVD: EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IEC 62368-1:2014; BIS: IS 13252(Part 1):2010+A1:2013+A2:2015
EnvironmentCE-RoHS: 2011/65/EU; WEEE: 2012/19/EU; Reach: Regulation (EC) No 1907/2006
ProtectionIP67: IEC 60529-2013
