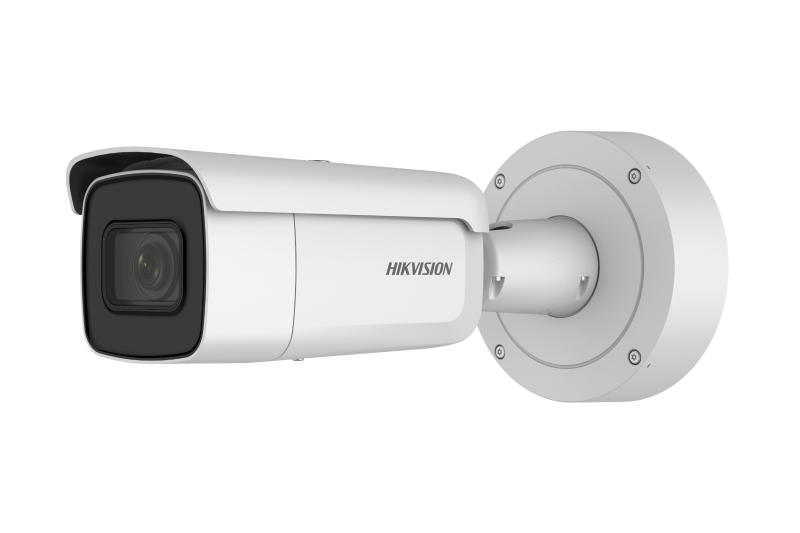

2 MP High Frame Rate Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • High frame rate video to illustrate smooth movement
  • Water and dust resistant (IP66) and vandal proof (IK10)
  • Motorized vari-focal lens for easy installation and monitoring
  • Robust structure design with full metal materials.

Available models:

DS-2CD2625FHWD-IZS(2.8-12mm)

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day &NightIR Cut Filter
  • Wide Dynamic Range120 dB
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • DNR3D DNR
  • Lens
  • Lens2.8 to 12 mm;Motorized
  • ApertureF1.4
  • FocusAuto
  • FOVHorizontal field of view: 105° to 35°,Vertical field of view: 56° to 20°,Diagonal field of view: 126° to 40.5°
  • Lens MountΦ14
  • Illuminator
  • IR RangeUp to 50 m
  • Wavelength850nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720),60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
  • Video CompressionMain stream: H.265/H.264,Sub stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • Video Bit Rate32 Kbps to 16 Mbps
  • SVCH.264 and H.265 encoding
  • Audio
  • Audio CompressionG722.1/G.711/G726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHz/48kHz
  • Smart Feature-Set
  • Smart EventLine crossing detection, intrusion detection, unattended baggage, object removal, face detection, scene change detection
  • Basic EventMotion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Behavior AnalysisLine crossing detection, intrusion detection, unattended baggage detection, object removal detection
  • Region of InterestSupport 1 fixed region for main stream and sub stream
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Image
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingRotate mode, saturation, brightness, contrast, sharpness and white balance adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error, Alarm input, Alarm output
  • Interface
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Audio1 input (line in, 3.5 mm), 1 output (3.5 mm), mono sound
  • Alarm1 input, 1 output (max. 12 VDC, 30 mA), terminal block
  • Video Output1Vp-p composite output (75 Ω) (For adjustment only)
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Approval
  • Impact ProtectionIK10
  • Compression Standard
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Smart Feature-set
  • Face DetectionYes
  • Exception DetectionScene change detection
  • General
  • Firmware VersionV5.5.80
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • ResetYes
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, PoE (802.3at),Terminal block for DC input
  • Power Consumption and Current12 VDC, 1.3A, max. 15.5W,PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 17.5W
  • MaterialMetal
  • DimensionsΦ144.13×332.73 mm (Φ5.67"× 13.10")
  • Camera: Approx. 1890 g (4.17 lb.)
  • Interface ProtectionIP66

Specification

Firmware
Applied to:
DS-2CD2625FHWD-IZS(2.8-12mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
