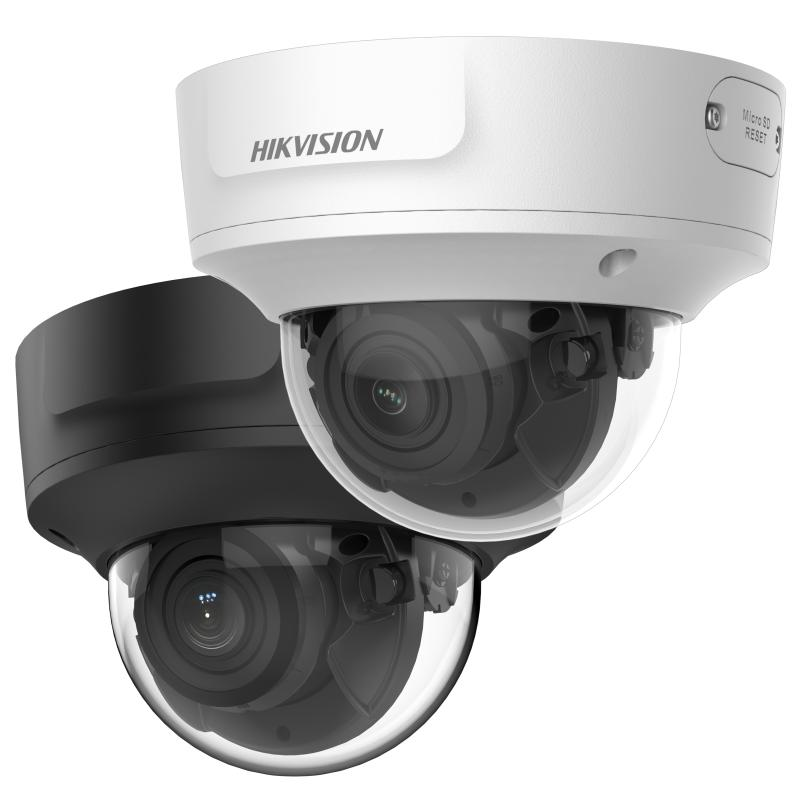

2 MP Outdoor WDR Motorized Varifocal Dome Network Camera

  • High quality imaging with 2 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials

Available models:

DS-2CD2723G1-IZS(2.8-12mm)
DS-2CD2723G1-IZ(2.8-12mm)

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusAuto
  • Lens Type2.8 to 12 mm, Motorized
  • FOVhorizontal FOV: 110° to 31°,vertical FOV: 58° to 18°,diagonal FOV: 136° to 36°
  • ApertureF1.6
  • Lens MountΦ14
  • Aperture TypeFixed
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution1920 × 1080
  • Main Stream50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720),60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1920 × 1080, 1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by alarm in (-S)
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, face detection
  • Face DetectionYes
  • Interface
  • Audio-S: 1 input (line in/mic.in), 1 output (line out), mono sound, terminal block
  • Alarm -S: 1 input; 1 output (max. 12 VDC, 30 mA), terminal block
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Video Output1 Vp-p Composite Output(75Ω) (For adjustment only)
  • General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Firmware Version5.6.3
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, terminal block,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.35A to 0.2A, max. 12W
  • Camera DimensionCamera: Φ 153.3 × 111.6mm (Φ 6" × 4.4")
  • Camera WeightCamera: Approx. 835g (1.8 lb.),With Package: Approx. 1305g (2.9 lb.)
  • Approval
  • ProtectionIP67, IK10

Specification

Firmware
Applied to:
DS-2CD2723G1-IZS(2.8-12mm)
DS-2CD2723G1-IZ(2.8-12mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
