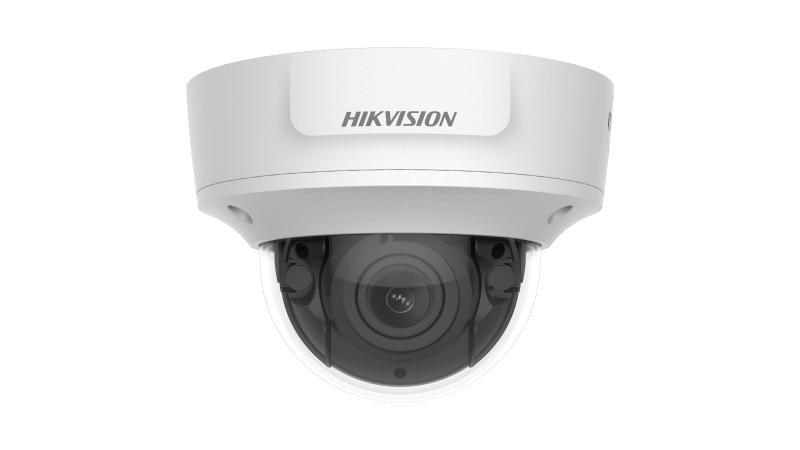

DS-2CD2783G1-IZ(S)

4K Outdoor WDR Motorized Varifocal Dome Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
-S: audio and alarm interface available
Water and dust resistant (IP67) and vandal proof (IK10)
Motorized varifocal lens for easy installation and monitoring
Robust structure design with full metal materials

Available models:

DS-2CD2783G1-IZS(2.8-12mm)

DS-2CD2783G1-IZ(2.8-12mm)

DS-2CD2783G1-IZS(2.8-12mm)(BLACK)

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens
FocusAuto
Lens Type2.8 to 12 mm，Motorized
FOVHorizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
ApertureF1.6
Lens MountΦ14
Aperture TypeFixed

Illuminator
IR RangeUp to 30 m
Wavelength850nm

Video
Max. Resolution3840 × 2160
Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio
Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3

Network
Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users ,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Wi-Fi
Encryption ModePassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2

Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Target CroppingNo
DNR3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface
Audio1 input (line in), 1 output (line out), mono sound, terminal block
Alarm 1 input;1 output (max. 12 VDC, 30 mA), terminal block
Video Output1Vp-p composite output (75 Ω) (For adjustment only)
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General
Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
Camera DimensionCamera: Φ 153.3 × 111.6mm (Φ 6" × 4.4")
Camera WeightCamera: Approx. 835g (1.8 lb.),With Package: Approx. 1305g (2.9 lb.)

Approval
ProtectionIK10, IP67

Camera

Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01 Lux @ (F1.2, AGC ON), 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Shutter Speed1/3 s to 1/100,000 s
Slow ShutterYes
Wide Dynamic Range120dB
Day & NightIR Cut Filter
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°

Lens

FocusAuto
Lens Type2.8 to 12 mm，Motorized
FOVHorizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
ApertureF1.6
Lens MountΦ14
Aperture TypeFixed

Illuminator

IR RangeUp to 30 m
Wavelength850nm

Video

Max. Resolution3840 × 2160
Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third Stream50Hz: 25fps (1280 ×720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Main stream supports
H.265+Main stream supports
Scalable Video Coding (SVC)H.264 and H.265 encoding support

Audio

Environment Noise FilteringYes
Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3

Network

Simultaneous Live ViewUp to 6 channels
User/HostUp to 32 users ,3 levels: Administrator, Operator and User
Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error

Wi-Fi

Encryption ModePassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2


Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
Target CroppingNo
DNR3D DNR
Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser

Interface

Audio1 input (line in), 1 output (line out), mono sound, terminal block
Alarm 1 input;1 output (max. 12 VDC, 30 mA), terminal block
Video Output1Vp-p composite output (75 Ω) (For adjustment only)
On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
Hardware ResetYes
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Event

Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)

General

Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
Power Consumption and Current12 VDC, 0.8A, max. 10W,PoE (802.3af, 36V to 57V), 0.4A to 0.2A, max. 12W
Camera DimensionCamera: Φ 153.3 × 111.6mm (Φ 6" × 4.4")
Camera WeightCamera: Approx. 835g (1.8 lb.),With Package: Approx. 1305g (2.9 lb.)

Approval

ProtectionIK10, IP67

Data Sheet

Quick Start Guide

User Manual

FAQ

Firmware

Firmware_V5.6.6_210625

Network Camera V5.6.6 Release Note --G1.pdf

Applied to:

DS-2CD2783G1-IZS(2.8-12mm)

DS-2CD2783G1-IZ(2.8-12mm)

DS-2CD2783G1-IZS(2.8-12mm)(BLACK)

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
