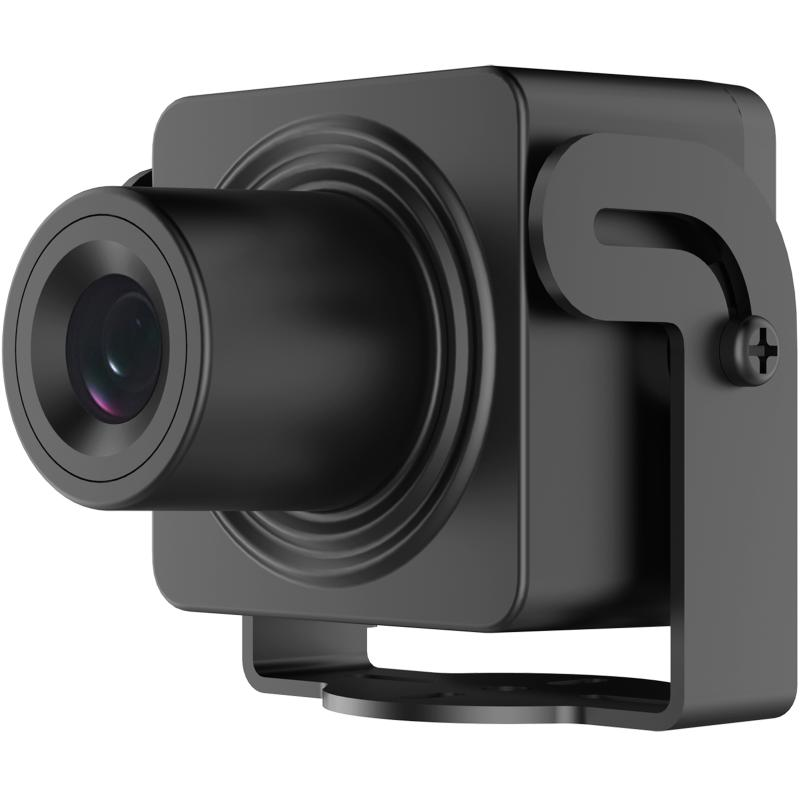

Covert Network Camera

  • High quality imaging with 4 MP resolution
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • 3D DNR technology delivers clean and sharp images

Available models:

DS-2CD2D45G1/M-D/NF(2.8mm)
DS-2CD2D45G1/M-D/NF(4mm)

Specification

  • Camera
  • Image Sensor1/3" Progressive Scan CMOS
  • Max. Resolution2560 × 1440
  • Min. IlluminationColor: 0.005 Lux @ (F1.2, AGC ON)
  • Shutter Time1/3 s to 1/100,000 s
  • Lens
  • Focal Length & FOV2.8 mm: horizontal FOV: 98°, vertical FOV: 53°, diagonal FOV: 115° 4 mm: horizontal FOV: 75°, vertical FOV: 41.5°, diagonal FOV: 88°
  • Lens MountM12
  • Iris TypeFixed
  • Aperture2.8 mm: F2.0 4 mm: F2.0
  • DORI
  • DORI2.8 mm: D: 62 m, O: 24.6 m, R: 12.4 m, I: 6.2 m 4 mm: D: 80 m, O: 31.7 m, R: 16 m, I: 8 m
  • Video
  • Main Stream50 Hz: 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720) 60 Hz: 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360, 320 × 240) 60 Hz: 30 fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240) 60 Hz: 1 fps (1280 × 720, 640 × 480, 640 × 360, 320 × 240)
  • Video Compression Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
  • H.264 TypeBaseline Profile/Main Profile/High Profile
  • H.265 TypeMain Profile
  • Bit Rate ControlCVR/BVR
  • Scalable Video Coding (SVC)H.264 and H.265 encoding
  • Region of Interest (ROI)Support 1 fixed region for main stream
  • Audio
  • Audio TypeMono
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM/AAC
  • Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps (MP2L2)/16 to 64 Kbps (AAC)
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • Simultaneous Live ViewUp to 15 channels
  • APIOpen Network Video Interface, ISAPI, SDK, ISUP 5.0
  • User/HostUp to 32 users 3 level: administrator, operator, and user
  • Network StorageNAS (NFS, SMB/CIFS)
  • ClientiVMS-4200, Hik-Connect
  • Web BrowserPlug-in required live view: IE10, IE11 Plug-in free live view: Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+
  • Image
  • Image Parameters SwitchYes
  • Image SettingsSaturation, brightness, contrast, and sharpness adjustable by client software or web browser
  • Day/Night SwitchDay, Night, Auto, Schedule
  • Wide Dynamic Range (WDR)120 dB
  • Image EnhancementBLC, HLC, defog, 3D DNR
  • Privacy MaskYes
  • Interface
  • Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
  • Audio1 input (line in), 1 output (line out)
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (HDD full, HDD error, network disconncected), video quality diagnosis
  • Smart EventIntrusion detection, line crossing detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection, defocus detection, scene change detection
  • LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger recording, trigger capture, audible warning
  • General
  • Power12 VDC ± 20%, 0.13 A, max. 1.5 W, Ø5.5 mm coaxial power plug
  • Dimension31.5 mm × 31.5 mm × 49.6 mm (1.2" × 1.2" × 2")
  • Package Dimension130 mm × 104 mm × 85 mm (5.1" × 4.1" × 3.3")
  • Approx. 93 g (0.2 lb.)
  • With Package WeightApprox. 202 g (0.4 lb.)
  • Storage Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Startup and Operating Conditions -30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
  • Language18 languages: English, Traditional Chinese, Russian, Turkish, Japanese, Korean, Thai, Vietnamese, Estonian, Bulgarian, Hungarian, Czech, Slovak, French, Italian, German, Spanish, Portuguese
  • General FunctionOne-key reset, heartbeat, mirror, password protection, privacy mask, rotate, watermark, IP address filter
  • Approval
  • EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EEN 61000-3-3:2013+A1:2019, EN 50130-4: 2011+A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7); KC (KN 32: 2015, KN 35: 2015)
  • SafetyUL (UL 62368-1); CB (IEC 62368-1:2014+A11); CE-LVD (EN 62368-1:2014/A11:2017); BIS (IS 13252(Part 1):2010/ IEC 60950-1 : 2005); LOA (IEC/EN 60950-1)
  • EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)

Specification

Firmware
Applied to:
DS-2CD2D45G1/M-D/NF(2.8mm)
DS-2CD2D45G1/M-D/NF(4mm)
