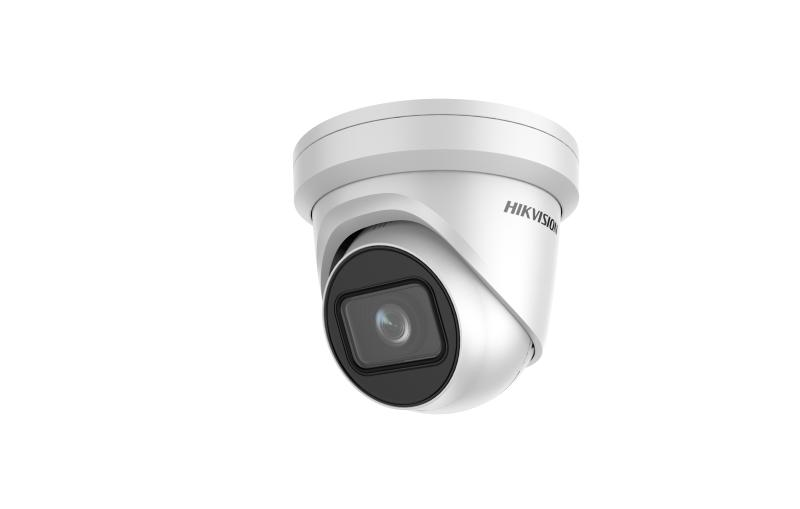

4K Outdoor WDR Motorized Varifocal Turret Network Camera

  • High quality imaging with 8 MP resolution
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 120 dB true WDR technology
  • -S: audio and alarm interface available
  • Water and dust resistant (IP67) and vandal proof (IK10)
  • Motorized varifocal lens for easy installation and monitoring
  • Robust structure design with full metal materials

Available models:

DS-2CD2H83G1-IZS(2.8-12mm)
DS-2CD2H83G1-IZ(2.8-12mm)

Specification

  • Camera
  • Image Sensor1/2.5" Progressive Scan CMOS
  • Min. IlluminationColor: 0.018 Lux @ (F1.6, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Wide Dynamic Range120dB
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 355°, tilt: 0° to 75°, rotate: 0° to 355°
  • Lens
  • FocusAuto
  • FOVHorizontal field of view: 105° to 34.5°,Vertical field of view: 55° to 19°,Diagonal field of view: 125° to 40°
  • ApertureF1.6
  • Lens MountΦ14
  • Aperture TypeFixed
  • Illuminator
  • IR RangeUp to 30 m
  • Wavelength850nm
  • Video
  • Max. Resolution3840 × 2160
  • Main Stream50Hz: 12.5 fps (3840 × 2160), 20fps (3072 × 1728), 25 fps (2560 × 1440, 1920 × 1080, 1280 × 720),60Hz: 15 fps (3840 × 2160), 20fps (3072 × 1728), 30 fps (2560 × 1440, 1920 × 1080, 1280 × 720)
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240),60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • Third Stream50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288),60Hz: 30fps (1280 × 720, 640 × 360, 352 × 240)
  • Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,Third stream: H.265/H.264
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeMain Profile/High Profile
  • H.265 TypeMain Profile
  • H.264+Main stream supports
  • H.265+Main stream supports
  • Scalable Video Coding (SVC)H.264 and H.265 encoding support
  • Audio
  • Environment Noise FilteringYes
  • Audio Sampling Rate8kHz/16kHz/32kHz/44.1kHZ/48kHz
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
  • Network
  • Simultaneous Live ViewUp to 6 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, Bonjour
  • User/HostUp to 32 users,3 levels: Administrator, Operator and User
  • SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS 1.2, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, TLS1.2
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, Hik-Connect, iVMS-5200, iVMS-4500
  • Web BrowserPlug-in required live view: IE8+, Chrome 41.0-44, Firefox 30.0-51, Safari 8.0-11,Plug-in free live view: Chrome 45.0+, Firefox 52.0+
  • Alarm TriggerMotion detection, video tampering, network disconnected, IP address conflict, illegal login, HDD full, HDD error
  • Image
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In
  • Target CroppingNo
  • DNR3D DNR
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Interface
  • Audio1 input (line in, 3.5 mm), 1 output (line out, 3.5 mm), mono sound
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Event
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Smart EventLine crossing detection, intrusion detection, face detection
  • General
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, alarm output , Email
  • Web Client Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
  • General FunctionOne-key reset, anti-flicker, three streams, heartbeat, password protection, privacy mask, watermark, IP address filter
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ 5.5 mm coaxial power plug,PoE (802.3af, class 3)
  • Power Consumption and Current12 VDC, 0.92 A, max. 11 W; PoE (802.3af, 36 V to 57 V), 0.35 A to 0.22 A, max. 12. 5W
  • Camera DimensionCamera: Φ 138.3 × 126 mm (Φ 5.4" × 5.0")
  • Camera WeightCamera: Approx. 1.20 kg (2.65 lb.);With Package: Approx. 1.42 kg (3.13 lb.)
  • Approval
  • ProtectionIP67，IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

How to Install

Download Center

Data Sheet

Quick Start Guide

User Manual

FAQ
Firmware
Firmware_V5.6.6_210625
Network Camera V5.6.6 Release Note --G1.pdf
Applied to:
DS-2CD2H83G1-IZS(2.8-12mm)
DS-2CD2H83G1-IZ(2.8-12mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
