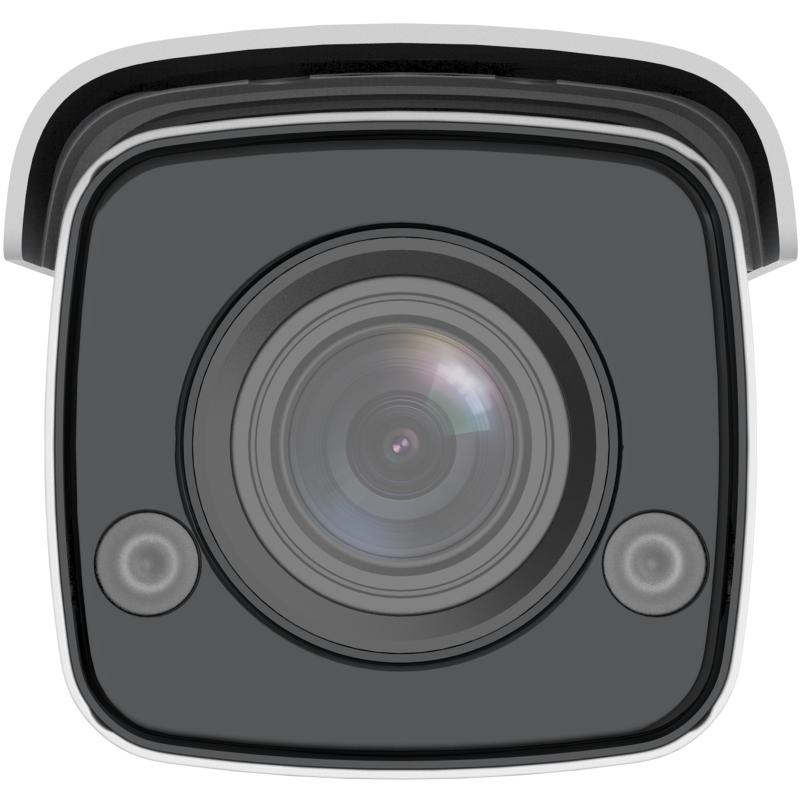

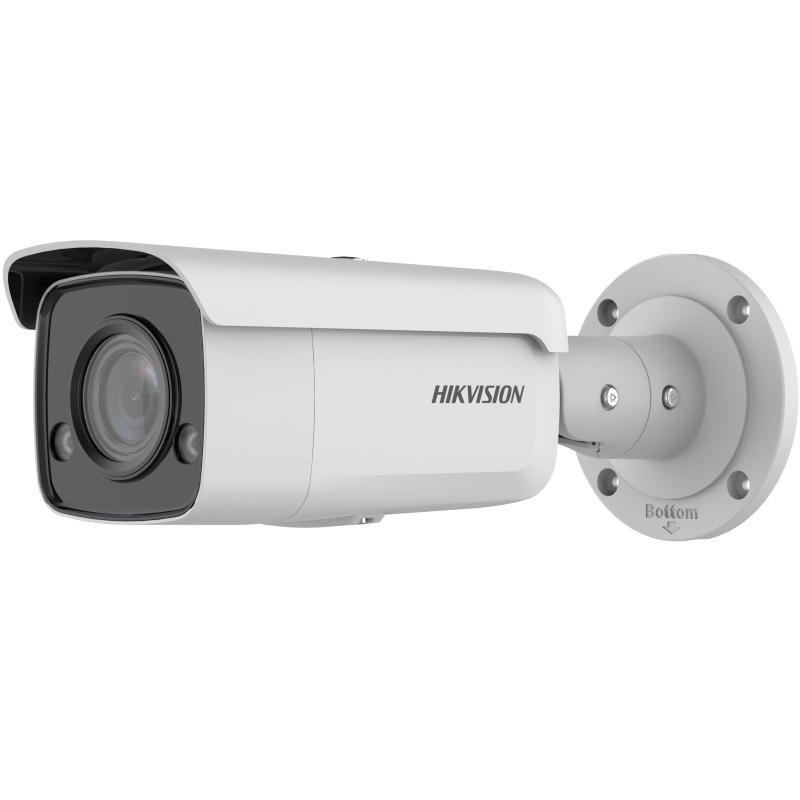

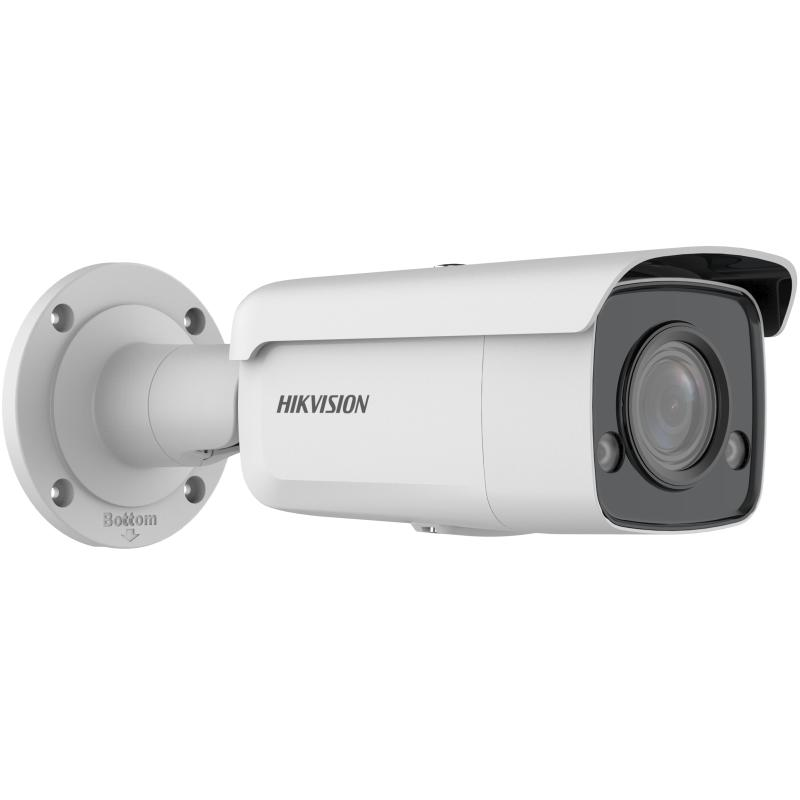

DS-2CD2T87G2-L

4 K ColorVu Fixed Bullet Network Camera

High quality imaging with 8 MP resolution
Efficient H.265+ compression technology
Clear imaging against strong back light due to 130 dB WDR technology
Focus on human and vehicle classification based on deep learning
24/7 colorful imaging

Available models:

DS-2CD2T87G2-L(2.8mm)(C)

DS-2CD2T87G2-L(4mm)(C)

DS-2CD2T87G2-L(6mm)(C)

DS-2CD2T87G2-L(2.8mm)(D)

DS-2CD2T87G2-L(4mm)(D)

DS-2CD2T87G2-L(6mm)(D)

Camera
Image Sensor1/1.2" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens
Focal Length & FOV2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124° 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 4.5 m to ∞ 4 mm: 7 m to ∞ 6 mm: 13 m to ∞

DORI
DORI2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminator
Supplement Light TypeWhite Light
Supplement Light Range60 m
Smart Supplement LightYes

Video
Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+

Image Parameters SwitchYes
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface
Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Reset KeyYes

Event
Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) Scene change detection
LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function
Face CaptureYes

General
Power12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, Class 3, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
DimensionØ105 × 289.5 mm (Ø4.1" × 11.4")
Package Dimension385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Approx. 1190 g (2.6 lb.)
With Package WeightApprox. 1700 g (3.7 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
SafetyUL (UL 62368-1); CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Camera

Image Sensor1/1.2" Progressive Scan CMOS
Max. Resolution3840 × 2160
Min. IlluminationColor: 0.0005 Lux @ (F1.0, AGC ON), 0 Lux with Light
Shutter Time1/3 s to 1/100,000 s
Angle AdjustmentPan: 0° to 355°, tilt: 0° to 90°, rotate: 0° to 360°

Lens

Focal Length & FOV2.8 mm: horizontal FOV102°, vertical FOV 52°, diagonal FOV 124° 4 mm: horizontal FOV 88°, vertical FOV 47°, diagonal FOV 104° 6 mm: horizontal FOV 54°, vertical FOV 30°, diagonal FOV 62°
Iris TypeFixed
ApertureF1.0
Depth of Field2.8 mm: 4.5 m to ∞ 4 mm: 7 m to ∞ 6 mm: 13 m to ∞

DORI

DORI2.8 mm, D: 96 m, O: 38 m, R: 19 m, I: 10 m 4 mm, D: 102 m, O: 41 m, R: 21 m, I: 11 m 6 mm, D: 167 m, O: 66 m, R: 33 m, I: 16 m

Illuminator

Supplement Light TypeWhite Light
Supplement Light Range60 m
Smart Supplement LightYes

Video

Main Stream50 Hz: 25 fps (3840 × 2160, 3200 × 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720) 60 Hz: 24 fps (3840 × 2160) 30 fps (3200 x 1800 , 2688 × 1520, 1920 × 1080, 1280 × 720)
Sub-Stream50 Hz: 25 fps (640 × 480, 640 × 360) 60 Hz: 30 fps (640 × 480, 640 × 360)
Third Stream50 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360) 60 Hz: 10 fps (1920 x 1080 , 1280 × 720, 640 × 480, 640 × 360)
Video Compression Main stream: H.265/H.264/H.264+/H.265+ Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)Yes
Region of Interest (ROI)1 fixed region for main stream and sub-stream

Network

ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, NTP, UPnP, SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP
Simultaneous Live ViewUp to 6 channels
APIOpen Network Video Interface (Profile S, Profile G, Profile T), ISAPI, SDK
User/HostUp to 32 users. 3 user levels: administrator, operator and user
SecurityPassword protection, complicated password, HTTPS encryption, IP address filter, Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2, WSSE and digest authentication for Open Network Video Interface
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, Hik-Connect, Hik-Central
Web BrowserPlug-in required live view: IE 10, IE 11 Plug-in free live view : Chrome 57.0+, Firefox 52.0+ Local service: Chrome 57.0+, Firefox 52.0+


Image Parameters SwitchYes
Image SettingsRotate, mirror, privacy mask, saturation, brightness, contrast, sharpness, gain, white balance adjustable by client software or web browser
Day/Night SwitchDay, Night, Auto, Schedule
Wide Dynamic Range (WDR)130 dB
SNR≥ 52 dB
Image EnhancementBLC, HLC, 3D DNR

Interface

Ethernet Interface1 RJ45 10 M/100 M self-adaptive Ethernet port
On-Board StorageBuilt-in memory card slot, support microSD/microSDHC/microSDXC/TF card, up to 256 GB
Reset KeyYes

Event

Basic Event Motion detection (human and vehicle targets classification), video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing, intrusion, region entrance, region exiting (support alarm triggering by specified target types (human and vehicle)) Scene change detection
LinkageUpload to FTP/memory card/NAS, notify surveillance center, trigger record, trigger capture, send email

Deep Learning Function

Face CaptureYes

General

Power12 VDC ± 25%, 0.7 A, max. 8.5 W, Ø5.5 mm coaxial power plug, reverse polarity protection PoE: (802.3af, Class 3, 36 V to 57 V), 0.27 A to 0.17 A, max. 9.5 W
DimensionØ105 × 289.5 mm (Ø4.1" × 11.4")
Package Dimension385 × 190 × 180 mm (15.2" × 7.5" × 7.1")
Approx. 1190 g (2.6 lb.)
With Package WeightApprox. 1700 g (3.7 lb.)
Storage Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Language33 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General FunctionAnti-flicker, heartbeat, password reset via e-mail, pixel counter

Approval

EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2:2019, EN 61000-3-3:2013+A1:2019, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 7)
SafetyUL (UL 62368-1); CB (IEC 62368-1:2014+A11) CE-LVD (EN 62368-1:2014/A11:2017)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIP67 (IEC 60529-2013)

Data Sheet

Quick Start Guide

User Manual

FAQ

Firmware

Firmware_V5.7.3_220112

Network Camera V5.7.3_220112 Release Note --G5.pdf

Applied to:

DS-2CD2T87G2-L(2.8mm)(C)

DS-2CD2T87G2-L(4mm)(C)

DS-2CD2T87G2-L(6mm)(C)

Firmware_V5.7.1_220309

Applied to:

DS-2CD2T87G2-L(2.8mm)(D)

DS-2CD2T87G2-L(4mm)(D)

DS-2CD2T87G2-L(6mm)(D)

*For better user experience, we highly recommend you to update your device to the latest firmware asap.
