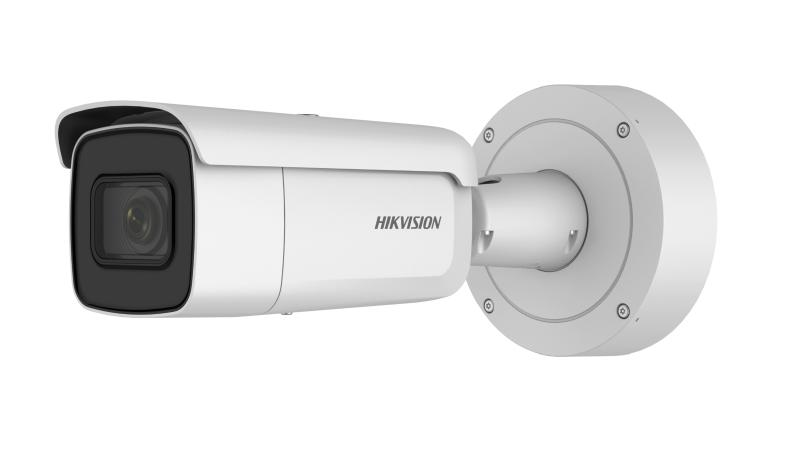

2MP Powered by darkfighter Moto Varifocal Bullet Network Camera

  • High quality imaging with 2 MP resolution
  • Excellent low-light performance via powered-by-DarkFighter technology
  • Efficient H.265+ compression technology to save bandwidth and storage
  • Clear imaging even against strong back light thanks to 120 dB true WDR technology
  • Water and dust resistant (IP67) and vandal proof (IK10).

Available models:

DS-2CD3625G1-IZS(2.7-13.5mm)(B)

Specification

  • Camera
  • Image Sensor1/2.8" Progressive Scan CMOS
  • Min. IlluminationColor: 0.0068 Lux @ (F1.4, AGC ON), 0 Lux with IR
  • Shutter Speed1/3 s to 1/100,000 s
  • Slow ShutterYes
  • Day & NightIR Cut Filter
  • Angle AdjustmentPan: 0° to 360°, tilt: 0° to 90°, rotate: 0° to 360°
  • Wide Dynamic Range120 dB
  • Lens
  • Lens Type2.7 to 13.5 mm
  • ApertureF1.4
  • FocusAuto
  • FOVHorizontal field of view: 107° to 33° Vertical field of view: 57° to 19° Diagonal field of view: 129° to 37.5°
  • Lens MountΦ14
  • Illuminator
  • IR RangeUp to 60 m
  • Wavelength850 nm
  • Video
  • Max. Resolution1920 × 1080
  • H.264 TypeMain Profile/High Profile
  • Main Stream50Hz: 50fps (1920 × 1080, 1280 × 960, 1280×720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280×720)
  • H.264+Main stream supports
  • Sub Stream50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
  • H.265 TypeMain Profile
  • Region of Interest (ROI)5 fixed region for main stream and sub-stream
  • Third Stream50Hz: 25fps (1920 × 1080, 1280×720, 640 × 360, 352 × 288) 60Hz: 30fps (1920 × 1080, 1280×720, 640 × 360, 352 × 240)
  • H.265+Main stream supports
  • Video Bit Rate32 Kbps to 16 Mbps
  • Video Compression Main stream: H.265/H.264 Sub-stream/third stream: H.265/H.264/MJPEG
  • Audio
  • Audio Compression G722.1/G.711/G726/MP2L2/PCM/MP3
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)/8Kbps-320Kbps(MP3)
  • Environment Noise FilteringYes
  • Audio Sampling Rate8 kHz/16 kHz/32 kHz/44.1 kHz/48 kHz
  • Network
  • Network StorageSupport Micro SD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ProtocolsTCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
  • APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
  • Simultaneous Live ViewUp to 6 channels
  • User/HostUp to 32 users, 3 levels: administrator, operator and user
  • ClientiVMS-4200, Hik-Connect, Hik-Central
  • Web BrowserPlug-in required live view: IE8+ Plug-in free live view: Chr2ome 57.0+, Firefox 52.0+, Safari 11+ Local Service: Chrome 41.0+, Firefox 30.0+
  • Image
  • Image EnhancementBLC/3D DNR/HLC
  • Image SettingsRotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Interface
  • Audio1 input (line in, 3.5 mm), 1 output(3.5 mm), single track
  • Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port
  • Alarm 1 input, 1 output (max. 12 VDC, 30 mA)
  • Video Output1Vp-p composite output (75 Ω/BNC) (For adjustment only)
  • On-board StorageBuilt-in Micro SD/SDHC/SDXC slot, up to 128 GB
  • Hardware ResetYes
  • Event
  • Smart EventLine crossing detection, up to 1 line configurable Intrusion detection, up to 1 region configurable Unattended baggage detection, up to 1 region configurable Object removal detection, up to 1 region configurable Face detection: detects faces Scene change detection
  • Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
  • Exception DetectionScene change detection
  • Face DetectionYes
  • General
  • Startup and Operating Conditions-30 °C to +60 °C (-22 °F to +140 °F), Humidity 95% or less (non-condensing)
  • Power Supply12 VDC ± 25%, Φ5.5mm coaxial power plug; PoE (802.3at)
  • Power Consumption and Current12 VDC, 1.2A, max. 14.5W PoE (802.3at, 42.5V to 57V), 0.5A to 0.1A, max. 16.5W
  • General FunctionAnti-flicker, three streams, heartbeat, mirror, privacy masks, password reset via e-mail, pixel counter, HTTP listening
  • Camera MaterialMetal
  • Camera DimensionCamera: Φ140 × 334.6 mm (Φ5.5"× 13.2")
  • Camera WeightCamera: 1300 g (2.9 lb.) With package: 2000 g (4.4 lb.)
  • AccessoryThe junction box is included in the package
  • Linkage MethodTrigger recording: memory card, network storage, pre-record and post-record Trigger captured pictures uploading: FTP, HTTP, NAS, Email Trigger notification: HTTP, ISAPI, Email
  • Approval
  • EMC47 CFR Part 15, Subpart B; EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014; AS/NZS CISPR 32: 2015; ICES-003: Issue 6, 2016; KN 32: 2015, KN 35: 2015
  • SafetyUL 60950-1, IEC 60950-1:2005 + Am 1:2009 + Am 2:2013, EN 60950-1:2005 + Am 1:2009 + Am 2:2013, IS 13252(Part 1):2010+A1:2013+A2:2015
  • Environment2011/65/EU, 2012/19/EU, Regulation (EC) No 1907/2006
  • ProtectionIngress protection: IK10 (IEC 62262:2002), IP67 (IEC 60529-2013)
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Download Center

Data Sheet

Quick Start Guide

User Manual

FAQ
Firmware
Firmware_V5.6.6_210827
Applied to:
DS-2CD3625G1-IZS(2.7-13.5mm)(B)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
