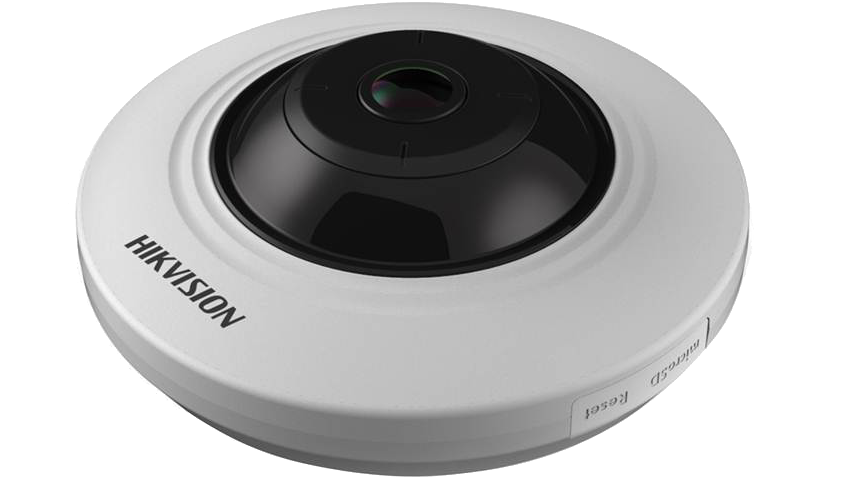

DS-2CD3955G0-IS

5MP Fixed Fisheye Network Camera

High quality imaging with 5 MP resolution
Excellent low-light performance via powered-by-DarkFighter technology
Efficient H.265+ compression technology to save bandwidth and storage
Clear imaging even against strong back light thanks to 120 dB true WDR technology.

Available models:

DS-2CD3955G0-IS(1.05mm)

Camera
Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic Range120 dB
Day & NightIR cult filter with auto switch

Lens
Lens Type1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
Lens MountM12

Video
Max. Resolution2560 × 1920
Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Sub-Stream50Hz: 25fps (704 × 576, 352× 288) 60Hz: 30fps (704 × 480, 352× 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Support
H.265+Support
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream

Audio
Environment Noise FilteringSupport
Audio Sampling Rate16kHZ
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network
APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6

Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
DNR3D DNR
Image EnhancementWDR/3D DNR/Backlight Compensation/Defog
Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser
Display ModeSupport 14 display modes in total (including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Interface
AudioSupport
Alarm 1 alarm input, 1 alarm output (12VDC 30mA, max.)
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Deep Learning Function
DetectionMotion detection, dynamic analysis, intrusion detection, line crossing detection

General
Firmware VersionV5.4.51
Power Supply-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Consumption and Current12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Camera WeightΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)

Camera

Image Sensor1/2.5" Progressive Scan CMOS
Min. IlluminationColor: 0.01Lux @ (F1.2, AGC ON), 0.034Lux @ (F2.2, AGC ON), 0 Lux with IR on
Shutter Speed1/3 s to 1/100,000 s
Wide Dynamic Range120 dB
Day & NightIR cult filter with auto switch

Lens

Lens Type1.05 mm @ F2.2, horizontal field of view: 180°, vertical field of view: 180°
Lens MountM12

Video

Max. Resolution2560 × 1920
Main Stream50Hz: 25fps (2560 × 1920, 2048 × 1536, 1280 × 960) 60Hz: 30fps (2560 × 1920, 2048 × 1536, 1280 × 960)
Sub-Stream50Hz: 25fps (704 × 576, 352× 288) 60Hz: 30fps (704 × 480, 352× 240)
Video Compression Main stream: H.265/H.264,Sub-stream: H.265/H.264/MJPEG,
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeMain Profile/High Profile
H.265 TypeMain Profile
H.264+Support
H.265+Support
Region of Interest (ROI)Support 1 fixed region for main stream and sub-stream

Audio

Environment Noise FilteringSupport
Audio Sampling Rate16kHZ
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)

Network

APIONVIF (PROFILE S, PROFILE G), ISAPI
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6


Day/Night SwitchAuto/Schedule/Triggered by Alarm In (-S model supports)
DNR3D DNR
Image EnhancementWDR/3D DNR/Backlight Compensation/Defog
Image SettingsSaturation, brightness, contrast, and sharpness are adjustable via client software or web browser
Display ModeSupport 14 display modes in total (including display modes of different mount types): Fisheye View, 180 Panorama View, 4PTZ, Fisheye + 3PTZ, 360 Panorama View, 360 Panorama + PTZ, 360 Panorama + 3PTZ, 360 Panorama + 6PTZ, 360 Panorama + 8PTZ, 2PTZ, Fisheye + 8PTZ, Panorama View, Panorama + 3PTZ, Panorama + 8PTZ

Interface

AudioSupport
Alarm 1 alarm input, 1 alarm output (12VDC 30mA, max.)
On-board StorageBuilt-in microSD/SDHC/SDXC slot, up to 128 GB
Communication Interface1 RJ45 10M/100M self-adaptive Ethernet port

Deep Learning Function

DetectionMotion detection, dynamic analysis, intrusion detection, line crossing detection

General

Firmware VersionV5.4.51
Power Supply-10 °C to +50 °C (-14 °F to +122 °F), Humidity 95% or less (non-condensing)
Power Consumption and Current12 VDC, 0.5 A, max. 6 W PoE (802.3af, 36 V to 57 V), 0.2 A to 0.1 A, max. 7.5 W
Camera WeightΦ 119.9 × 41.2 mm (Φ 4.72″ × 1.62″)
