NEW

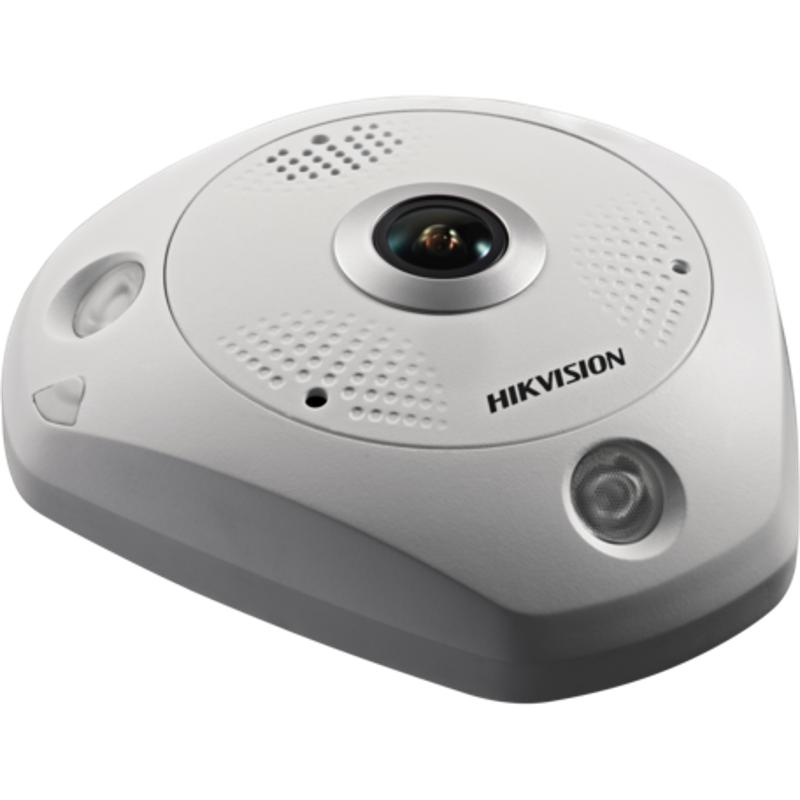

6 MP DeepinView Fisheye Network Camera

  • 360° zero-blind zone image: a fisheye network camera capable of providing a 360 degree panoramic image of its surveillance scene
  • Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
  • IP66/IK10 water resistant and vandal proof, preventing water ingress for outdoor use
  • Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
  • Build-in mic and speaker: the camera supports two-way audio for real-time audio security monitoring and communication

Available models:

DS-2CD6365G0-IVS(1.27mm)
DS-2CD6365G0-IS(1.27mm)

Specification

  • Camera
  • Image Sensor1/1.8" Progressive Scan CMOS
  • Max. Resolution3072 × 2048
  • Min. IlluminationColor: 0.047 Lux @ (F2.6, AGC ON), B/W: 0.0047 Lux @ (F2.6, AGC ON), 0 Lux with IR
  • Shutter Time1 s to 1/100,000 s
  • Day & NightIR Cut Filter
  • Lens
  • Focal Length & FOV1.27 mm, horizontal FOV 180° (wall mount), 360°(ceiling mount), 360°(table mount)
  • Lens MountM12
  • ApertureF2.6
  • DORI
  • DORID: 21.3 m, O: 8.5 m, R: 4.3 m, I: 2.1 m
  • Illuminator
  • Supplement Light TypeIR
  • Supplement Light RangeUp to 15 m IR range, 3 LEDs. Each LED is independently controlled.
  • IR Wavelength850 nm
  • Video
  • Main Stream50Hz: 25fps (3072 × 2048, 2048 × 2048, 1280 × 1280) 60Hz: 30fps (3072 × 2048, 2048 × 2048, 1280 × 1280)
  • Sub-Stream50Hz: 25fps (720 × 720, 720 × 480) 60Hz: 30fps (720 × 720, 720 × 480)
  • Video Compression Main stream: H.265+/H.265/H.264+/H.264 Sub stream: H.265/H.264/MJPEG
  • Video Bit Rate32 Kbps to 16 Mbps
  • H.264 TypeBaseline Profile/ Main Profile /High Profile
  • H.265 TypeMain Profile
  • Scalable Video Coding (SVC)H.265 and H.264 encoding
  • Region of Interest (ROI)4 fixed regions for main stream
  • Fisheye Display
  • Mount Type Support table, wall, and ceiling mounting
  • Decoding ModeSupport hardware decoding and software decoding
  • Display Mode18 display modes in total Software decoding: Ceiling mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 2PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, half sphere, cylinder Wall mount: fisheye view, panorama view, panorama + 3PTZ, panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ Table mount: fisheye view, 180 panorama view, 360 panorama view, 360 panorama + PTZ, 360 panorama + 3PTZ, 360 panorama + 6PTZ, 360 panorama + 8PTZ, 4PTZ, fisheye + 3PTZ, fisheye +8 PTZ, cylinder Hardware decoding: Ceiling mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Wall mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion Table mount: fisheye view, 180 panorama view, panorama view, 4PTZ, fisheye + 3PTZ, 4PTZ fusion
  • Audio
  • Audio TypeMono sound
  • Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
  • Audio Bit Rate64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-160Kbps(MP2L2)
  • Audio Sampling Rate8 kHz/16 kHz
  • Environment Noise FilteringYes
  • Network
  • ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
  • Simultaneous Live ViewUp to 20 channels
  • APIONVIF (PROFILE S, PROFILE G), ISAPI
  • User/HostUp to 32 users. 3 user levels, administrator, operator and user
  • SecurityPassword protection, HTTPS encryption, IEEE 802.1x port-based network access control, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF
  • Network StorageSupport microSD/SDHC/SDXC card (256 G), local storage and NAS (NFS,SMB/CIFS), ANR
  • ClientiVMS-4200, iVMS-4500, Hik-Connect, iVMS-5200
  • Web BrowserIE8+, Chrome31.0-44, Firefox 30.0-51, Safari8.0+
  • Image
  • Image SettingsSaturation, brightness, contrast, sharpness, AGC and white balance are adjustable by client software or web browser
  • Day/Night SwitchDay/Night/Auto/Schedule/Triggered by Alarm In (-S)
  • Wide Dynamic Range (WDR)Digital WDR
  • Image EnhancementBLC, HLC, defog, 3D DNR
  • Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format
  • Interface
  • Ethernet Interface1 RJ45 10M/100M/1000M self-adaptive Ethernet port
  • On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
  • Built-in Microphone2 built-in microphones
  • Built-in Speaker1 built-in speaker
  • Audio-S: 1 Audio input (line in, 3.5 mm), 1 audio output (line out, 3.5 mm)
  • Alarm -S: 1-ch alarm input, max. 12 V; 1-ch alarm output, max 24 VDC, 1 A
  • Reset KeyYes
  • Event
  • Basic Event Motion detection, video tampering alarm, network disconnected, IP address conflicted, illegal login, HDD full, HDD error
  • Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Audio exception detection
  • Deep Learning Function
  • People CountingCounts people entering, exiting and passing by separately Supports real-time uploading and uploading by statistic cycle Sends email reports on daily, weekly, monthly or annually basis Supports target filtering by height
  • Heat MapA graphic description of visits (calculated by people number or by dwell time) in a configured area. Two heap map report types are available, space heat map and time heat map line chart
  • Intersection AnalysisDetects and analyze flow in an intersection-like scene, and generate reports Support one intersection of up to 10 ways
  • General
  • Power12 VDC ± 20%, 1 A, max. 12.5 W PoE: 802.3at, class 4, 42.5 to 57 V, 0.4 A to 0.3 A, max. 15 W -S model: two-core terminal block Without –S model: Φ 5.5 × 2.1 mm coaxial power plug
  • DimensionWithout –V model: 167.4 × 152.8 × 50 mm (6. 6" × 6" × 2") With –V model: 167.4 × 152.8 × 55 mm (6. 6" × 6" × 2.2")
  • Approx. 1400 g (3.09 lbs)
  • Startup and Operating Conditions-40 °C to +60 °C (-40 °F to +140 °F). Humidity 95% or less (non-condensing)
  • General FunctionOne-key reset, anti-flicker, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
  • HeaterYes
  • Approval
  • Protection-V: IP67, IK10
*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Specification

*Product performance is based on testing in a controlled environment. Your results may vary due to several external and environmental factors.

Download Center

Data Sheet

User Manual

FAQ
Firmware
Firmware_V5.5.802_210926
Applied to:
DS-2CD6365G0-IVS(1.27mm)
DS-2CD6365G0-IS(1.27mm)
*For better user experience, we highly recommend you to update your device to the latest firmware asap.
