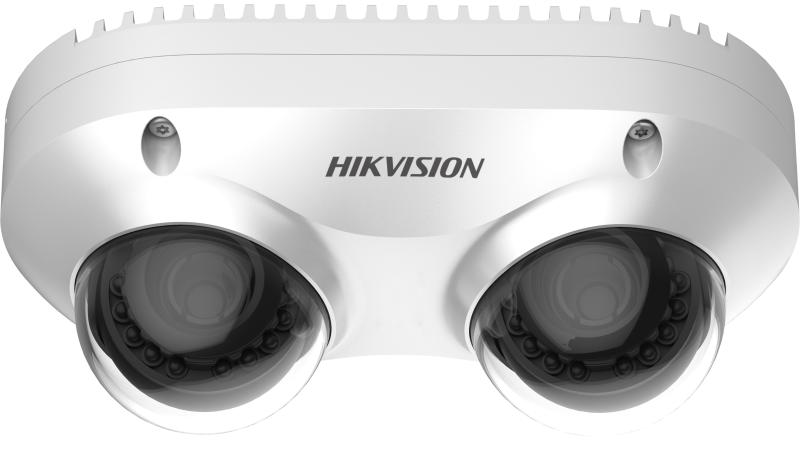

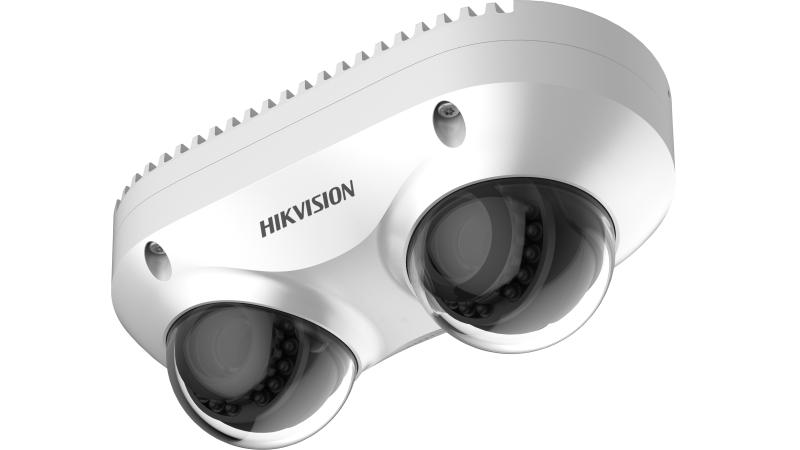

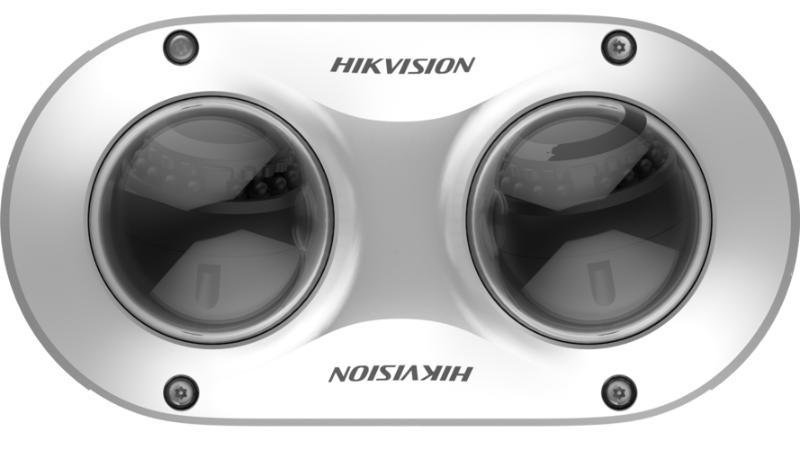

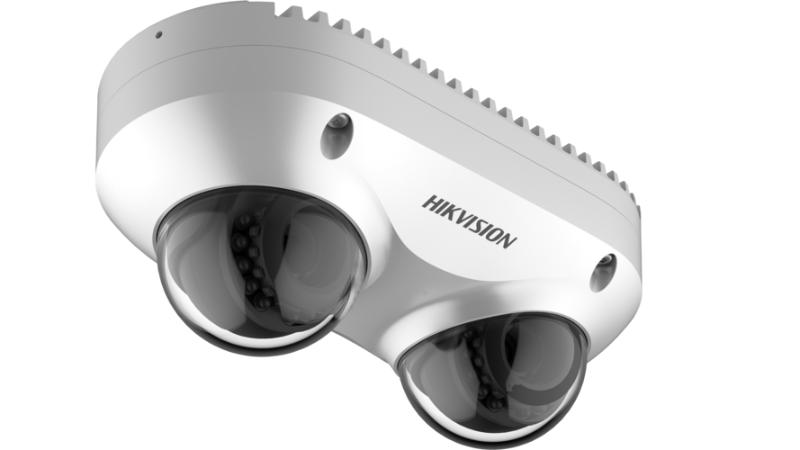

DS-2CD6D52G0-IH(S)

Dual-Directional PanoVu Camera

High quality imaging with 5 MP resolution
3D DNR technology delivers clean and sharp images
Efficient H.265 compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
A built-in heater provides ultra-low temperature start-up to -40℃
Water and dustresistant (IP67) and vandal proof (IK10)
Built-in microphone for real-time audio security
Easy installation with Power over Ethernet (PoE) technology

Available models:

DS-2CD6D52G0-IHS(2.8mm)

DS-2CD6D52G0-IH(2.8mm)

DS-2CD6D52G0-IH(4mm)

DS-2CD6D52G0-IH(6mm)

DS-2CD6D52G0-IHS(4mm)

DS-2CD6D52G0-IHS(6mm)

Camera
Image Sensor1/2.7" Progressive Scan CMOS
Max. Resolution2560 x 1920
Min. IlluminationColor: 0.009 Lux @ (F1.6, AGC ON), B/W: 0.0018 Lux @ (F1.6, AGC ON), 0 Lux with IR
Day & NightICR Cut
Shutter Time1s to 1/100,000 s
Angle AdjustmentP: -90 to 90°; T: 0 to 60° (2.8mm), 0 to 70° (4/6mm); R: 0 to 355°

Lens
Focal Length & FOV2.8mm @ F1.6 horizontal FOV 97°, vertical FOV 70°, diagonal FOV 128° 4 mm @ F1.6, horizontal FOV 79°, vertical FOV 57°, diagonal FOV 104° 6 mm @ F1.6, horizontal FOV 49°, vertical FOV 35°, diagonal FOV 63°
Lens MountM12
ApertureF1.6

Illuminator
Supplement Light TypeIR
Supplement Light RangeUp to 10m
Smart Supplement LightYes
IR Wavelength850nm

Video
Main Stream50Hz: 25fps ((2560 x 1920, 2048 x 1536) 60Hz: 30fps (2560 x 1920, 2048 x 1536)
Sub-Stream50Hz: 25fps (640 × 480, 704 × 576) 60Hz: 30fps (640 × 480, 704 × 480)
Third Stream50Hz: 25 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 576) 60Hz: 30 fps (1920 × 1080, 1280 × 720, 640 × 480, 704 × 480)
Video Compression H.265+/H.265/H.264+/H.264/MJPEG
Video Bit Rate32 Kbps to 16 Mbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Bit Rate ControlCBR/VBR
Scalable Video Coding (SVC)H.265 and H.264 support
Region of Interest (ROI)4 fixed regions for each stream

Audio
Audio TypeStereo
Audio Compression G.711/G.722.1/G.726/MP2L2/PCM
Audio Bit Rate64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
Audio Sampling Rate8 kHz/16 kHz/32kHz/44.1kHz/48kHz
Environment Noise FilteringYes

Network
ProtocolsTCP/IP, ICMP, HTTP, HTTPS, FTP, SFTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour, SSL/TLS
Simultaneous Live ViewUp to 20 channels
APIONVIF (PROFILE S, PROFILE G, PROFILE T), ISAPI, SDK, Ehome
Smooth StreamingNo
User/HostUp to 32 users3 levels: Administrator, Operator and User
SecurityPassword protection, complicated password, HTTPS encryption,802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, WSSE and digest authentication for ONVIF, RTP/RTSP OVER HTTPS, Control Timeout Settings, TLS 1.2
Network StorageNAS(NFS,SMB/ CIFS)
ClientiVMS-4200, Hik-Connect
Web BrowserPlug-in required live view: IE8+Plug-in free live view: Chrome 57.0+, Firefox 52.0+, Safari 11+Local service: Chrome 41.0+, Firefox 30.0+

Image Parameters SwitchYes
Image SettingsRotate, saturation, brightness, contrast, sharpness, white balance *Rotate and perimeter protection events (line crossing detection, intrusion detection, region entrance detection, region exiting detection) cannot be enabled at the same time.
Day/Night SwitchDay, Night, Auto, Schedule, Triggered by Alarm In (-S)
Wide Dynamic Range (WDR)120 dB
Image EnhancementBLC, HLC, Defog, EIS, 3D DNR
Privacy MaskYes
Picture OverlayLOGO picture can be overlaid on video with 128 × 128 24bit bmp format

Interface
Ethernet Interface1 RJ45 10M/100M self-adaptive Ethernet port
On-Board StorageBuilt-in micro SD/SDHC/SDXC slot, up to 256 GB
AudioWithout -S: 2 built-in mics -S: 2 built-in mics, 1 line in, 1 line out
Alarm -S: 1 input, 1 output (max. 36 VDC, 30mA)
RS-485-S: 1 RS-485 interface, half duplex
Reset KeyYes

Event
Basic Event Motion detection, video tampering alarm, exception (network disconnected, IP address conflict, illegal login, HDD full, HDD error)
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection Scene change detection, audio exception detection
LinkageUpload to FTP/NAS/memory card, send email

General
Power12 VDC, 0.9A, max. 11 W, Φ5.5 mm coaxial power plug PoE: 802.3af, 36V to 57V, 0.3 A to 0.2 A, max. 11 W
Dimension164.3 × 84.6 × 67.4 mm (6.5" × 3.3" × 2.7")
Package Dimension227 × 172 × 125 mm (8.9" × 6.8" × 4.9")
770g (1.7 lb.)
With Package Weight1053g (2.3 lb.)
Storage Conditions-40 °C to 60 °C (-40 °F to 140 °F). Humidity 95% or less (non-condensing)
Startup and Operating Conditions-40° to 60°, humidity 95% or less (non-condensing)
Language32 languages English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil)
General Functionmirror, privacy mask, anti-flicker, heart
HeaterYes

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
ProtectionIngress protection: IP67, IK10
