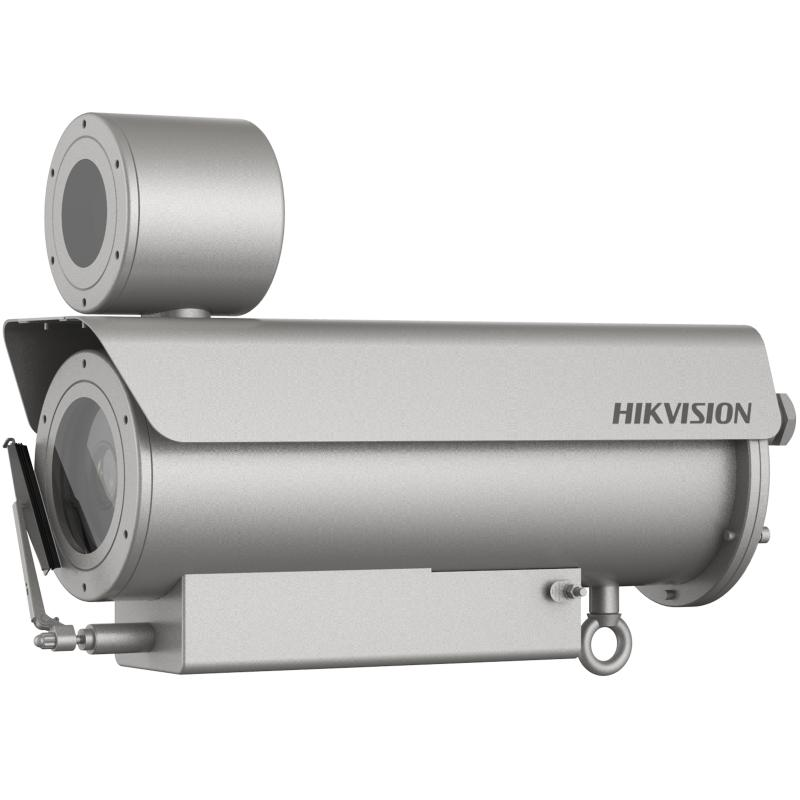

DS-2DB4236I-CWX(T5/316L)

EXIR 36x Bullet Explosion-proof Network Camera

Ex-mark: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db
1/1.8" progressive scan CMOS
Up to 1920 × 1080@30fps resolution
Min. illumination:Color: 0.0005 Lux @(F1.2, AGC ON)，B/W: 0.0001 Lux @(F1.2, AGC ON)，0 Lux with IR
36× optical zoom, 12× digital zoom
120 dB WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
Up to 200 m IR distance
Support H.265+/H.265 video compression

Available models:

DS-2DB4236I-CWX(T5/316L)

Camera
Image Sensor1/1.8" progressive scan CMOS
Max. Resolution1920 × 1080
Min. Illuminationcolor: 0.0005 Lux @ (F1.2，AGC ON) B/W: 0.0001 Lux @ (F1.2, AGC ON) ,0 Lux with IR
Shutter Speed1/1 s to 1/30000 s
Day & NightICR
Zoom36 × optical, 12 × digital
Slow Shutteryes

Lens
Focal Length6.0 to 216 mm, 36 × optical
FOVHorizontal field of view: 59° to 1.98° (wide-tele) Vertical field of view: 34.16° to1.12° (wide-tele) Diagonal field of view: 67.1° to 2.3° (wide-tele)
FocusAuto/Semi-automatic/Manual
ApertureF1.2
Zoom Speedapprox. 4.6 s

Illuminator
Supplement Light TypeIR
Supplement Light Range200 m
Smart Supplement Lightyes
IR Wavelength850 nm

PTZ
Park Actionyes
Scheduled TaskPreset
Power-off Memoryyes

Video
Main Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720)
Sub-Stream50 Hz: 25 fps (704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (704 × 480, 640 × 480, 352 × 240)
Third Stream50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240)
Video CompressionMain Stream: H.265+/H.265/H.264+/H.264 Sub-stream: H.265/H.264/MJPEG Third Stream: H.265/H.264/MJPEG
Video Bit Rate32 Kbps to 16384 Kbps
H.264 TypeBaseline Profile/Main Profile/High Profile
H.265 TypeMain Profile
Scalable Video Coding (SVC)Support
Region of Interest (ROI)8 fixed regions for each stream

Audio
Audio CompressionG.711alaw, G.711ulaw, G.722.1, G.726, MP2L2,PCM
Audio Bit Rate64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)
Audio Sampling Rate8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filteringyes

Network
ProtocolsIPv4/IPv6, HTTP, HTTPS, 802.1x, QoS, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour
Simultaneous Live View Up to 20 channels
APIOpen Network Video Interface (Version 19.12, Profile S, Profile G, Profile T), ISAPI, SDK, ISUP
Smooth Streamingyes
User/HostUp to 32 users, 3 user levels: administrator, operator, and user
SecurityPassword protection, complicated password, HTTPS encryption, 802.1X authentication (EAP-TLS, EAP-LEAP, EAP-MD5), watermark, IP address filter, basic and digest authentication for HTTP/HTTPS, RTP/RTSP over HTTPS, control timeout settings, security audit log, TLS 1.2, TLS 1.3, host authentication (MAC address)
Network StorageNAS (NFS, SMB/CIFS), auto network replenishment (ANR)
ClientiVMS-4200, HikCentral Pro, Hik-Connect
Web BrowserIE11, Chrome 57+, Firefox 52+, Safari 11+

Image Parameters SwitchYes
Image SettingsSaturation, brightness, contrast, sharpness, gain, and white balance adjustable by client software or web browser
Day/Night Switchauto
Wide Dynamic Range (WDR)120 dB WDR
SNR≥52dB
DefogOptical defog
Image EnhancementHLC/BLC/3D DNR/Defog/EIS/Regional Exposure/Regional Focus
Privacy Mask24 programmable polygon privacy masks, mask color or mosaic configurable

Interface
Ethernet Interface1 RJ45 10 M/100 M Ethernet
On-board Storagesupport microSD/microSDHC/microSDXC cards, up to 256 GB
Audio1-ch audio input and 1-ch audio output
Alarm1-ch alarm input and 1-ch alarm output
RS-4851 RS-485 (Half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive)

Event
Basic EventMotion detection, video tampering alarm, exception, alarm input and output
Smart EventLine crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection, audio exception detection
Alarm LinkageUpload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm output, trigger recording

Deep Learning Function
Face Capture1. Detects up to 10 faces simultaneously 2. Uploads face with background and closed-up face pictures 3. Support detecting, tracking, capturing, grading, selecting of face in motion, and output the best face picture of the face

General
Power100 VAC to 240 VAC & PoE+ (IEEE802.3at class4) Max. 25 W
Dimension513.2 × 169 × 308 mm (20.2"× 6.65" × 12.13")
19.8 kg (43.66 lb.)
MaterialSUS316L with anti-corrosion surface spray treatment
Operating Condition-40°C to 60°C (-40°F to 140°F)，Working Humidity≤ 90%
General FunctionAnti-flicker, heartbeat, mirror, flash log, password reset via e-mail, pixel counter, password protection, one-key reset, three streams
Wiperyes

Approval
EMCFCC (47 CFR Part 15, Subpart B); CE-EMC (EN 55032: 2015, EN 61000-3-2: 2014, EN 61000-3-3: 2013, EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6, 2016); KC (KN 32: 2015, KN 35: 2015)
SafetyUL (UL 62368-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 62368-1:2014+A11:2017); BIS (IS 13252 (Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
EnvironmentCE-RoHS (2011/65/EU); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection IP68, 6000V Lightning Protection, Surge Protection and Voltage Transient Protection
Explosion-Proof ProtectionEx-mark: ATEX: Ex II 2GD Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db; IECEx: Ex db IIC T6 Gb /Ex tb IIIC T80℃ Db
